DMP type power box
Silicon rectification
The DMP power box is a dedicated power source for various electromagnetic clutch/brake controllers. The DC voltage is easily obtained from standard commercial power sources.

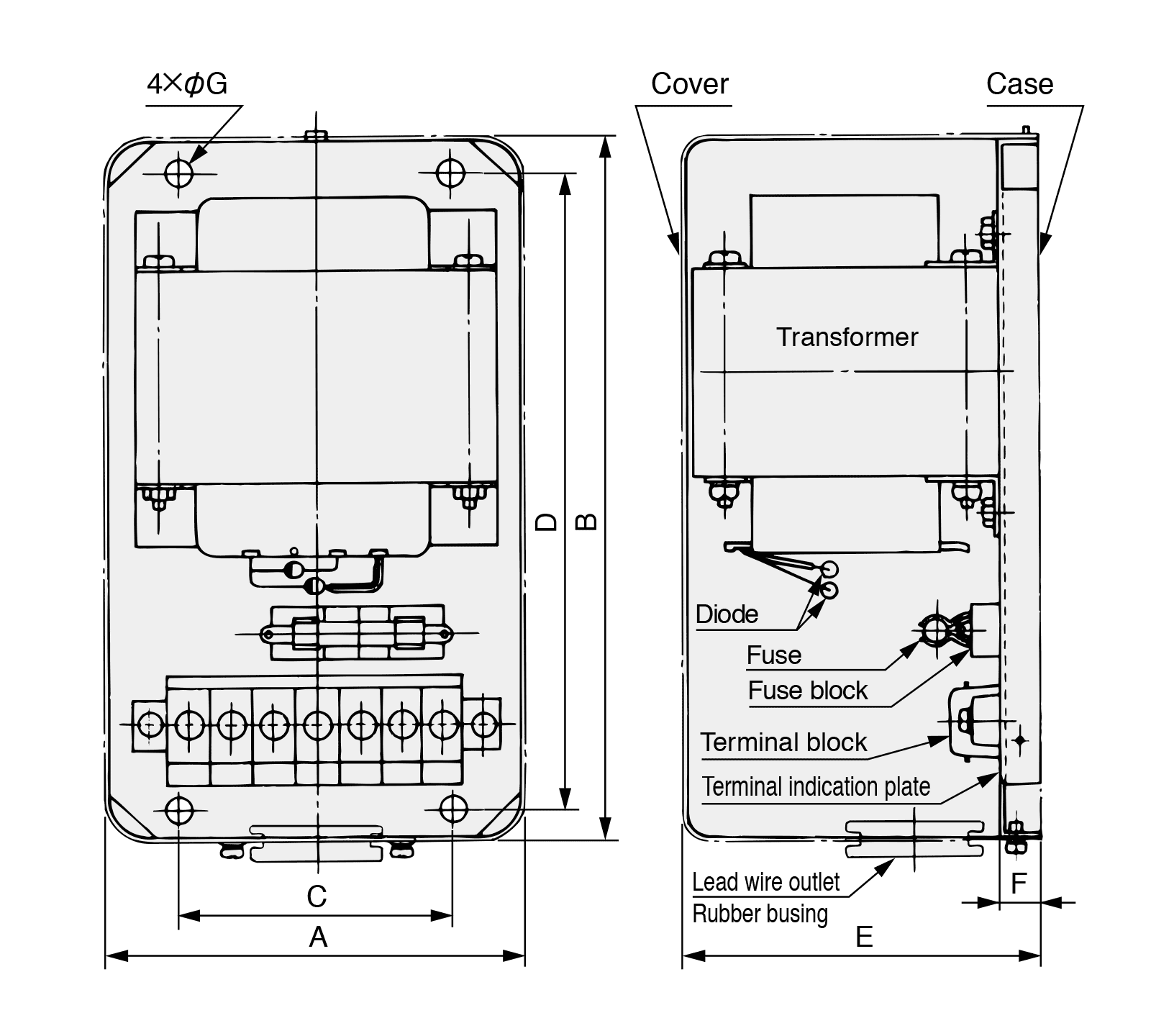

Dimensional outline drawing
Specifications
| Model | DMP-20/24A | DMP-63/24A | DMP-100/24A | DMP-200/24 | |
|---|---|---|---|---|---|
| DC capacity W | 20 | 63 | 100 | 200 | |
| Input voltage AC V | 100/110 200/220 |
100/110 200/220 |
100/110 200/220 |
200/220 | |
| Fuse capacity A | 1 | 3 | 5 | 3 | |
| Output voltage DC V | 24 | 24 | 24 | 24 | |
| Rating | Continuous | ||||
| Dimension | A | 95 | 100 | 100 | 120 |
| B | 130 | 170 | 170 | 195 | |
| C | 60 | 65 | 65 | 90 | |
| D | 115 | 153 | 153 | 178 | |
| E | 75 | 85 | 85 | 120 | |
| F | 10 | 10 | 10 | 5 | |
| G | 5.8 | 7 | 7 | 7 | |
| Weight kg | 1.4 | 2.5 | 3.3 | 5.0 | |
| Painting color | Munsell 7.5BG6/1.5 | ||||
1. Don't short circuit the output terminal of the power box.
2. Prepare a discharge circuit outside of the power box since the power box does not include its own.
3. Select a power box with capacity equal to 130% of the clutch/brake's power consumption (when using a discharge varistor).
4. The 200W model is constructed differently from the diagram above.

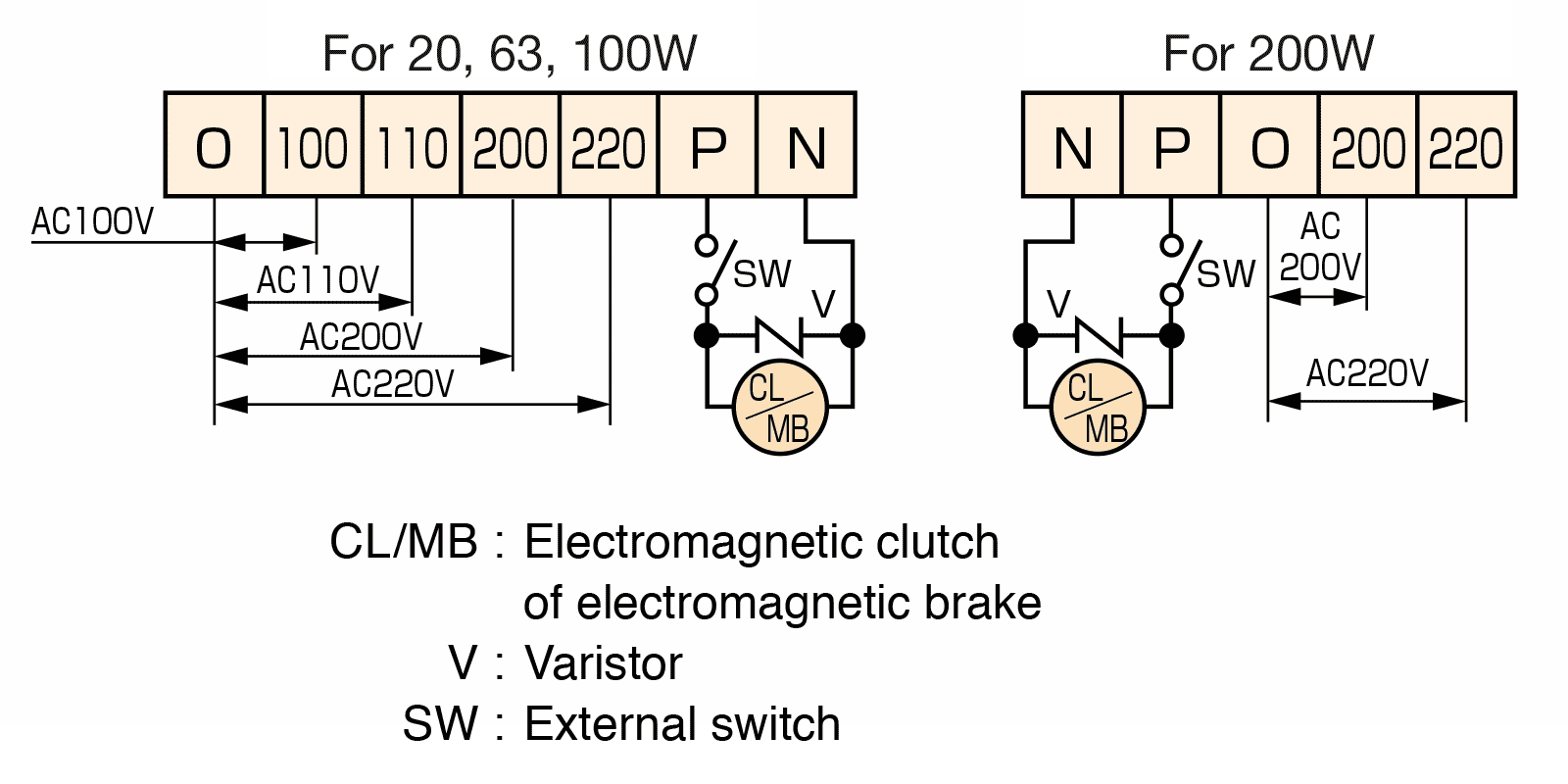

External connection diagram
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
