Small capacity power box
Silicon rectification

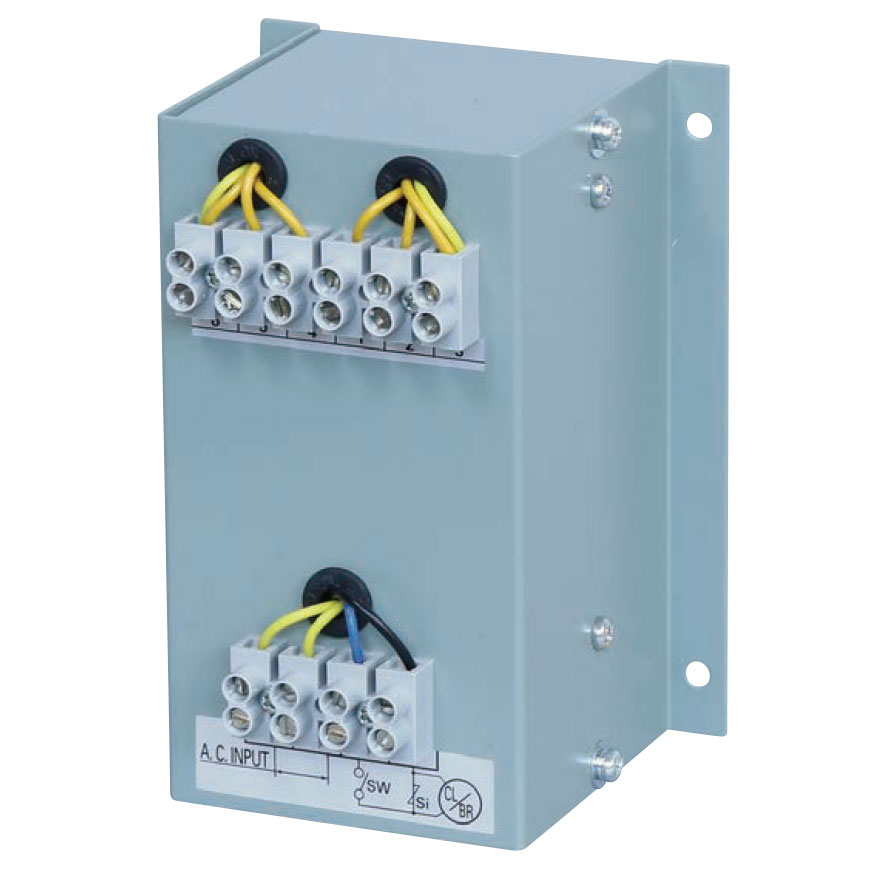

This compact power box includes a transformer and silicon rectifier to be used with small capacity clutch/brakes. You can obtain a DC power source for your clutch/brake by simply connecting this device to a commercial AC outlet.
![](https://www.sinfo-t.com/application/files/7416/5935/6891/batterybox-small-dmp-product.jpg)
Dimensional outline drawing
![](https://www.sinfo-t.com/application/files/8517/1401/7899/batterybox-small-dmp-fig-dimension.gif)
Specifications
Model | DMP-10/24 |
---|---|
Input voltage AC V |
100/110, 200/220 |
Fuse capacity A | 1 |
Output voltage DC V | 24 |
Capacity W | 10 |
Rating | Continuous |
Weight kg | 1.0 |
Painting color | Munsel 7.5BG6/1.5 |
1. Don't short circuit the output terminal of the power box
2. Prepare a discharge circuit outside of the power box since this unit does not include its own.
3. Select a power box with capacity equal to 130% of the clutch/brake's power consumption (when using a discharge varistor).

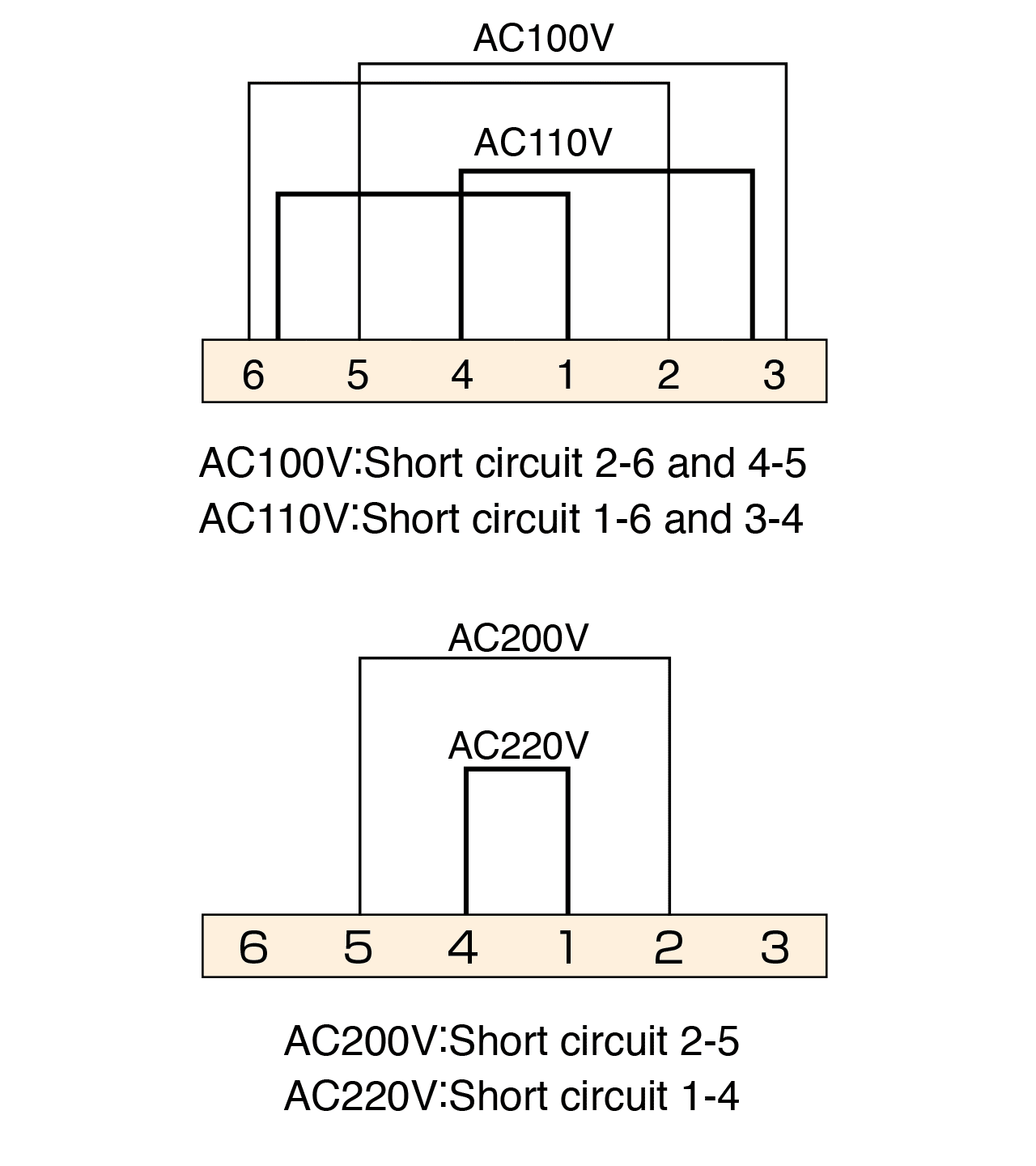

Input voltage switching connection diagram
AC input switching
![](https://www.sinfo-t.com/application/files/5417/1401/7913/batterybox-small-dmp-fig-input_output-ac.gif)

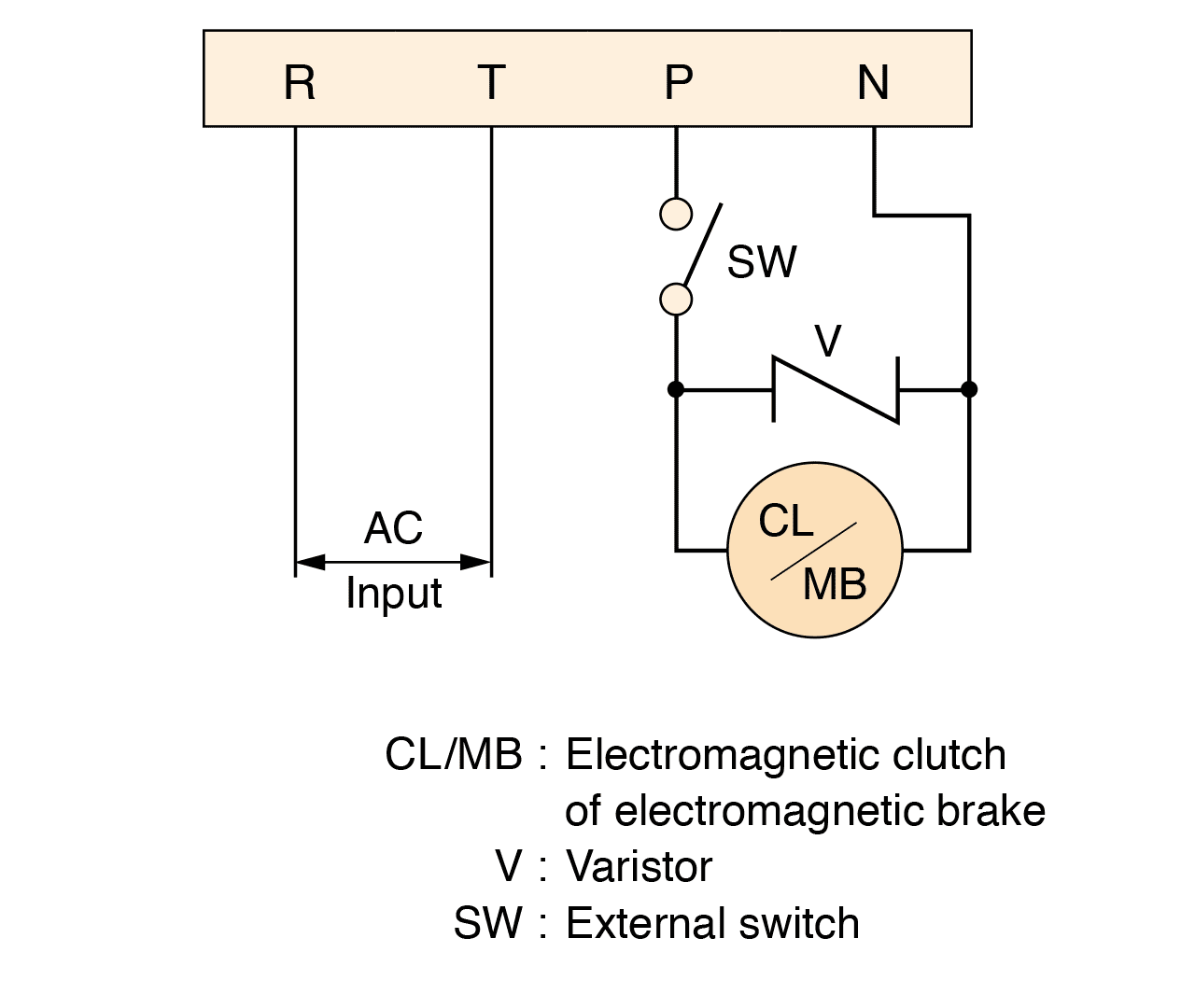

External connection diagram
![](https://www.sinfo-t.com/application/files/2717/1401/7933/batterybox-small-dmp-fig-input_output.gif)
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
All information is subject to change without notice due to quality improvement or modification.
