SF-650/BMF
Leaf spring system clutch
This electromagnetic clutch was specifically designed to be paired with engines. Whether it is used for mechanical power transmission, or the power branching and control system used to drive an engine, you can always expect durable, reliable performance. It uses a solid leaf spring driving system to eliminate engine-specific vibration, shock and torque pulsation and its versatile, compact size allows for easy mounting within even the tightest project constraints. It is widely used to drive engine-based agriculture, civil engineering and transportation machines.
| Model | SF-650/BMF |
|---|---|
| Static friction torque Nm | 130 |
| Rated voltage DC-V | 24 |
| Power consumption W (at 75ﾟC) | 26 |
| Weight kg | 6.0 |

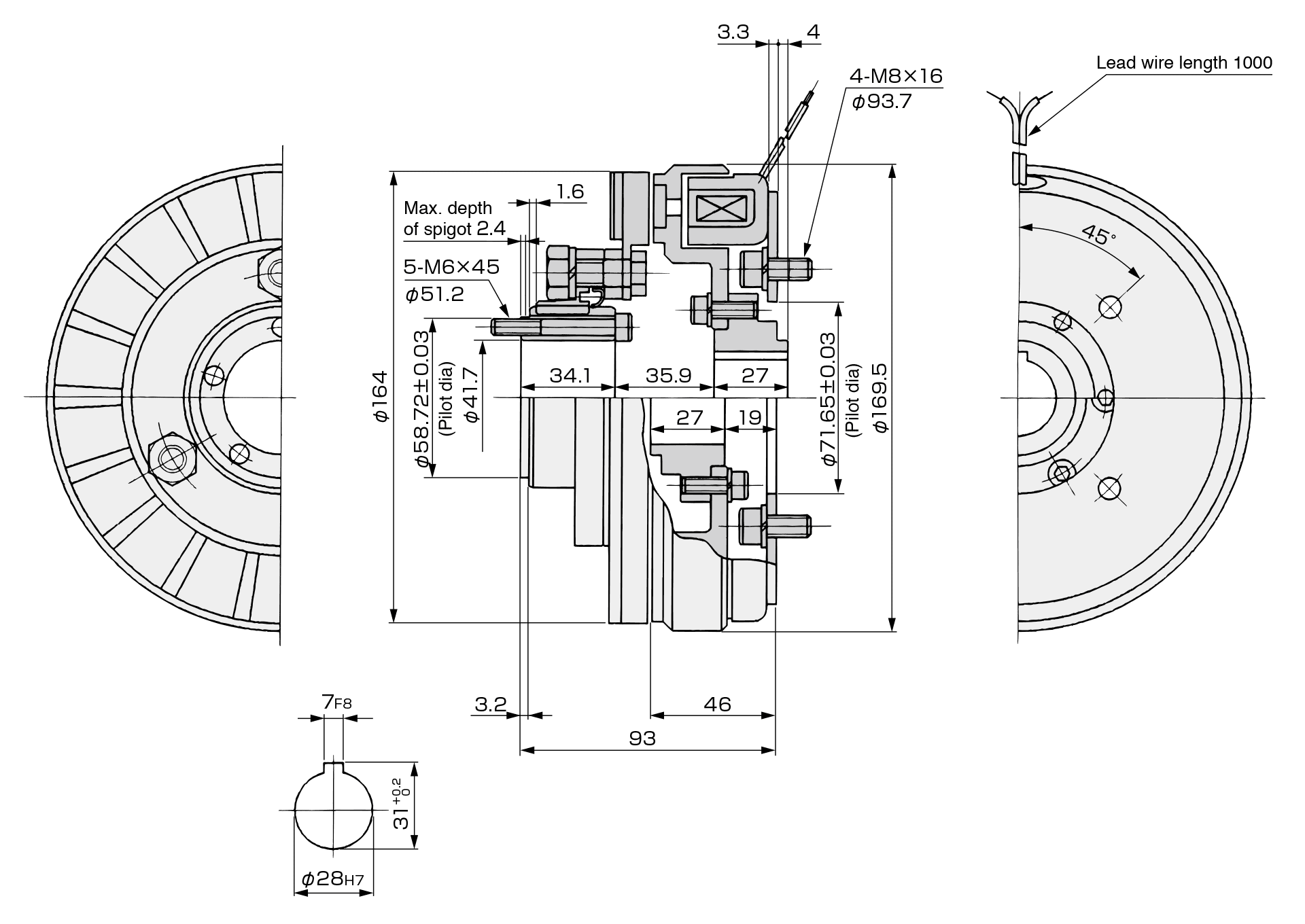

Unit: mm
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
All information is subject to change without notice due to quality improvement or modification.
