PMB-10

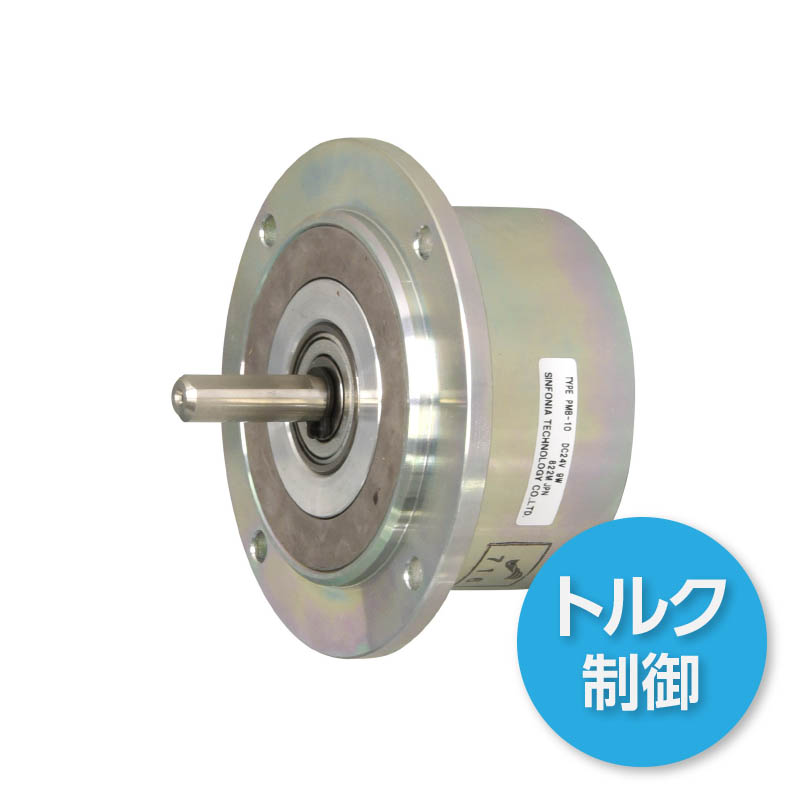

Naturally Cooled Micro Particle Brake
We use a special magnetic powder to transmit and control the torque on this series of clutches/brakes. The original powder and advanced structural design create incomparable performance in torque control and slip usage. Our unique materials and manufacturing expertise produce a high quality, nearly spherical powder, which dramatically improves the performance and reliability of our product, truly making this the ideal powder clutch/brake.
| Model | PMB-10 |
|---|---|
| Rated torque Nm | 1 |
| Rated voltage DC-V | 24 |
| Power consumption W (at 20°C) | 9 |
| Mass kg | 0.6 |
Unit: mm
| Diameter direction | |
|---|---|
| C | 75 |
| C1 | 66 |
| C2 | 54h9 |
| C3 | 7g7 |
| D | 56 |
| L | 61 |
| Shaft direction | |
|---|---|
| M | 33 |
| N | 25.8 |
| O | 4 |
| P | 3 |
| Shaft end | |
|---|---|
| Q1 | 22 |
| Q2 | 20 |
| t | 6.5 |
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
