JCC-5
Butt shaft clutch
Build-to-order product
A truly state of the art product whose performance and reliability sets it apart from other electromagnetic clutches/brakes. Through the use of our revolutionary "zero backlash auto gap technology" we are able to achieve unparalleled precision and operating life in an easily implemented dry-type single-plate driving electromagnetic clutches/brakes. Additionally, we have included innovations such as an asbestos-free facing on the friction plate, which meets and exceeds expectations with superior motion control performance.
| Model | JCC-5 |
|---|---|
| Static friction torque Nm | 50 |
| Rated voltage DC-V | 24 |
| Power consumption W (at 75°C) | 23 |
| Weight kg | 4.3 |

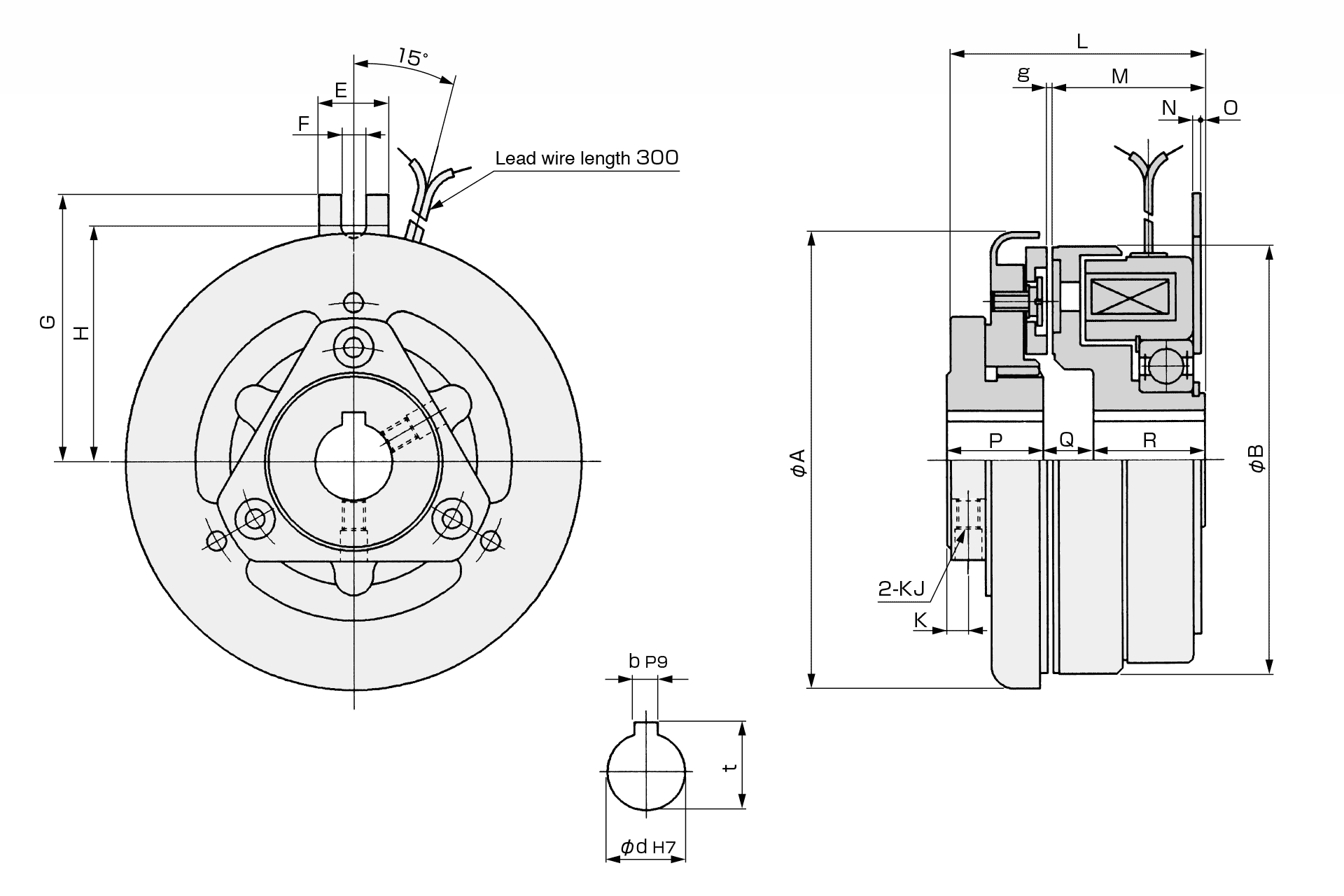

Unit: mm
| Diameter direction | |
|---|---|
| A | 145 |
| B | 135.6 |
| E | 20 |
| F | 6.5 |
| G | 82 |
| H | 74 |
| Shaft direction | |
|---|---|
| L | 74 |
| M | 43.5 |
| N | 2.6 |
| O | 1 |
| P | 28 |
| Q | 14 |
| R | 32 |
| g | 0.5 |
| Mounting | |
|---|---|
| K | 6 |
| KJ | M8 |
| Shaft hole | |
|---|---|
| d | 25 |
| b | 8 |
| t | |
