JEP-20
Butt shaft clutch/brake unit
This os SELC&B clutch/brake installed through shaft type compact structure unit. It is easy to apply power transmission function such as a pulley and a sprocket for both input and output shaft.
| Model | JEP-20 | |
|---|---|---|
| Clutch | Brake | |
| Static friction torque Nm | 200 | |
| Rated voltage DC-V | 24 | |
| Power consumption W (at 75℃) | 40 | 40 |
| Weight kg | 60 | |
The specification of built in clutch/brake is dedicated to JEP.
Unit: mm

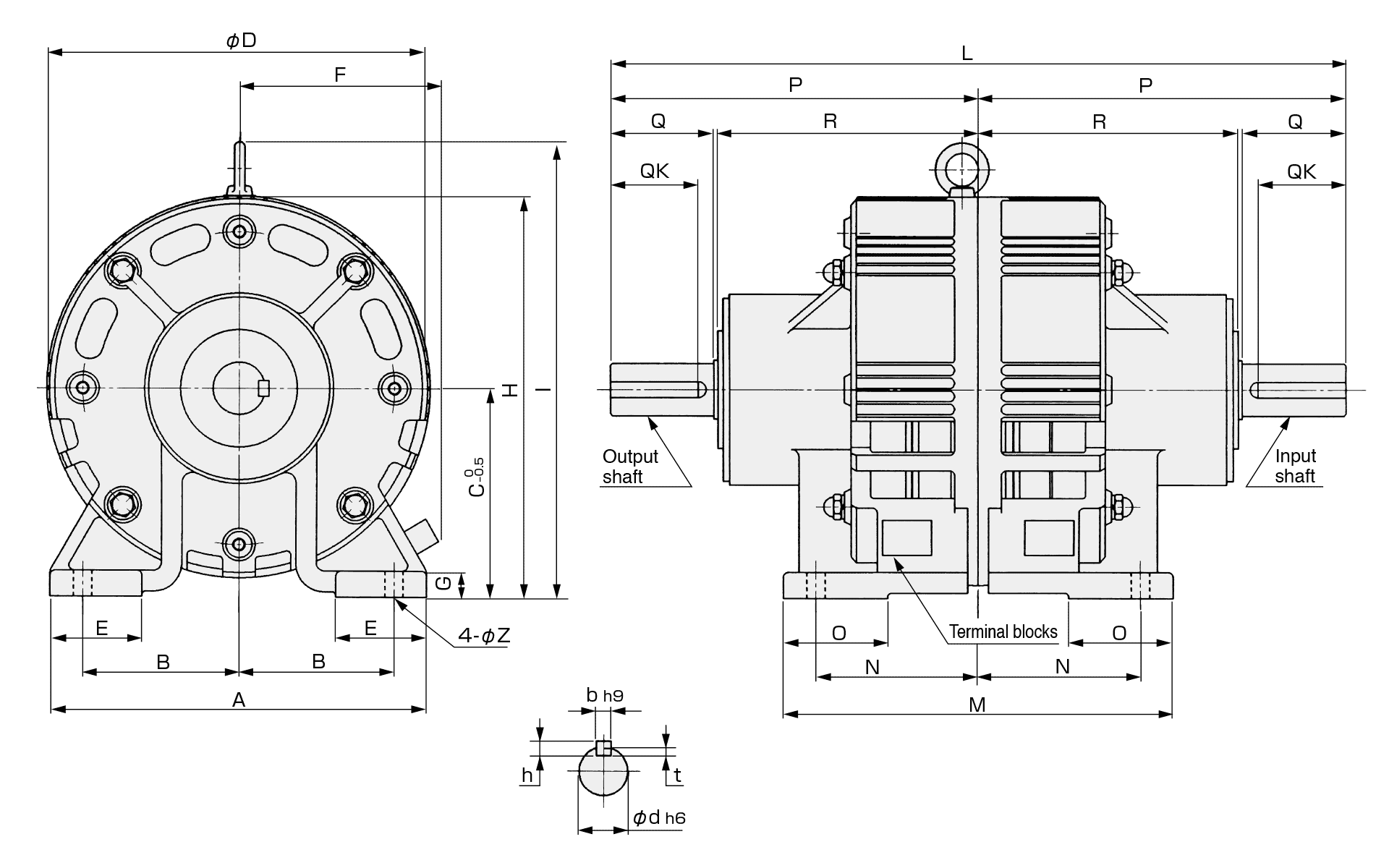

| Diameter direction | |
|---|---|
| A | 290 |
| B | 120 |
| C | 160 |
| D | 300 |
| E | 70 |
| F | 155 |
| G | 20 |
| H | 310 |
| I | 352 |
| Shaft direction | |
|---|---|
| L | 566 |
| M | 300 |
| N | 125 |
| O | 80 |
| P | 283 |
| R | 200 |
| Z | 14 |
| Shaft edge | |
|---|---|
| Q | 80 |
| QK | 68 |
| d | 40 |
| b | 12 |
| n | 8 |
| t | 5 |
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
All information is subject to change without notice due to quality improvement or modification.
