Customization Examples
Spring closed

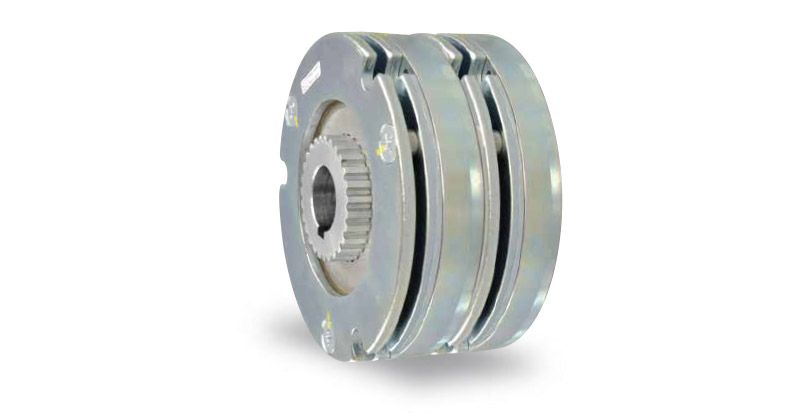

Double structure (double brake)
One body unit structure for two brakes
Feature
- Improved safety by double structure.
Major applications
Lift (elevator, escalator and lifter etc)）

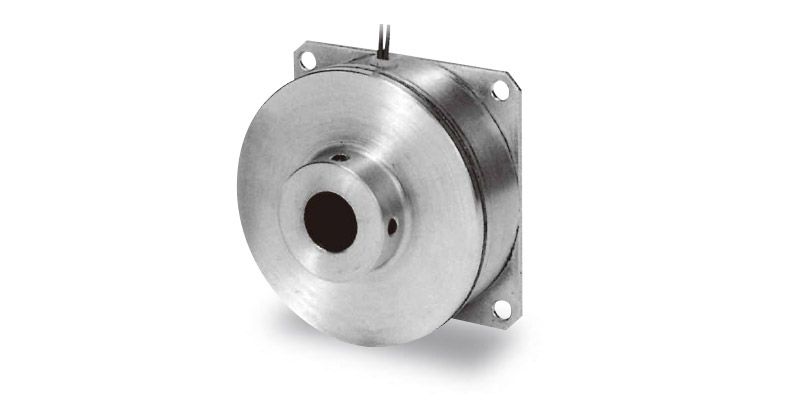

Small size brake (BBS type)
Original center-spring structure
Features
- Backlash-less.
- Completely non-contact when brake is released.
No wear, noise and vibration is generated when rotating. - Possible to design machinery at lower cost by simple and rational structure.
Major applications
Small motors
Medical equipment
Shutter opener/closer units

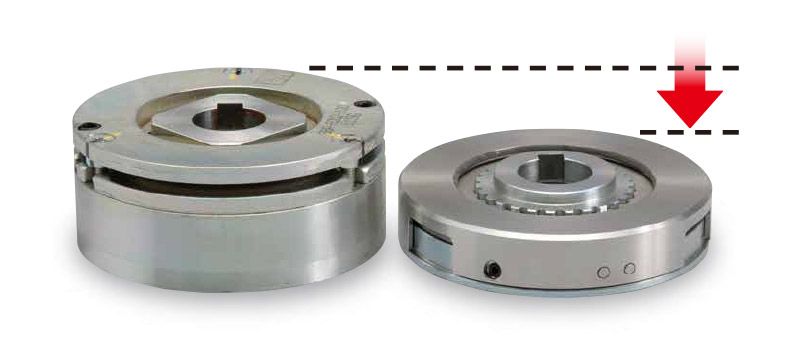

Ultra thin type (thinning of brake thickness)
Possible special design pursuing thinning
Feature
- Suitable for mounting limited designing space.
Major applications
Medical equipment
Robots
Motors
Noise reduction design
Applying noise reduction material such as o-ring and rubber cover
Feature
- Drastically reduced operation noise while a brake operates
Major applications
Medical equipment
Lifts
Motors

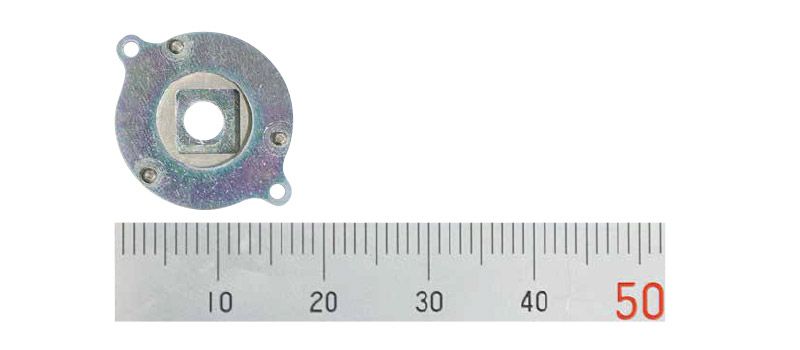

Smallest diameter designed product
Smallest class special designed product of approximately φ17mm
Feature
- Possible to downsize of precision machines such as precise joints of robots.
Major applications
Robots
Semiconductor equipment
Medical equipment
Motors

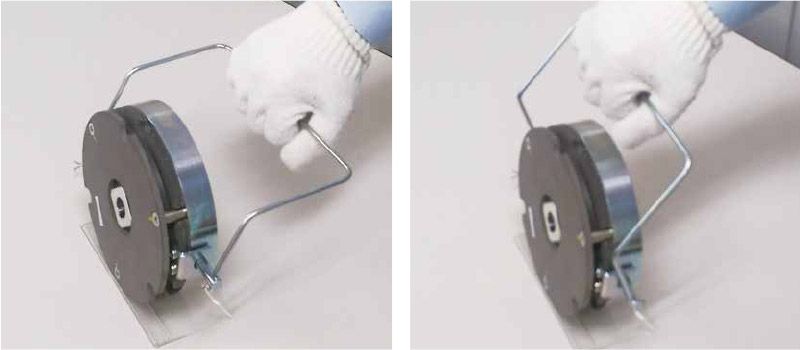

Manual release function
Applying a lever, and manual release screw holes
Feature
- Improved maintenanceability by becoming capable of releasing brake without power.
Major applications
Motors
Lifts
Shutter opener/closer units
Other various equipment
