Our non-excitation (negative actuation) spring close electromagnetic brakes use a reliable multi-spring mechanism to apply braking force after power is cut off. The design of this redundant system offers very high reliability, making it ideally suited for as a holding brake or emergency stop brake. SBM series is best used as an easily-mounted general-purpose motor.
| Model |
SBM-109-0020EZ |
| Static friction torque Nm |
3 |
| Rated voltage DC-V |
90 |
| Power consumption W (at 20°C) |
15 |
| Weight kg |
1.4 |

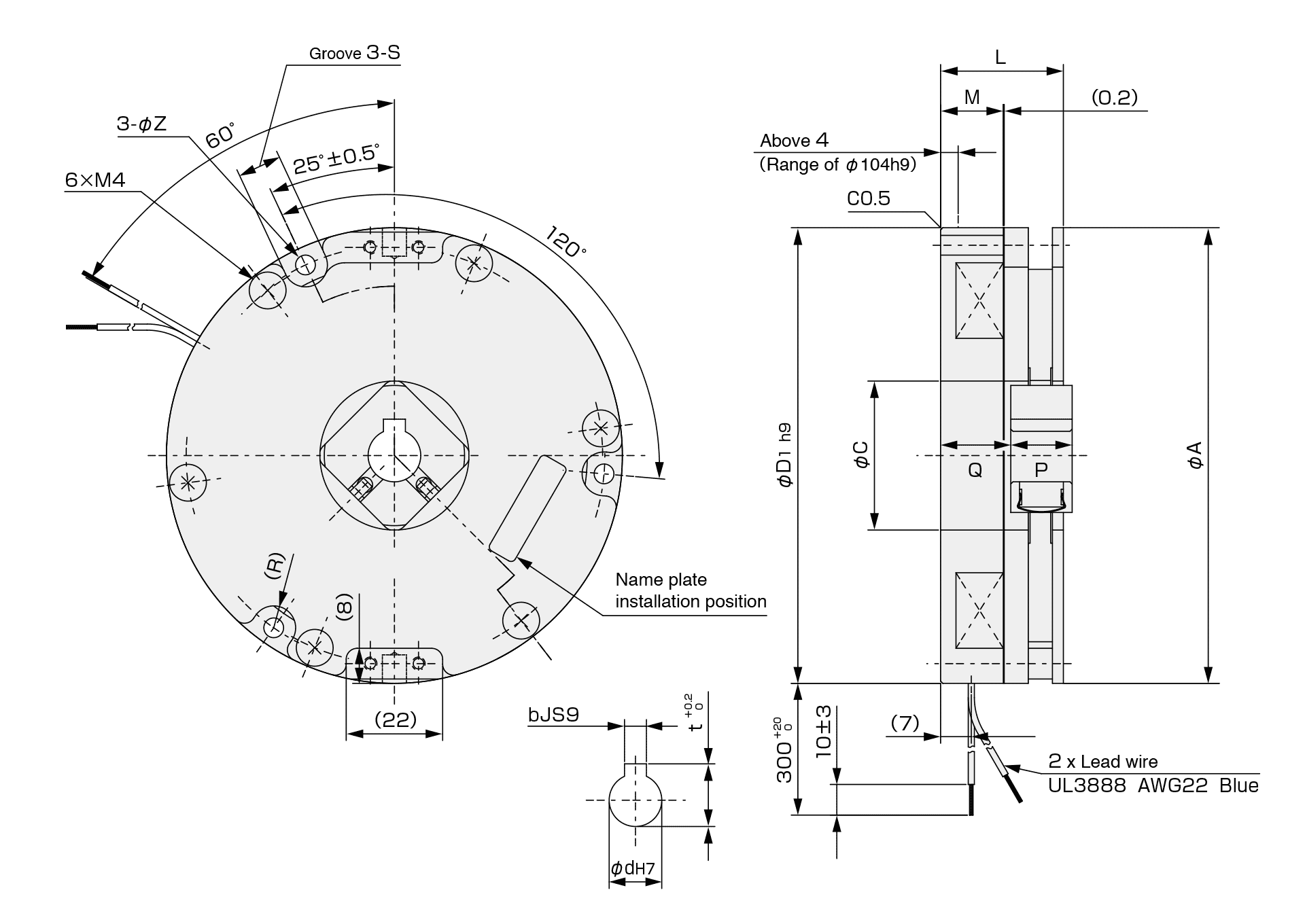

Unit: mm
| Diameter direction |
| A |
104 |
| C |
34 |
| D1 |
104 |
| Shaft direction |
| L |
28 |
| M |
14.3 |
| P |
14 |
| Q |
16 |
| Mounting |
| P.C.D |
96 |
| S |
10 |
| Z |
4.5 |
| Shaft hole |
| d |
12 |
| b |
5 |
| t |
14.3 |
