Clutches and Brakes

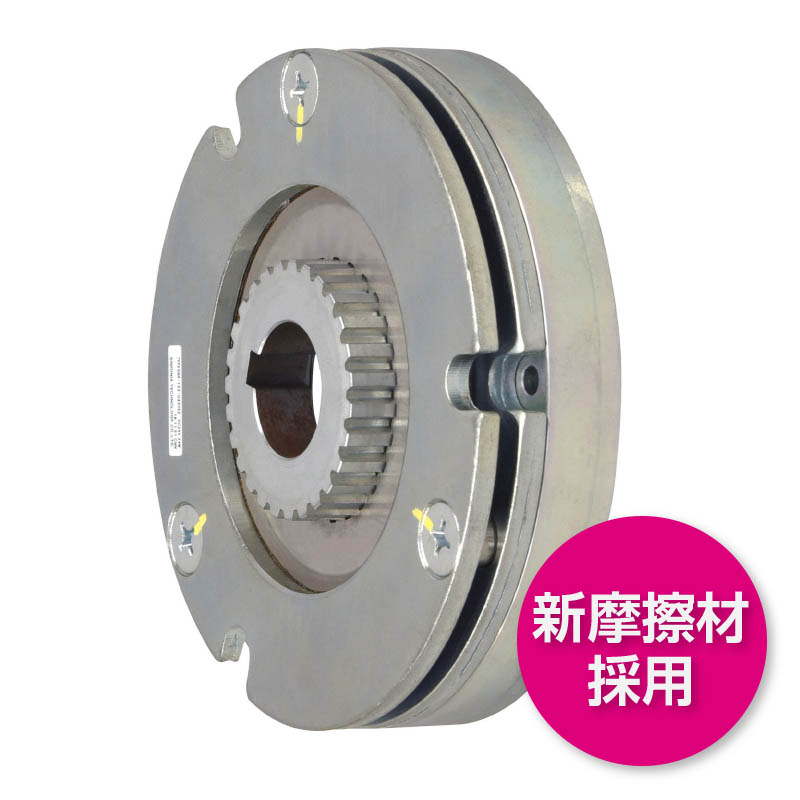

SBR-152-0450EZ

Non-excitation Brakes

Our non-excitation (negative actuation) spring close electromagnetic brakes use a reliable multi-spring mechanism to apply braking force after power is cut off. The design of this redundant system offers very high reliability, making it ideally suited for as a holding brake or emergency stop brake. SBR series is best suited to use in servomotors or robotics applications due to its ultra-thin, projection-free design.

Model SBR-150-0450EZ
Static friction torque Nm 45
Rated voltage DC-V 24
Power consumption W (at 20°C) 34
Weight kg 3.6

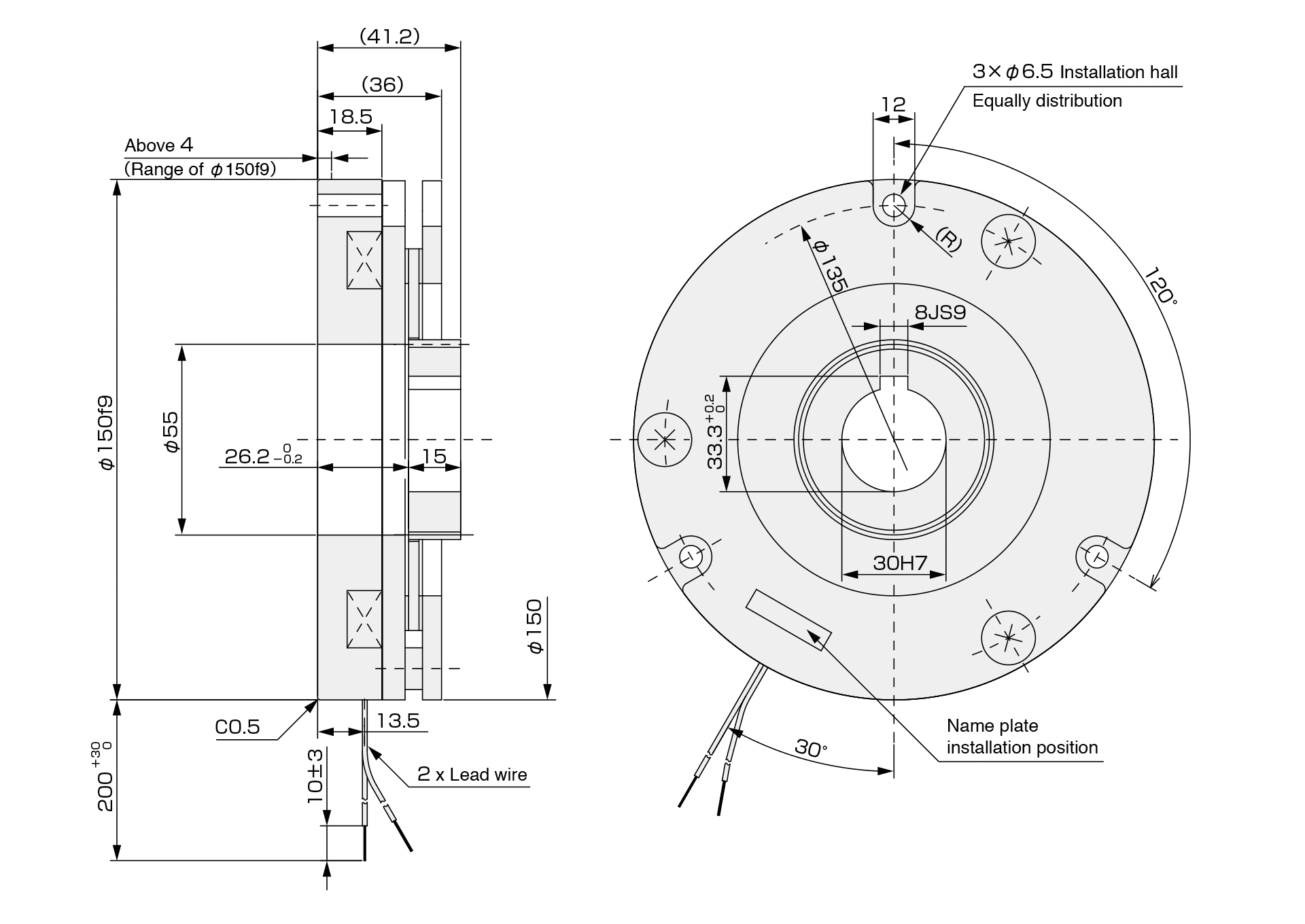

Unit: mm

CAD (2D/3D)

Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.

All information is subject to change without notice due to quality improvement or modification.

SBR-152-0450EZ
DXF50 KB

CAD Download
