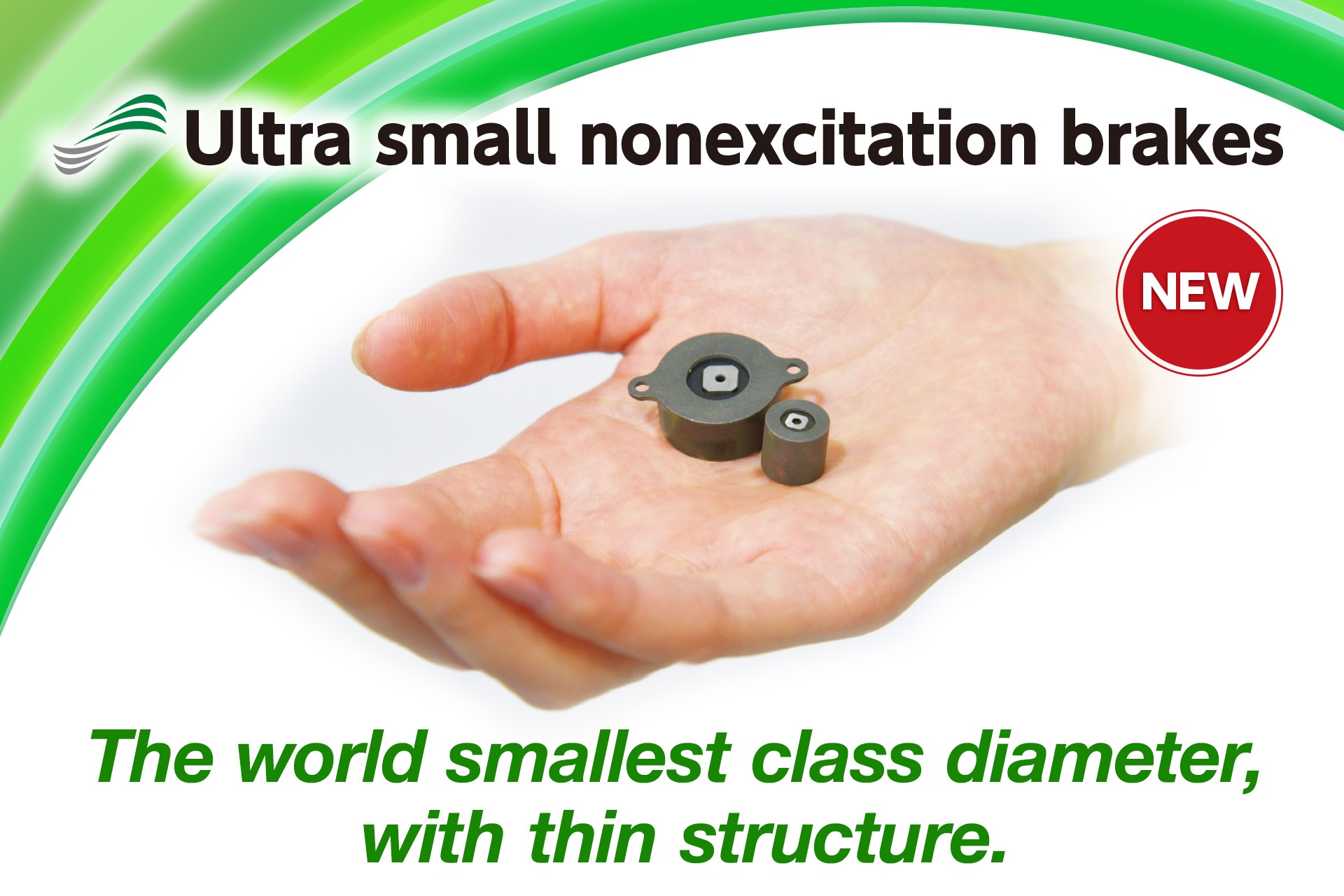

Ultra small nonexcitation brakes
SBR series
Features
- Suitable for complex and high performance robot arm.
- Realized the world smallest class with high torque by increasing winding wire occupancy without using screws.
- Save energy by improving electrical insulation.
- Works immediately after power down. Hence, suitable as a safety device against black out.
Application Example
Medical robot
Desktop robot
Service robot
Small size motor
Electric syrinder
Surface mounter
Dimensions/Specification
SBR10
Dimensions
Unit: mm
Example of Reference Specifications
| Item | Value |
|---|---|
| Static friction torque | 0.002Nm or more |
| Rated voltage | DC 24V |
| Power consumption | 0.57W |
SBR20
Dimensions
Unit: mm
Example of Reference Specifications
| Item | Value |
|---|---|
| Static friction torque | 0.005Nm or more |
| Rated voltage | DC 24V |
| Power consumption | 0.43W |
The specifications shown are for reference only. Please contact our sales for details.
