PCM controller
This controller can manually control a wide range of torque using the handy integrated dial. It is best suited to applications where torque is adjusted manually according to the change in roll diameter or for applications that require constant torque.
Features
- A wide range of torque control is possible
The output torque can be specified manually, or it can be used as a torque limiter, both supporting a wide range of torque values. - Easy handling and operation
The most appropriate torque can easily be set through voltage adjustment, using the integrated volt meter.

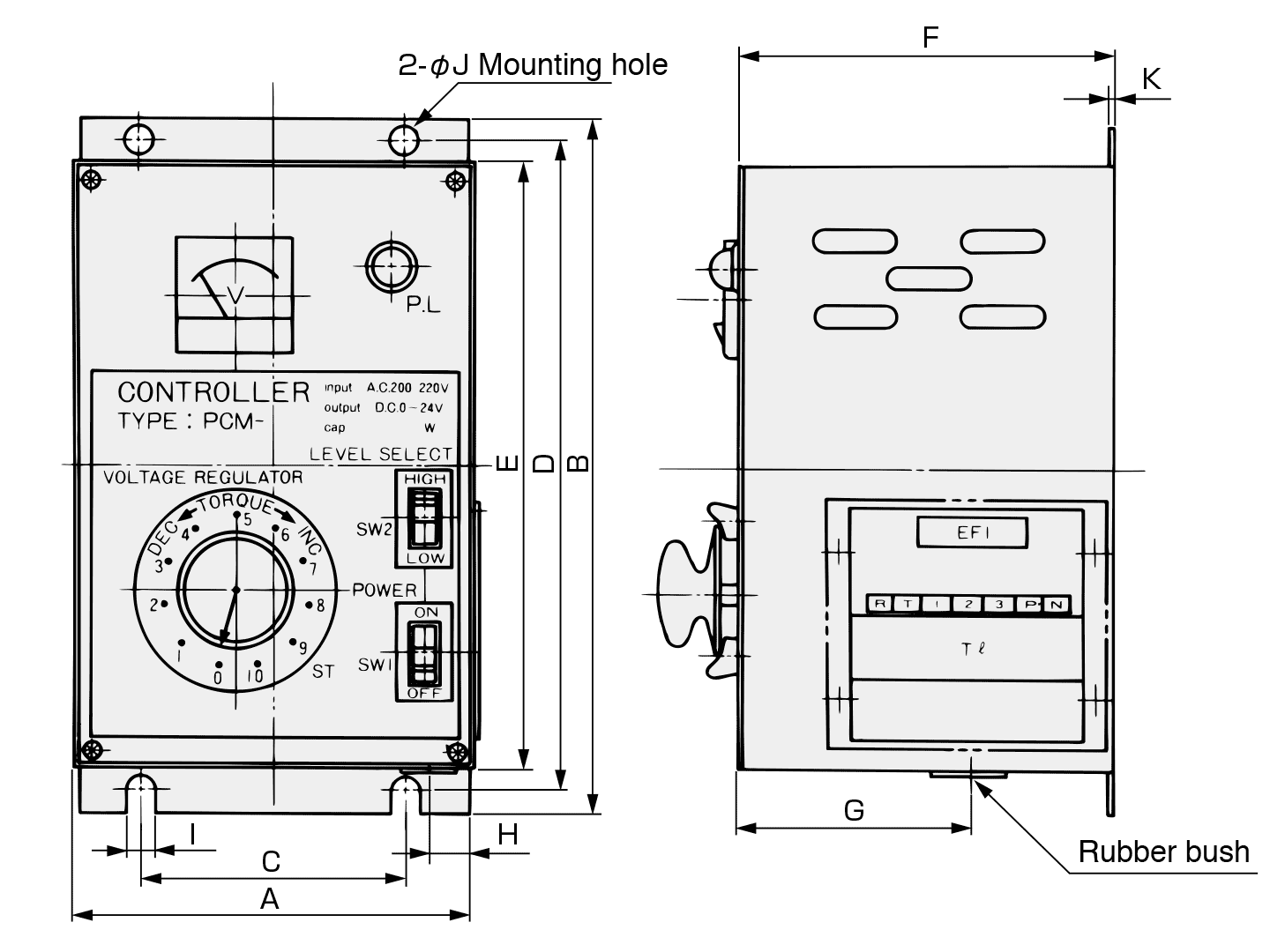

Dimensional outline drawings
Dimension table
| Model | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PCM-102 | 141 | 246 | 90 | 231 | 216 | 127 | 79 | 21 | 7 | 7 | 1.2 |
| PCM-202 | 141 | 260 | 90 | 245 | 230 | 150 | 77 | 21 | 7 | 7 | 1.2 |
Specifications
| Model | PCM-102 | PCM-202 |
|---|---|---|
| Input voltage | AC200/220V 50/60Hz |
AC200/220V 50/60Hz |
| Capacity | 100W | 150W |
| Output (Switchable) |
HIGH: DC0~24V LOW: DC0~12V |
HIGH: DC0~24V LOW: DC0~12V |
| Rated | Continuous | Continuous |
| Weight | 7.0kg | 8.8kg |
| Paint color | Munsell N-7 | Munsell N-7 |
| Compatible models | POC/POB-0.3~20 PRB-1.2~20 |
POC/POB-20、40~80 |

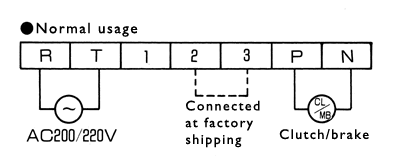

Input/Output connection diagram
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
All information is subject to change without notice due to quality improvement or modification.
