SNW type automatic controller
Tension variation is detected by a position sensor attached to the dancer roll, which is always kept in a fixed position. This allows high precision tension control through mechanical feedback sensing.
SNW-100SI SEP-11
Features
- High precision tension control is performed by keeping the dancer roll fixed and sensing through a pivot point sensor attached to the dancer arm.
- Stable tension control is possible under a wide range of torques by utilizing P (Proportional), I (Integral) and D (Differential) controls.
- This controller can be used with any machine due to the dancer roll position adjustment and the response sensitivity adjustment.
Dimensional outline drawing/Specifications
SNW automatic tension controller

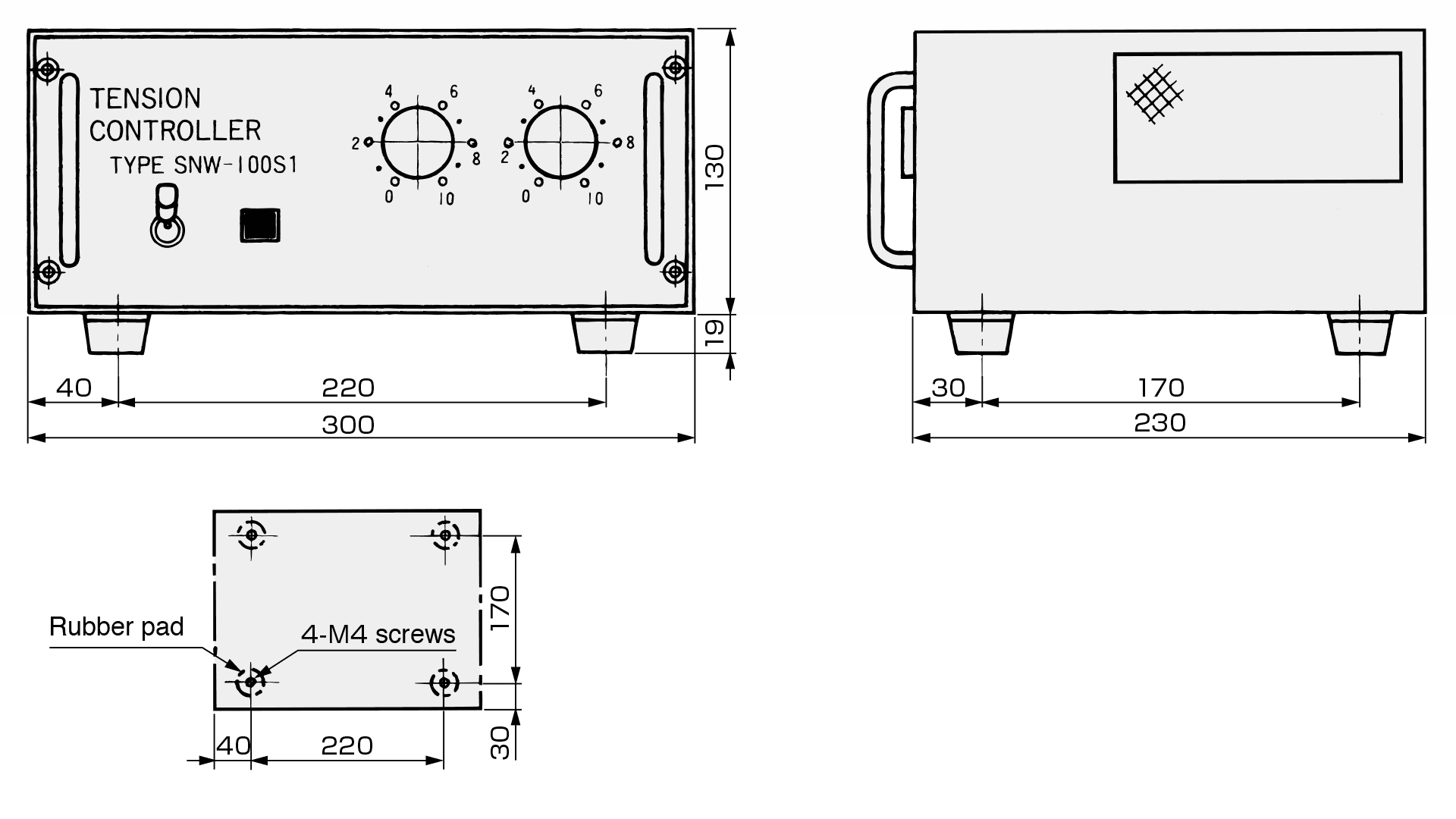

Dimensional outline drawing
Unit: mm
Use a fixing screw (M4×25) for mounting and affix it with rubber pads (to stabilize both the back and front)
Specifications
| Model | SNW-100S1 |
|---|---|
| Input voltage | AC 200/220V |
| Output voltage | DC0~24V |
| Rating | Continuous |
| Capacity | 60W |
| Structure |
Steel plate, floor standing, protective enclosure |
|---|---|
| Weight | 6.5kg |
| Paint color | Cover Munsell 7.5BG6/1.5 |
| Compatible model | Smaller than POC/POB/PTB-10 type All model of PRB/PMC type |
SEP type pivot sensor

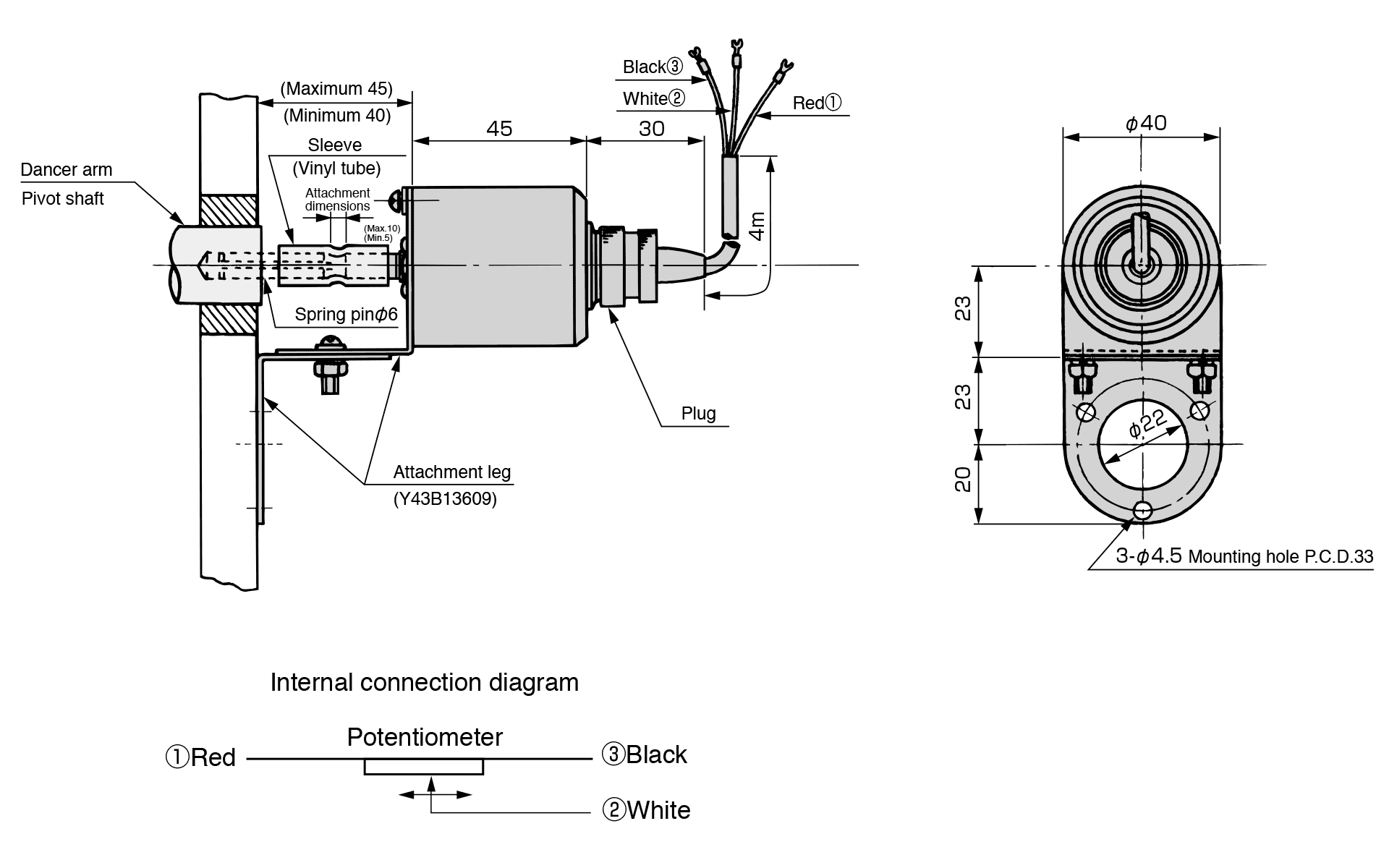

Dimensional outline drawing
Unit: mm
Specifications
| Model | SEP-11 |
|---|---|
| Capacity |
Maximum allowable capacity 0.2W |
| Voltage | Maximum allowable voltage 15V |
| Rotation angle |
Maximum rotation angle: 90° |
| Paint color |
Munsell 7.5BG 3/3.5 |
