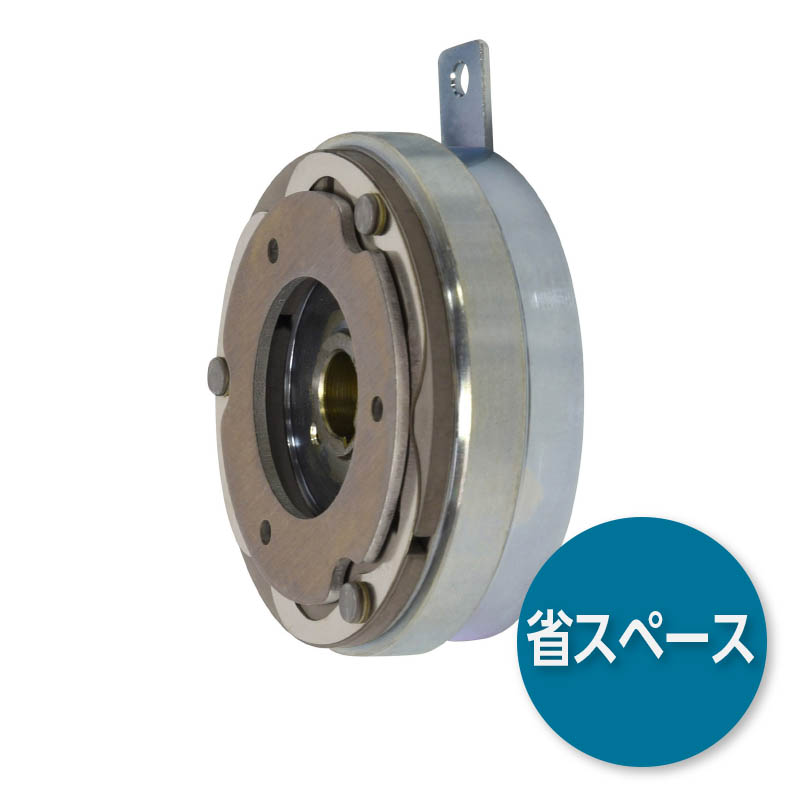

NC-0.6T
Non-hub clutch
Despite its unique thin design, this clutches/brakes is fully capable, allowing flexibility in your demanding designs such as easy mounting, small space etc. By utilizing a durable custom leaf spring, we are able to provide high precision, rapid response and ideal operating characteristics. This product truly offers exceptional size, with high performance and ease of mounting, allowing us to recommend its implementation in any kind of machine motion controls.
| Model | NC-0.6T |
|---|---|
| Static friction torque Nm | 6 |
| Rated voltage DC-V | 24 |
| Power consumption W (at 75°C) | 8 |
| Weight kg | 0.56 |
Unit: mm
| Diameter direction | |
|---|---|
| A | 70 |
| A1 | 58 |
| B | 74 |
| D1 | 34 |
| E | 14 |
| G | 50 |
| H | 45 |
| Shaft direction | |
|---|---|
| L | 29 |
| M | 23 |
| N | 1.6 |
| P | 2 |
| Q | 6 |
| R | 23 |
| g | |
| X | 3 |
| Mounting | ||
|---|---|---|
| PJ | P.C.D | 46 |
| Bolt | M3×6 | |
| Z | 4.5 | |
| Shaft hole | |
|---|---|
| d | 12 |
| b | 4 |
| t | 13.5 |
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
All information is subject to change without notice due to quality improvement or modification.
