TR-5000
Rotation coil clutch
Build-to-order product
Model | TR-5000 |
---|---|
Rated torque Nm | 50000 |
Rated voltage DC-V | 100 |
Power consumption W (at 75°C) | 175 |
Weight kg | 435 |
![](https://www.sinfo-t.com/application/files/5617/1402/4191/tooth-tr-fig-2500-5000.gif)

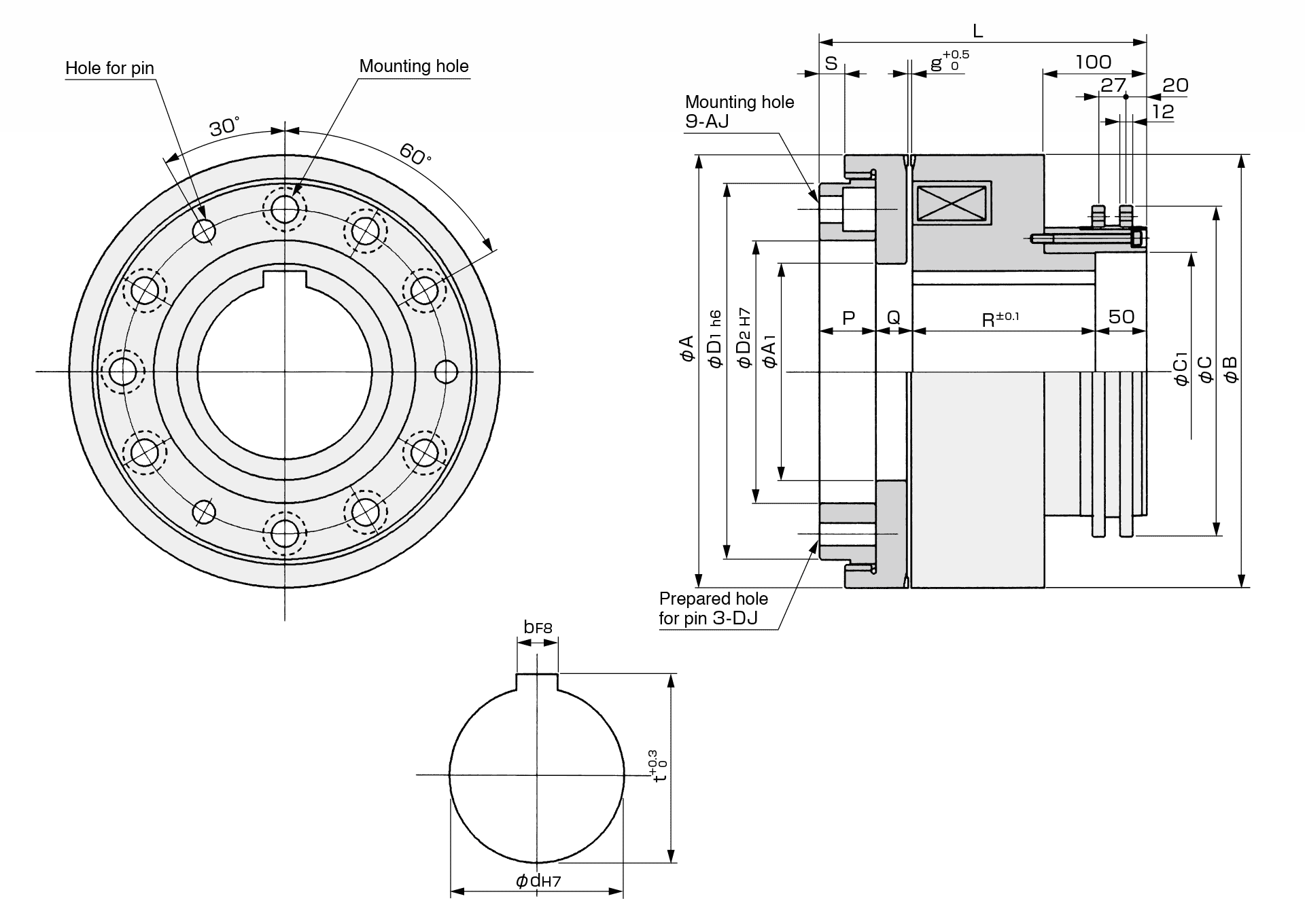

Unit: mm
Diameter direction | |
---|---|
A | 540 |
A1 | 260 |
B | 540 |
C | 380 |
C1 | 281 |
D1 | 460 |
D2 | 310 |
Shaft direction | |
---|---|
L | 391 |
P | 70 |
Q | 51 |
R | 220 |
S | 30 |
g | 2 |
Mounting | |
---|---|
P.C.D | 380 |
AJ | φ33Hole φ51 Depth of counterbore 40 |
DJ |
Shaft hole | |
---|---|
d | 200 |
b | 45 |
t | 214 |
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
All information is subject to change without notice due to quality improvement or modification.
