TZ-160
Ball bearing attachment clutch
Build-to-order product
| Model | TZ-160 |
|---|---|
| Rated torque Nm | 1600 |
| Rated voltage DC-V | 24 |
| Power consumption W (at 75°C) | 80 |
| Weight kg | 18 |
(Note) TZ-160 is for wet usage. (Shaft core lubrication). Please contact us for dry usage.

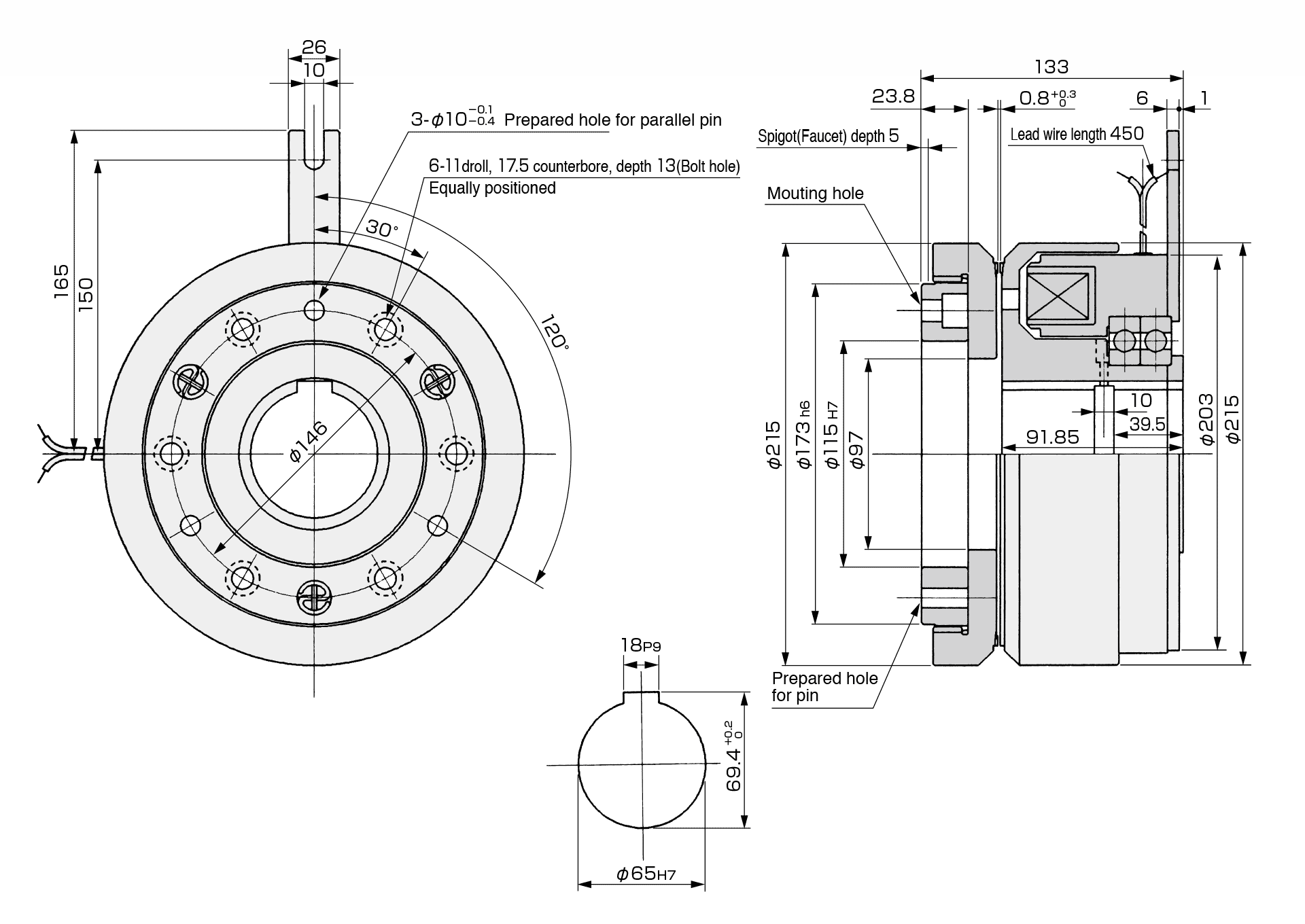

Unit: mm
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
All information is subject to change without notice due to quality improvement or modification.
TZ-160
DXF79 KB
