AR-250
Arm hold brake unit
| Model | AR-250 |
|---|---|
| Static friction torque Nm | 7 |
| Rated voltage DC-V | 24 |
| Power consumption W (at 75ﾟC) | 7 |
| Weight kg | 0.78 |
1. Please use all rods by pull directions

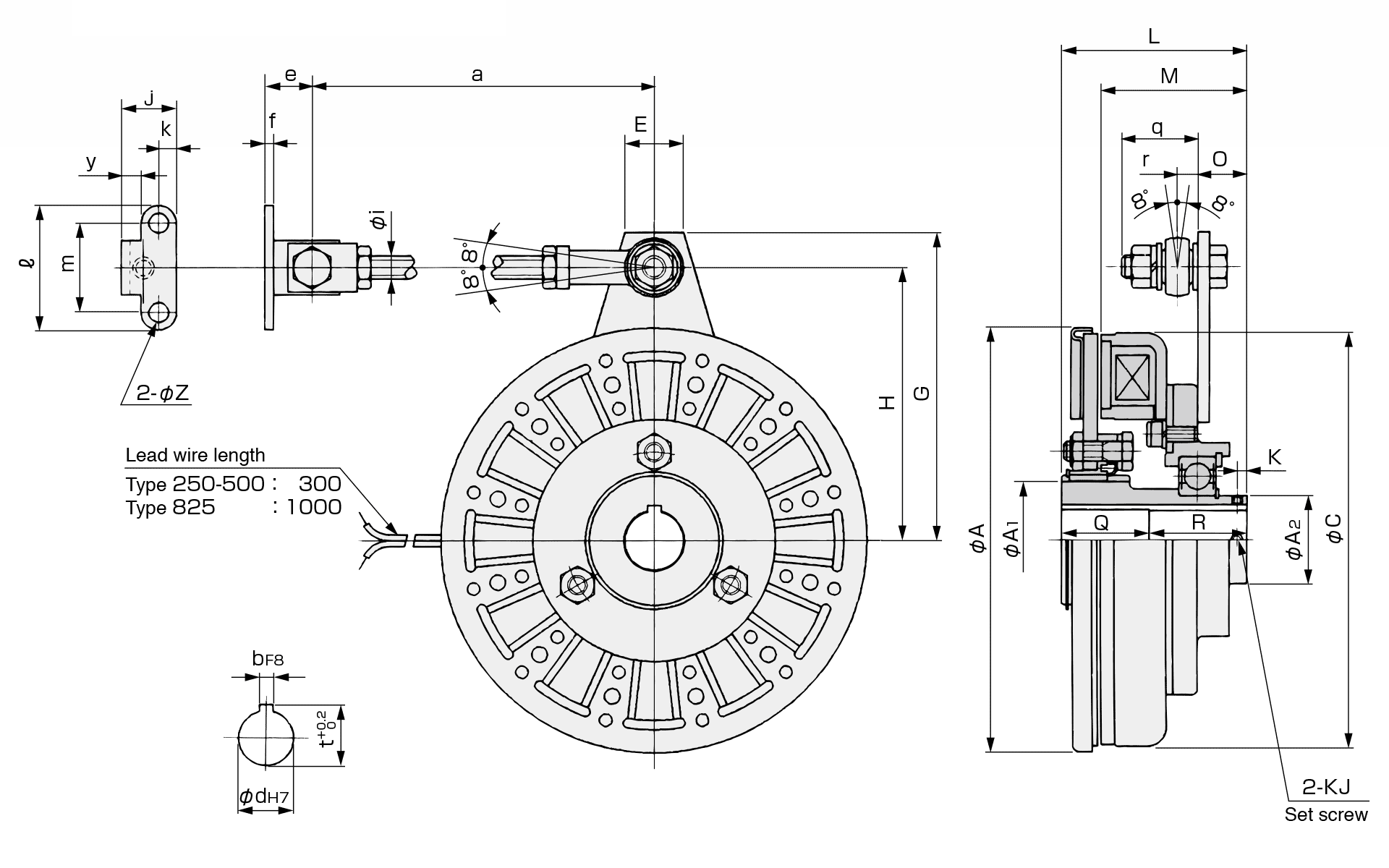

Unit: mm
| Diameter direction | |
|---|---|
| A | 64 |
| A1 | 26 |
| A2 | 22 |
| C | 67 |
| E | 20 |
| G | 54 |
| H | 45 |
| Shaft direction | |
|---|---|
| L | 47 |
| M | 36.3 |
| O | 6.2 |
| Q | 13 |
| R | 34 |
| Mounting | |
|---|---|
| K | 4.4 |
| KJ | M5 |
| Shaft hole | |
|---|---|
| d | 12 |
| b | 3 |
| t | 13 |
| Mounting lot | |
|---|---|
| a | 110 |
| e | 14 |
| f | 3.2 |
| i | 6 |
| j | 17 |
| k | 5 |
| l | 36 |
| m | 26 |
| q | 19.8 |
| r | 5.5 |
| z | 5 |
| y | 9.2 |
CAD
Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.
All information is subject to change without notice due to quality improvement or modification.
