Clutches and Brakes

SF-650/BMP

Through shaft clutch

With legendary performance and reliability in countless field-proven installations, Warner clutches/brakes can handle your toughest tasks. In addition to automatic gap adjustment that established Warner's position, high torque and impressive thermal dissipation characteristics, we also provide a compact size and ease of mounting to make your next machine automation endeavor a success. As one of the best electromagnetic clutches/brakes, it can easily withstand heavy, high frequency operation while still allowing highly precise on/off times.

Model

SF-650/BMP

Static shaft torque Nm 130
Rated voltage DC-V 24
Power consumption W (at 75°C) 26
Weight kg 6.2

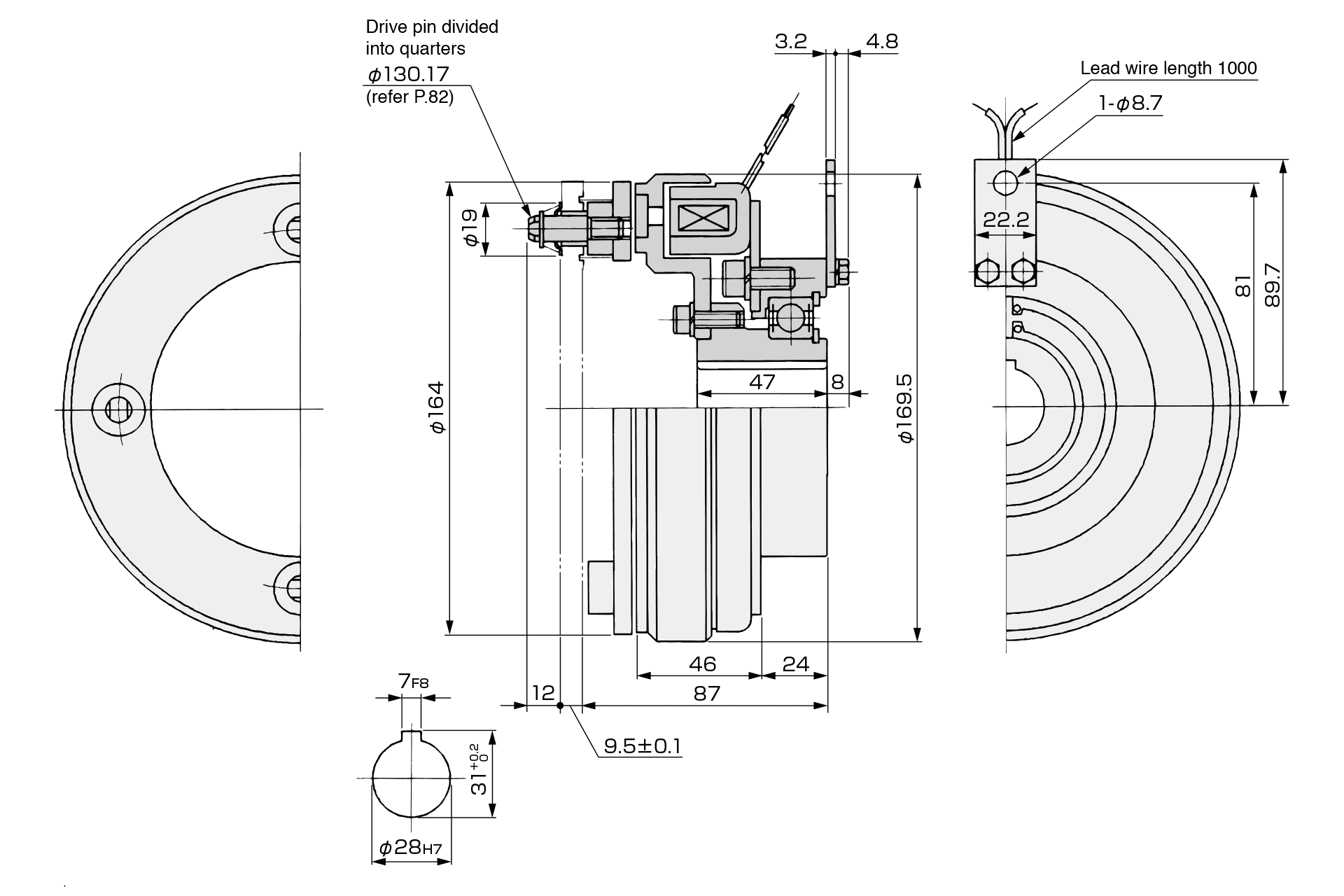

Unit: mm

CAD

Information obtained from CAD data should be treated as reference only, except for the dimensions shown.
Please note that bolt and tap positions may change.

All information is subject to change without notice due to quality improvement or modification.

SF-650/BMP
DXF80 KB
