ALPHA7 Series
Optional
Recommended amplifier manufacturer Fuji Electric Co.

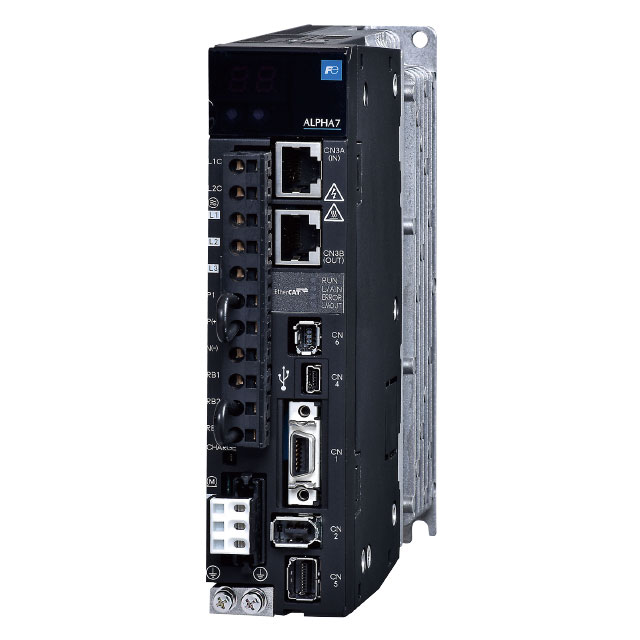

Servo amplifier ALPHA7
General-purpose interface-compatible VV type
| Model | RYT201F7-VV2-Z26 | RYT401F7-VV2-Z26 | RYT751F7-VV2-Z26 | RYT202F7-VV2-Z26 | RYT302F7-VV2-Z26 | RYT502F7-VV2-Z26 | |
|---|---|---|---|---|---|---|---|
| Power | Main circuit power supply |
3-phase/Single phase AC200~240V | 3-phase AC200~240V | ||||
| Control circuit power supply |
Single phase AC200~240V | ||||||
| Rated current | Arms | 1.5 | 2.7 | 4.9 | 12.6 | 18.0 | 30.0 |
| Maximum current | Arms | 6 | 12 | 18 | 37.8 | 54.0 | 90.0 |
| Control system |
All-digital sine-wave PWM system |
||||||
| Encorder feedback |
ABZ Pulse (differential input type)/Fuji Electric serial interface |
||||||
| CS signal feedback | *1 | ||||||
| Communication function |
USB |
Connects to a PC for parameter editing, monitoring, commissioning, etc. |
|||||
| Modbus-RTU | 1:n connection with upper controller are possible | ||||||
| Controll mode | Position control, Velocity control, Toque control (Switchable by parameters and I/O signals) | ||||||
| Applicable motor | ZMD-10026E-002 ZMD-10033E-004 |
ZMD-10073E-002 ZMD-20073E-A01 ZMD-10103E-002 ZMD-20026E-007 ZMD-20046E-001 |
ZMD-10126E-002 ZMD-10258E-004 |
ZMD-10408E-004 ZM-20A1-004 ZMD-40609E-001 |
ZM-25A1-003 ZMD-41009E-001 |
ZM-17A1-004 | |
*1. For CS signal feedback (motor drive with magnetic pole sensor), please consult with us.
Open Network (EtherCAT-compatible) VC type
| Model | RYT201F7-VC2-Z26 | RYT401F7-VC2-Z26 | RYT751F7-VC2-Z26 | RYT202F7-VC2-Z26 | RYT302F7-VC2-Z26 | RYT502F7-VC2-Z26 | |
|---|---|---|---|---|---|---|---|
| Power | Main circuit power supply |
3-phase/Single phase AC200~240V | 3-phase AC200~240V | ||||
| Control circuit power supply |
Single phase AC200~240V | ||||||
| Rated current | Arms | 1.5 | 2.7 | 4.9 | 12.6 | 18.0 | 30.0 |
| Maximum current | Arms | 6 | 12 | 18 | 37.8 | 54.0 | 90.0 |
| Control system |
All-digital sine-wave PWM system |
||||||
| Encorder feedback |
ABZ Pulse (differential input type)/Fuji Electric serial interface |
||||||
| CS signal feedback | *1 | ||||||
| Communication function |
EtherCAT*2 |
For command interface, parameter editing and monitoring |
|||||
| USB |
Connects to a PC for parameter editing, monitoring, commissioning, etc. |
||||||
| Controll mode | Position control, Velocity control, Toque control (Switchable by EtherCAT communication commands) | ||||||
| Applicable motor | ZMD-10026E-002 ZMD-10033E-004 |
ZMD-10073E-002 ZMD-20073E-A01 ZMD-10103E-002 ZMD-20026E-007 ZMD-20046E-001 |
ZMD-10126E-002 ZMD-10258E-004 |
ZMD-10408E-004 ZM-20A1-004 ZMD-40609E-001 |
ZM-25A1-003 ZMD-41009E-001 |
ZM-17A1-004 | |
*1. For CS signal feedback (motor drive with magnetic pole sensor), please consult with us.
*2. In the case of EtherCAT communication, the ESI file of Fuji Electric's servo amplifier must be imported and recognized by the host controller. please consult with us.
