Built in model "I" Style
HLRW series
Unique "I" shaped structure reduces stator weight
Improved HD Magnetic circuit
- Max thrust 1.5 times up
Maximum thrust per volume improved by approximately 1.5 times compared to our conventional product
New structure of "I" style
- Unique structure
"I" shaped structure is adopted where the stator is sandwiched between sliders.
Stator weight is reduced to 1/3 of the conventional weight. Mechanical rigidity is also increased by arranging the stator in a vertical configuration.- Reduction o mechanical loss
Offsetting magnetic attraction reduces the load on the linear guide and greatly reduces mechanical losses
New "I" style structure
Conventional structure

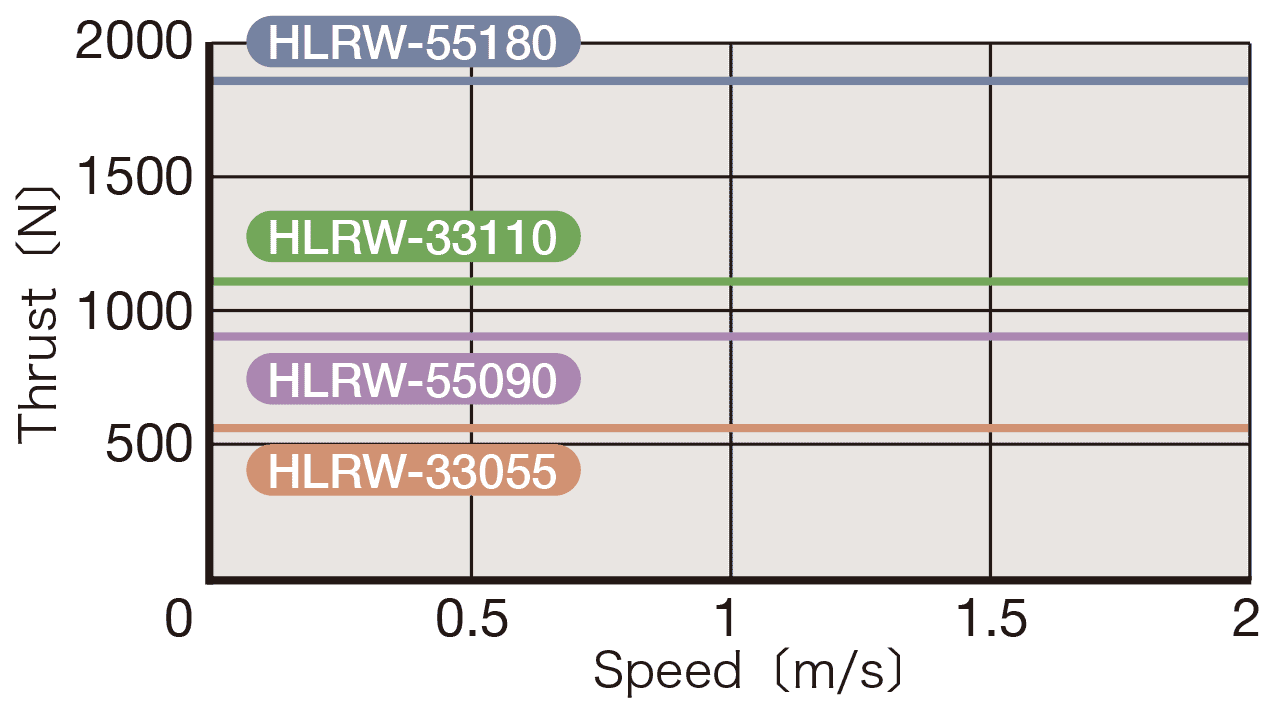

Thrust Characteristics
Standard Specification
| Item / Type | HLRW-33055 | HLRW-33110 | HLRW-55090 | HLRW-55180 |
|---|---|---|---|---|
| MaximumThrust (N) | 550 | 1100 | 900 | 1800 |
|
Continous Thrust (N) |
220 | 440 | 380 | 750 |
|
Maximum winding current (Arms) |
18 | 36 | 28.5 | 57 |
|
Maximum Speed (m/s) |
2 | |||
|
Sensor Resolution (kg) |
3.4 | 6.7 | 5.1 | 10.1 |
|
Movable Part Weight (kg/m) |
||||
Environment (Common in all types)
| Ambient temperature | During operation: 0 to 40°C During storage: -15 to +70°C |
|---|---|
| Humidity | 80%RH or less (no condensation) |
| Atmosphere | Free from corrosive gas or dust (in house use) |
| Vibration | 9.8m/S2 or less |
| Elevation | 1,000m or less |
