Parts Feeders

C10 Series

C10 Series For General-purpose Parts Feeders/For Mini Parts Feeders

Digital control operated in ‘Analog’ way

A completely new type of digital controller that can be used with the full line-up of feeders, from high frequency mini parts feeders to small electromagnetic feeders and large size models. With ‘analog-style’ operation it can be adjusted very swiftly.
With an auto-tuning function that eliminates the need for frequency adjust-ment, and convenient digital settings and display, drive units can be operated to their full potential.

Features

  1. Auto-tuning function eliminates leafspring adjustment (C10-1VFEF, 3VFEF, 5VFEF)
    This digital equipment has a special advanced vibration frequency auto-tuning function. It automatically tracks resonance point changes not only from changes to input volume of workpieces, but also from mechanical changes over time, to deliver optimal vibration at all times. No leaf-spring adjustment or even frequency adjustment is necessary, thereby boosting operation efficiency and saving energy.
  2. Digital setting and display makes settings easy to manage

    Amplitude, drive frequency, output voltage notches are all set and displayed digitally, for easy management.

  3. Constant amplitude control matched to workpieces or materials (C10-1VFEF, 3VFEF, 5VFEF)
    Amplitude can be set digitally, and an amplitude sensor allows drive at constant amplitude suited to the workpieces under conveyance.
  4. Easy-to-use panel design

    The frequency, voltage, soft start, on delay and off delay settings needed for parts feeder adjustment are located on a control panel. A rotary encoder allows ‘analog-style’ setting input to be changed to digital values.

  5. Many external control functions
    Choice of four speeds can be made by external signal. Two-step control through external regulating resistance. External volume adjustment via a DC4-20mA signal is also possible.
  6. CE Marking conformed product
    Required to be installed inside the control box treated with Noise filter and IP4X to make product comply to CE Marking.

Dimensions

C10-1VF/1VFEF/3VF/3VFEF

Unit: mm

C10-5VF/5VFEF

Unit: mm

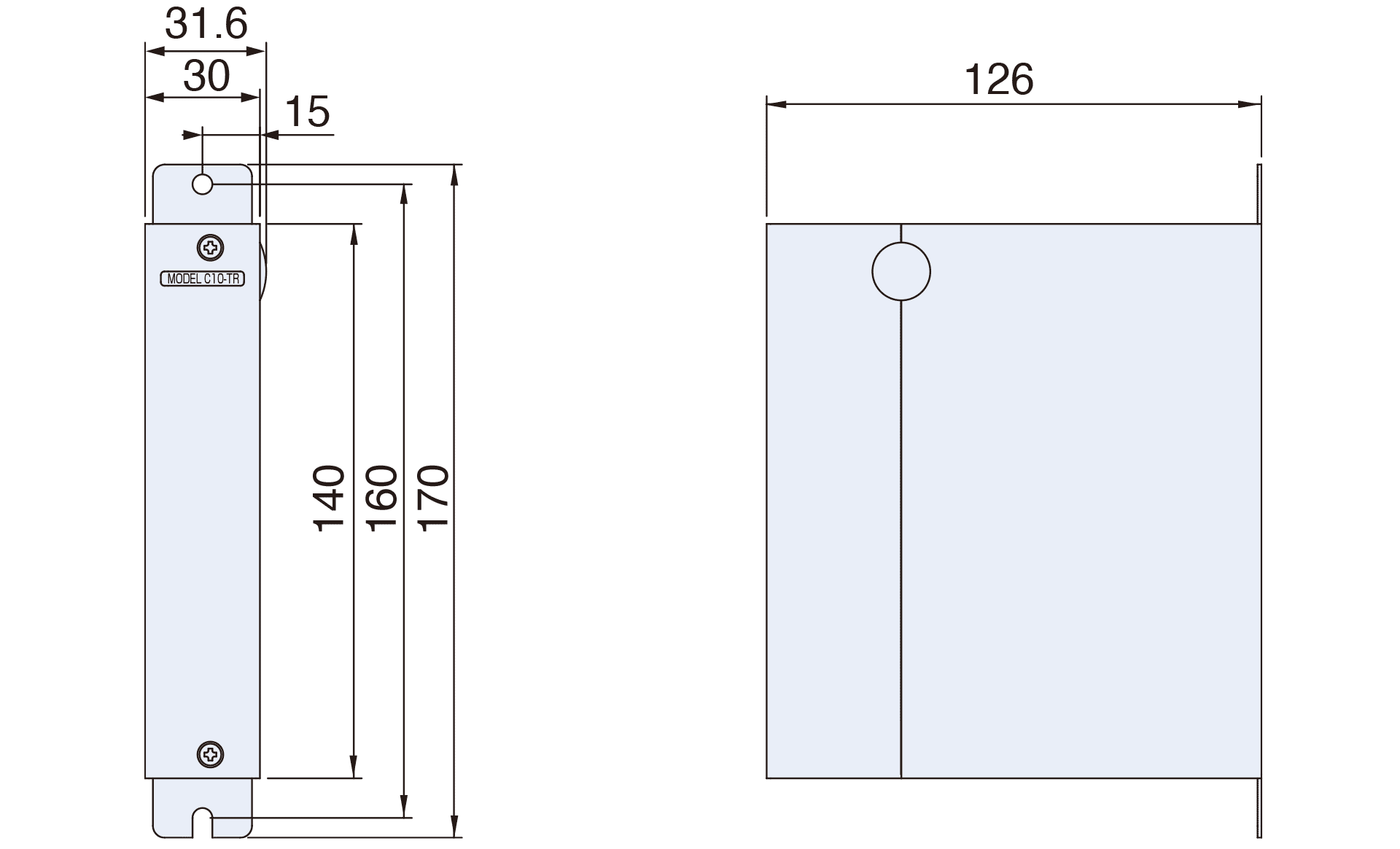

C10-TR

Unit: mm

By using a C10-TR power transformer unit with a standard controller, output voltage can be boosted to run an AC 200 V parts feeder from an AC 100 V power source. This is not applicable for C10-5VF (EF).

Specifications

Model C10-1VF C10-3VF C10-5VF C10-1VFEF C10-3VFEF C10-5VFEF
Input power source AC100~120V±10%,AC200~230V±10%,50/60Hz
Output Control system PWM system
Voltage 0~190V (for AC 200V input)
0~95V (for AC 100V input)
Automatic switching depending on input power source.
Optional unit C10-TR allows output voltage in 0~190V range (Except C10-5VF (EF)) even with AC100V input
Vibration frequency Half wave: 45~90Hz, Full wave: 90~180Hz
Intermediate wave: 65~120Hz, High frequency: 180~360Hz
Max. current 1A 3A 5A 1A 3A 5A
Operating
modes
Constant Voltage mode Frequency, output voltage set manually
Constant amplitude mode - Constant amplitude control at set frequency
Auto-tuning mode - With frequency auto-tuning, constant amplitude control requires no amplitude setting
Additional
features
Speed selector Selection of up to 4 amplitude settings by means of external signal
Start/stop control Start/Stop control by external signal
Output signal Output signal synchronized to parts feeder operation
Soft start Start-up time 0.2~4.0 secs
On/Off delay - Delay 0.2~60secs
Sensor power source - For DC 12V, max. 80mA 3P power plug
Synchronized
power output
Function - Power output synchronized to parts feeder operation (RUN)
Control system - On/Off control
Output Voltage - As power source input to controller
Max. current - 2A
Others Noise tolerant Voltage Above 1,000V
Ambient temperature 0~40℃
Ambient
humidity
10~90% (no condensation)
Compatible equipment ER-25B
EA-15, 20
LFBR-350B,
450B, 600B
LFB-300,
400, 550
LFG-600,
750, 900
ME-08C, 14C
HME-08C, 14
LFB-02, 04
HLFB-02, 04C
LF-02, 04
MF-04C, 15C
HSE-14
ER-30B,
38B, 45B
EA-25, 30,
38, 45
LF-30, 40
ER-55B,
65B, 75B
ER-25B
EA-15, 20
LFBR350B,
450B, 600B
LFB-300,
400, 550
LFG-600,
750, 900
ME-08C, 14C
HME-08C, 14
LFB-02, 04
HLFB-02, 04C
LF-02, 04
MF-04C, 15C
HSE-14
ER-30B,
38B, 45B
EA-25, 30,
38, 45
LF-30, 40
ER-55B,
65B, 75B

Specifications above are applied for later than ver.4.
