EA Series
For handling a wide range of very small, precision workpieces
With high vibration frequencies of 100 to 180 Hz and small amplitude of 0.6 mm, this series is ideal for very small (10 mm or less), high precision or ultra thin workpieces. Can accommodate bowls ranging from 150 to 700 mm in diameter for highly reliable conveyance.
Specifications
| Model | EA-15B | EA-20B | EA-25 | EA-30 | EA-38 | EA-45 | |
|---|---|---|---|---|---|---|---|
| Drive unit outer diameter (mm) | φ165 | φ210 | φ260 | φ310 | φ390 | φ460 | |
| Drive unit height (mm) | 133 | 155 | 193 | 225 | 265 | 285 | |
| Drive unit weight (kg) | 8 | 16 | 30 | 49 | 80 | 109 | |
| Leaf-spring attachment angle (degree) | 15 | ||||||
| Rated voltage (V) | 200 (*1) | ||||||
| Rated current (A) | 0.35 | 0.8 | 1.5 |
2.0 |
2.5 | 3.0 | |
| Vibration frequency (Hz) | 100~180 | ||||||
| Unprocessed bowl diameter (mm) (cylindrical) |
150 | 200 | 250 | 300 | 375 | 450 | |
| Max. bowl diameter (mm) (cylindrical) |
250 | 330 | 420 | 500 | 600 | 700 | |
| Max. amplitude (mm) (periphery of standard cylindrical bowl) |
0.6 | 0.8 | |||||
| Max. loaded weight (kg) (workpieces+bowl weight) |
2.3 | 4 | 8 | 12.5 | 17 | 26 | |
| Cross section area of power cable (mm2) | 0.75×3 cores | 1.25×3 cores | |||||
| Compatible controllers | AC 200V | C10-1VF/1VFEF | C10-3VF/3VFEF | ||||
| AC 100V | C10-1VF/1VFEF+C10-TR | C10-3VF/3VFEF+C10-TR | |||||
*1 With an AC100V power source, use C10-TR transformer (sold separately).
Structural Diagram

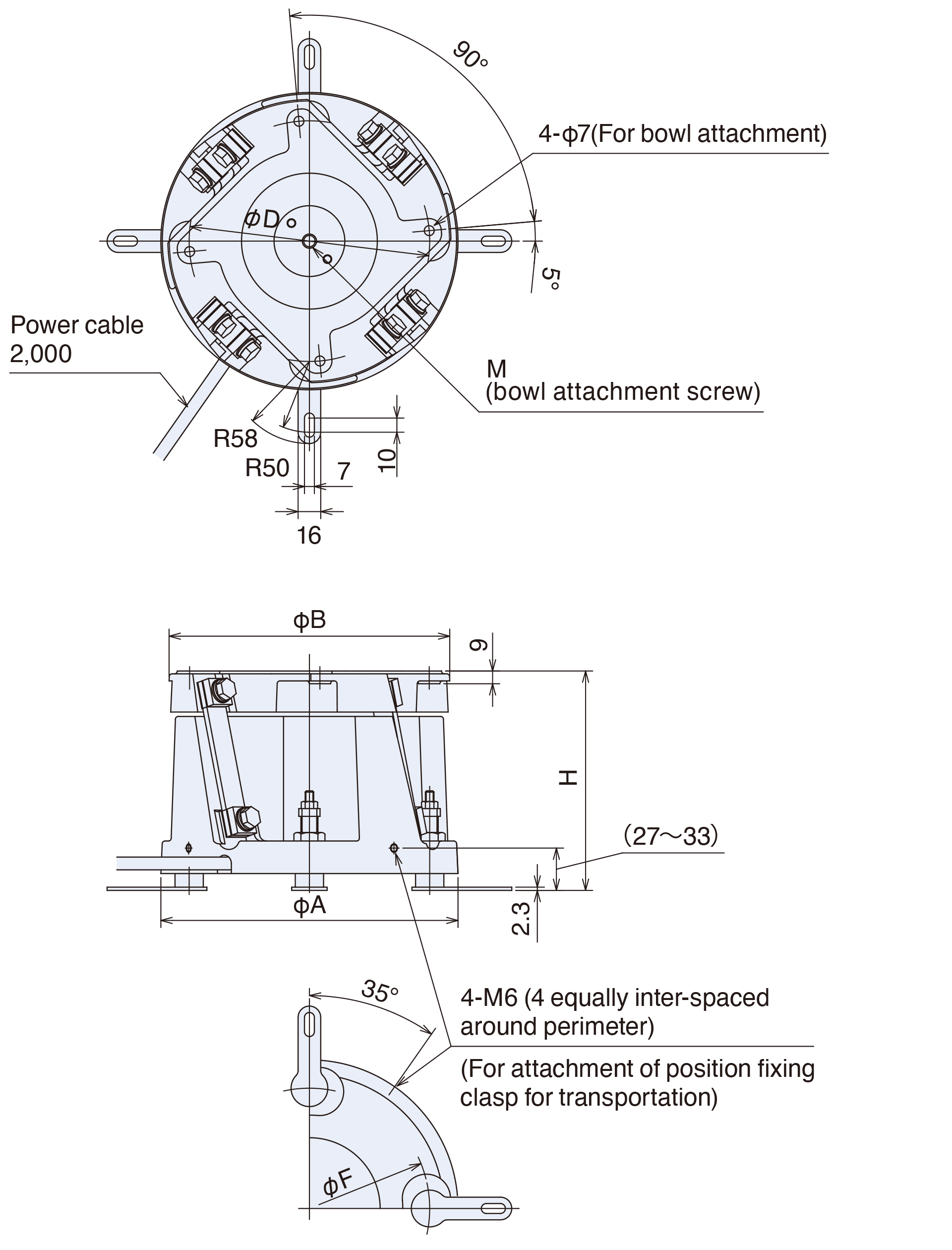

EA-15B/20B
Dimensions
Unit: mm
Dimensions Chart
| Model | H | φA | φB | M | φF |
|---|---|---|---|---|---|
| EA-15B | 130~133~136 | 165 | 150 | M8 | 130 |
| EA-20B | 152~155~158 | 210 | 200 | M10 | 170 |
Unit: mm
EA-25/30/38/45
Dimensions
Unit: mm
Dimensions Chart
| Model | H | φA | φB | M | φF | L | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|
| EA-25 | 190~193~196 | 260 | 250 | M12 | 216 | 58 | 50 | 16 | 7 | 10 |
| EA-30 | 220~225~230 | 310 | 300 | M12 | 252 | 85 | 75 | 20 | 7 | 20 |
| EA-38 | 260~265~270 | 390 | 375 | M16 | 324 | 85 | 75 | 20 | 7 | 20 |
| EA-45 | 280~285~290 | 460 | 450 | M16 | 390 | 85 | 75 | 20 | 7 | 20 |
Unit: mm
