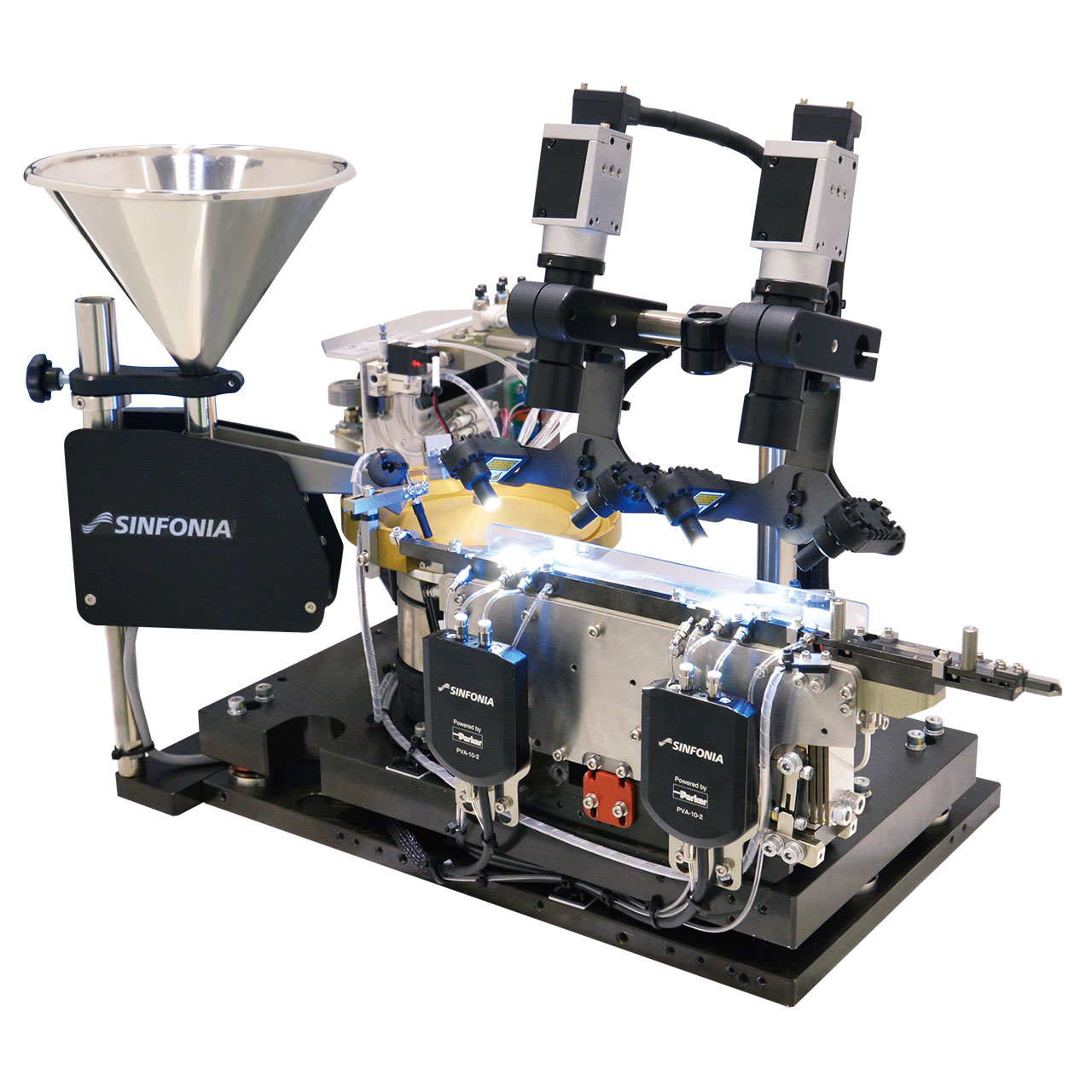

Parts Feeder with Image Processing Function
Costomized product
Automatically detecting work position by a high resolution CCD camera.
This parts feeder manufactured by combining Sinfonia Technology’s original sorting method and high resolution CCD camera. Supplying only right work pieces to next process by automatically recognize direction of work pieces. This is the most suitable for multiproduct manufacturing line.
Work Piece Diagram
Specifications
| Model | Parts Feeder with Image Processing Function |
|---|---|
| Feeding Rate | 500pieces/min |
| Achievement Rate | 99.9% |
| Vibration Frequency | 220~360Hz |
| Rated Current | 0.3A |
| Voltage | 100V |
| Weight | approx.35kg |
| Controller | For Parts Feeder: C9-03VFT For Work Sorting: MSC-SP10 |

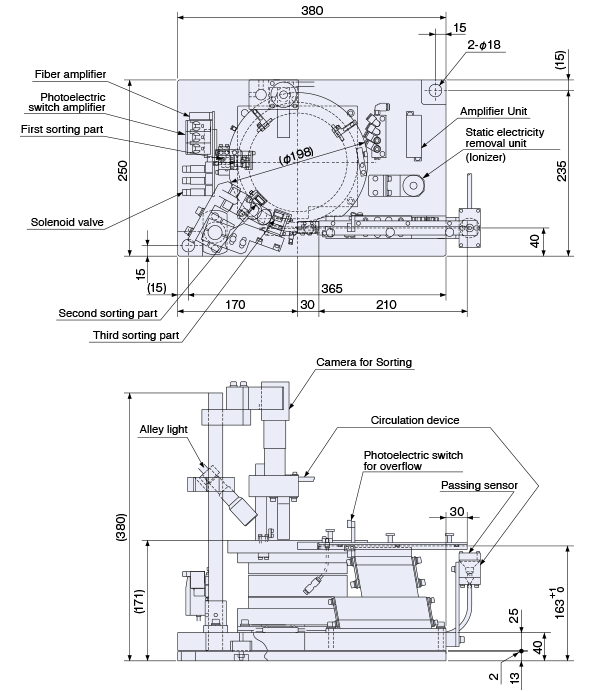

Dimensions
Unit: mm
