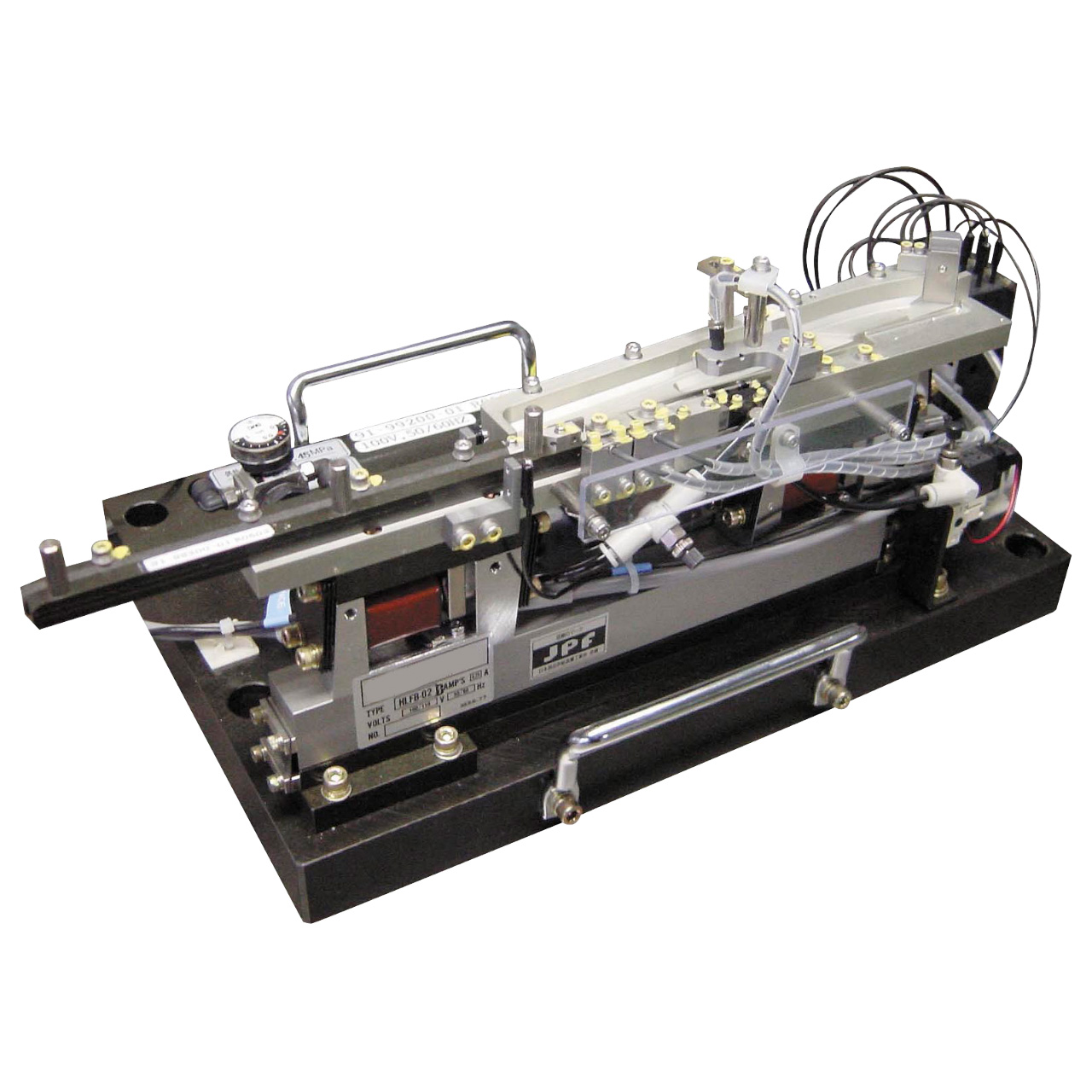

Linear Parts Feeder For R chips

Costomized product

It’s not only compact but also as powerful as bowl type feeder.

Linear parts feeder is suitable for space saving because it requires 1/5 space compared with bowl type feeder without losing its power. It is able to supply micro electronic parts such as 1005-0603 chips quickly and precisely. Moreover, it is easy to carry because it’s light and compact.

Features

  1. Space Saving, Lightweight
    Compared with conventional type, it is reduced 1/2 of installation space. Moreover, feeding rate is 2000pieces/min, and this is almost same as capacity of bowl type feeder. Furthermore, weight is only 15kg, so you are able to move along with supply line’s move.
  2. Highly Reduced Falling Distance
    Setting falling distance of work pieces approximately 3mm. Reduce damage for work pieces, and improves reliability of parts.
  3. Conveying distance 1/4
    Conveying distance is short as approx. 400mm because it is linear type, and it is 1/4 compared with bowl type.

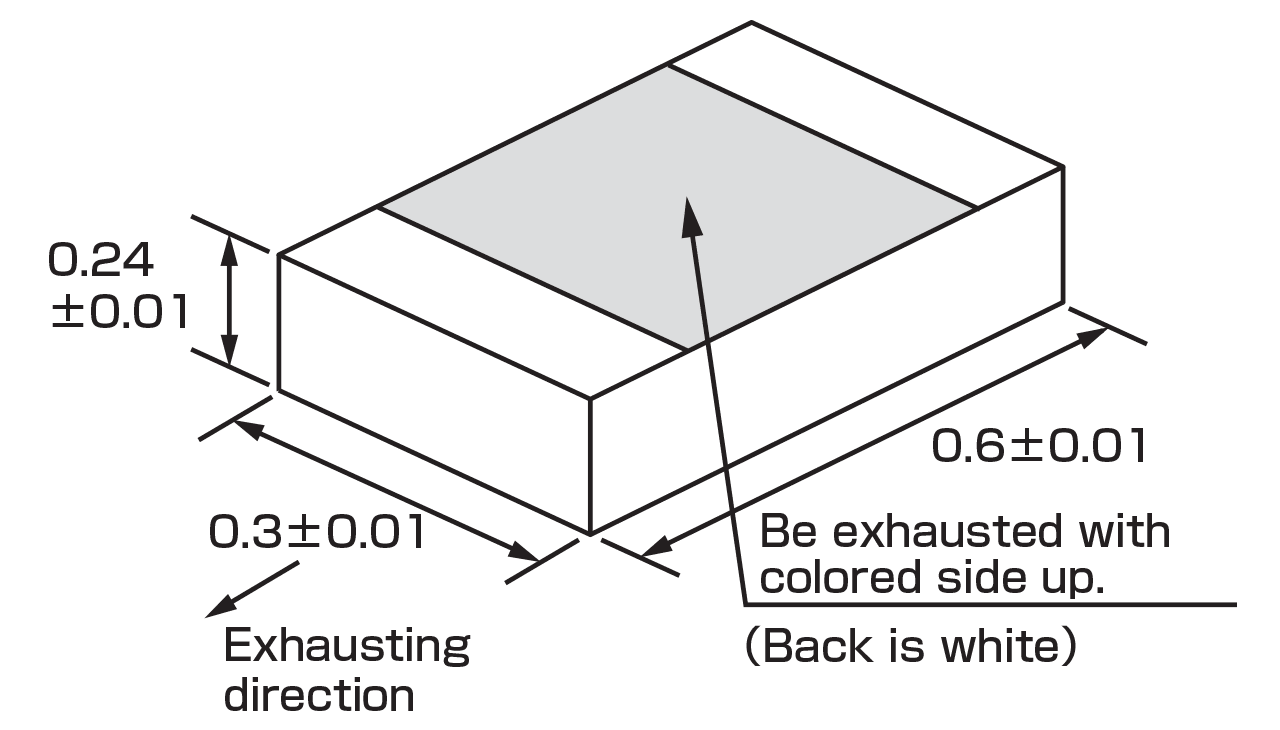

Work Piece Diagram

Specifications

Model Linear Parts Feeder For R chips
Feeding Rate 2000pieces/min
Achievement Rate 99.9%
Vibration Frequency Main Trough: 220~360Hz
Return Trough: 220~360Hz
Rated Current Main Trough: 0.3A
Return Trough: 0.3A
Voltage 100V
Weight approx.15kg
Controller C7-03VFEFT

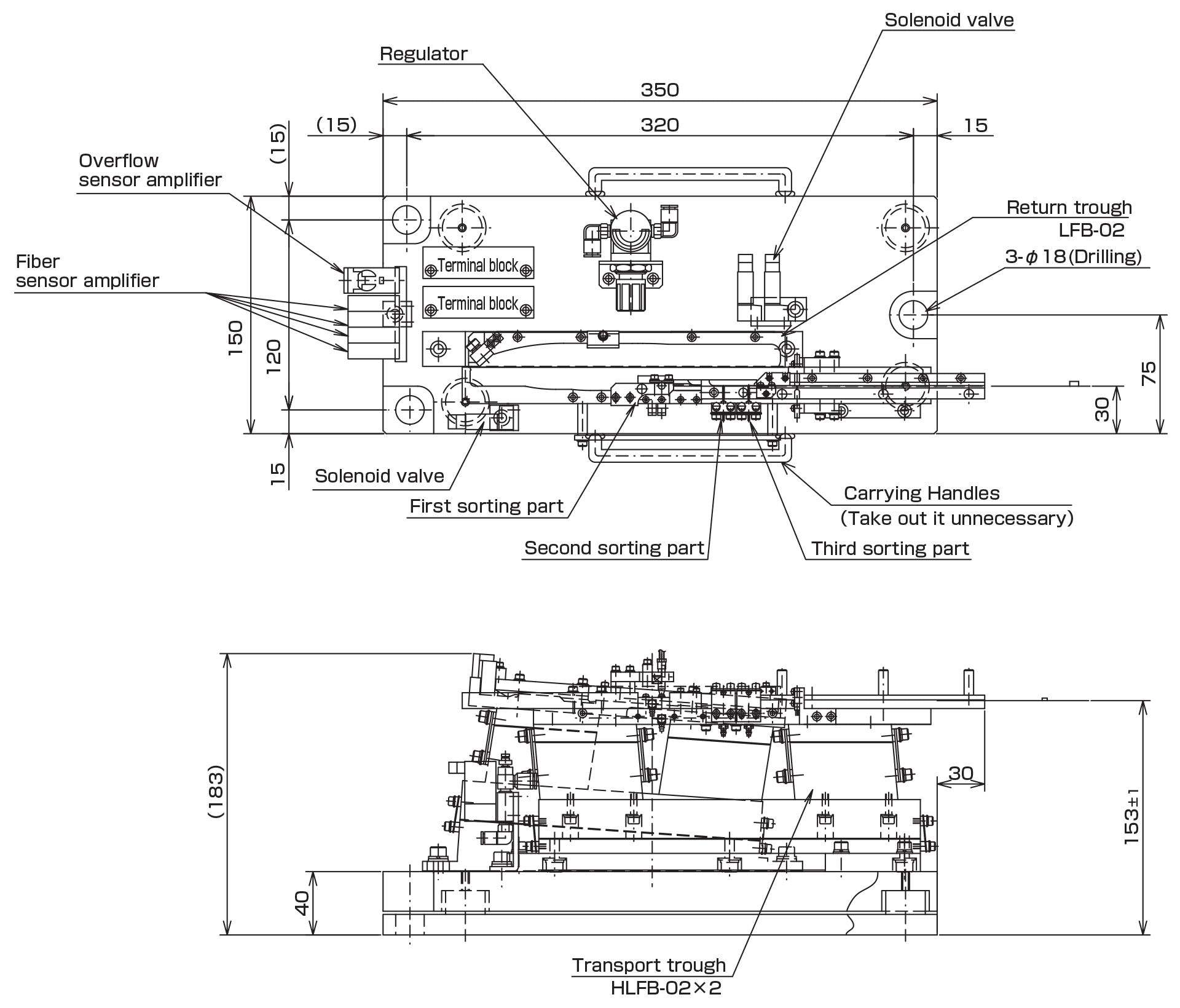

Dimensions

Unit: mm
