LF Series
Direct Mount Type
Simple and compact. Handles a wide range of micro-sized and precision parts
Developed for stabilized delivery of non-specialized micro-sized and precision parts, this series uses a small, electromagnetic drive unit that is simple and compact.
Unmounted, with full wave operation to give excellent conveyance capacity for small volumes of non-specialized micro-sized workpieces. Maintenance is very straightforward and minimizes costs.
Dimensions

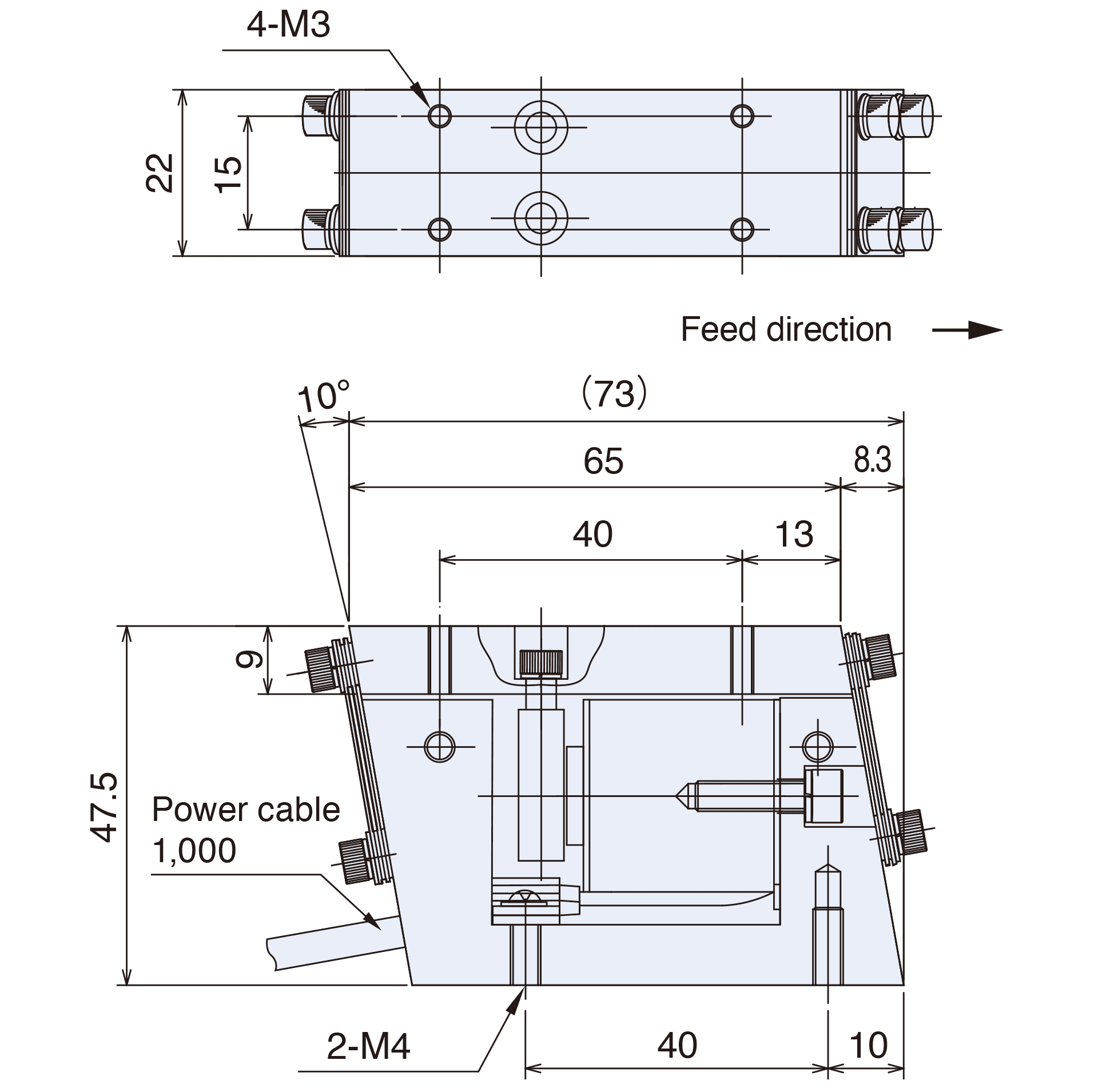

LF-02B

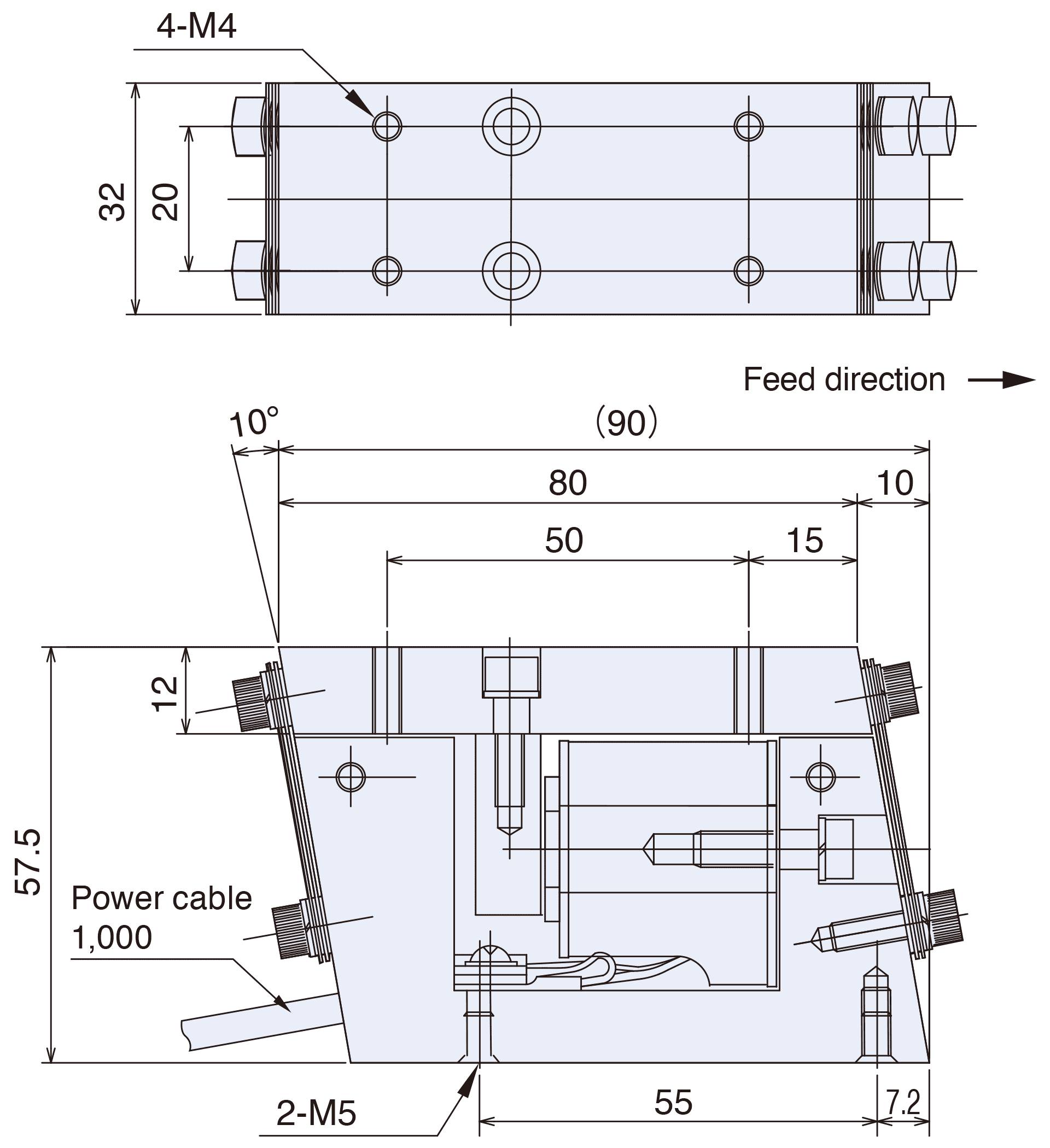

LF-04B
Specifications
| Model | Rated Voltage (V) | Rated Current (A) | Vibration Frequency (Hz) | Weight (kg) | Standard compatible controllers |
|---|---|---|---|---|---|
| LF-02B | 100/110 | 0.12 | 100~180 | 0.45 | C10-1VF/1VFEF |
| LF-04B | 100/110 | 0.16 | 100~180 | 1.0 |
Chute Specifications
| Compatible linear feeder | Max. length | Max. width | Max. Weight (kg) |
|---|---|---|---|
| LF-02B | 180 | 20 | 0.2 |
| LF-04B | 240 | 30 | 0.4 |
Unit: mm
