LFB Series
-Leaf-Spring Vibro-Isolating Type
Uniform vibration with no need for adjustment
Use of a variable frequency controller eliminates the need for leaf-spring and core-gap adjustments.
Provides uniform vibration with no adjustments necessary, and is easily installed to link up with other equipment, greatly improving ease of use. Can accommodate heavier chute weights and longer overhangs, to widen scope for applications.
The drive unit is slim, and with virtually no vibration interference it can easily be combined with parts feeders, to suit wide-ranging combinations.
The three models in this series can be used selectively to handle all sizes and shapes of workpiece.
Dimensions
Specifications
| Model | LFB-300 | LFB-400 | LFB-550 | |
|---|---|---|---|---|
| Rated Voltage (V) | 200 | |||
| Rated Current (A) | 0.04 | 0.08 | 0.15 | |
| Vibration Frequency (Hz) | 90~120 | 80~110 | 75~100 | |
| Drive unit weight (kg) | 3.0 | 5.0 | 10.0 | |
| Leaf-spring angle (degree) | 15 | |||
| Max. amplitude (mm) | 0.6 | 0.65 | 0.75 | |
| Compatible controller | AC 200V | C10-1VF/C10-1VFEF | ||
| AC 100V | C10-1VF+C10-TR/C10-1VFEF+C10-TR | |||
Dimensions Chart
| Model | A | B | C | E | F | G | H | I | K | L | M | N | O | P | R | W | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LFB-300 | 57 |
135 |
97 | 124 | 65 | 150 | 24 | 45 | 55 | 110 | 5 | 16 | 3 | 10 | 15 | 38 | 6 |
| LFB-400 | 65 | 160 | 120 | 145 | 75 | 180 | 28 | 55 | 60 | 130 | 6 | 16 | 5 | 15 | 15 | 42 | 7 |
| LFB-550 |
79 |
230 | 143 |
200 |
90 | 255 |
38 |
75 | 75 | 190 | 6 | 19 | 5 | 20 | 20 | 52 | 9 |
Unit: mm

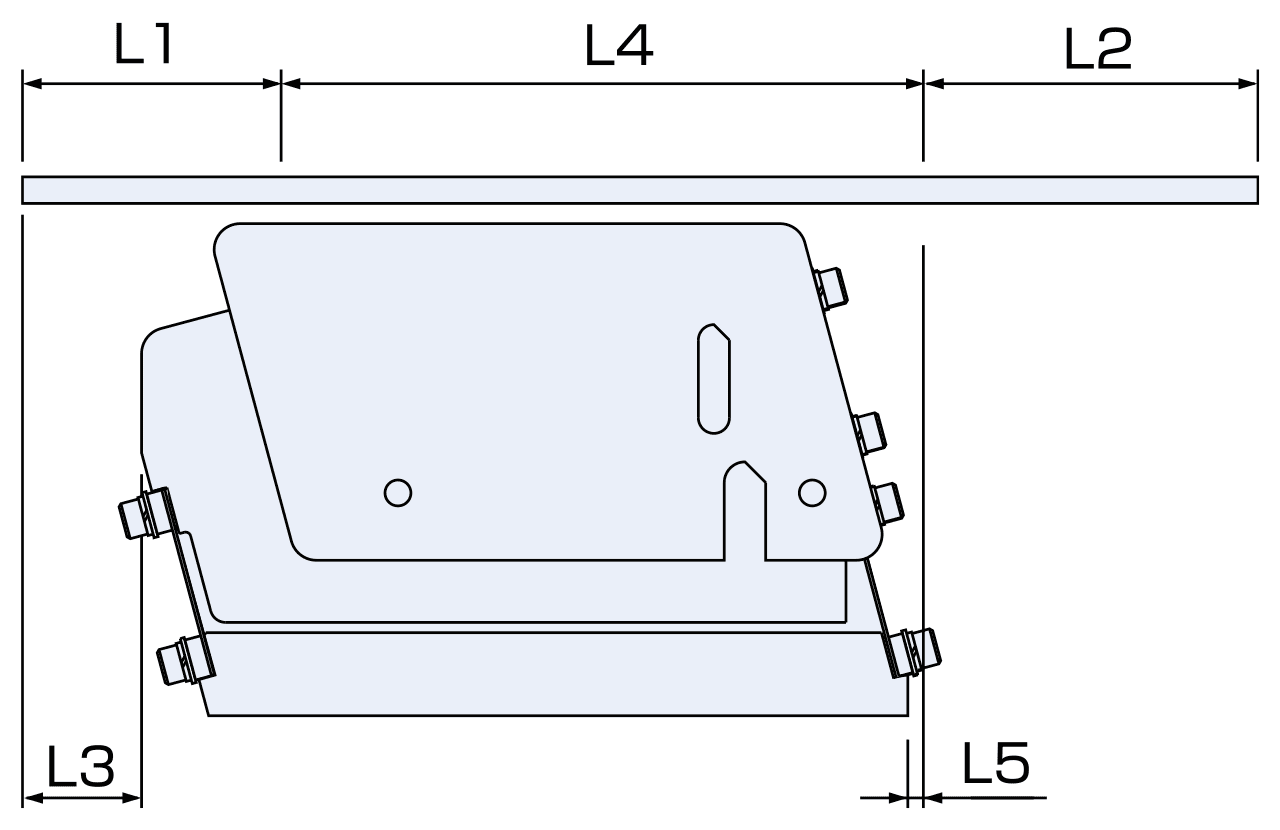

Chute Dimensions
Chute Specifications, Including Basic Position
| Model | Max. length |
Max. width |
Min. thickness |
Weight range (kg) |
Basic position (at max. chute length) |
||||
|---|---|---|---|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | |||||
| LFB-300 | 300 | 50 | 6 |
0.4~1.0 |
66 | 110 | 40 | 124 | 3 |
| LFB-400 |
400 |
50 |
10 |
0.8~2.0 |
105 | 150 |
70 |
145 | 5 |
| LFB-550 | 550 | 65 | 14 | 1.4~3.5 | 140 | 210 | 85 |
200 |
5 |
Unit: mm
