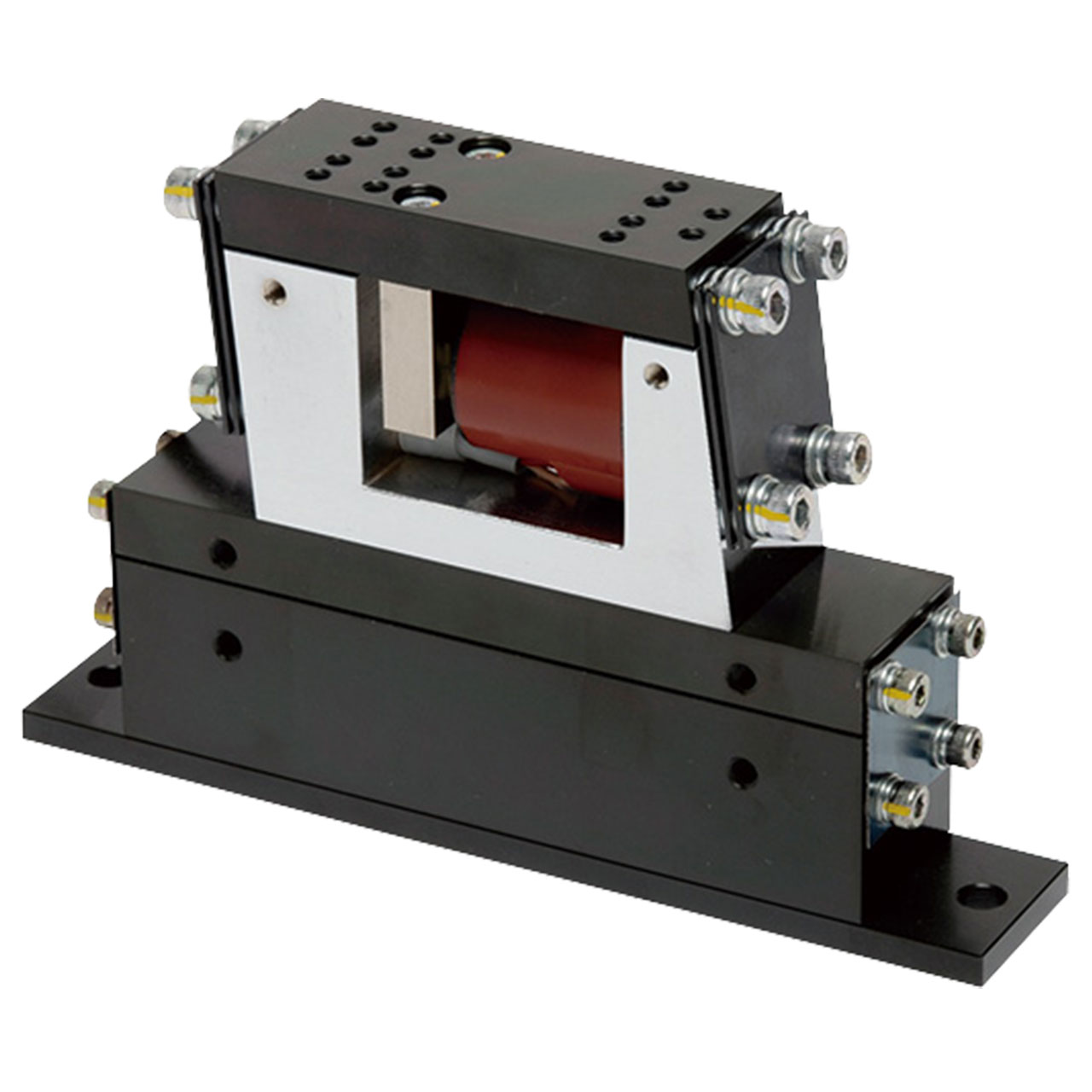

LFB/HLFB Series
-Leaf-Spring Vibro-Isolating Type
Ideal vibration characteristics to cut bouncing
A high-precision electromagnetic drive unit ideal for use with chutes for precision parts, to meet present-day requirements for rapid processing of micro-sized workpieces.
Vibro-isolating leaf-springs are installed front and rear to absorb rebound, and vibration characteristics can be adjusted to match the workpiece. Giving uniform vibration the whole length of the trough, this series provides smooth delivery of the most delicate, easily damaged parts with minimal bouncing.
Dimensions

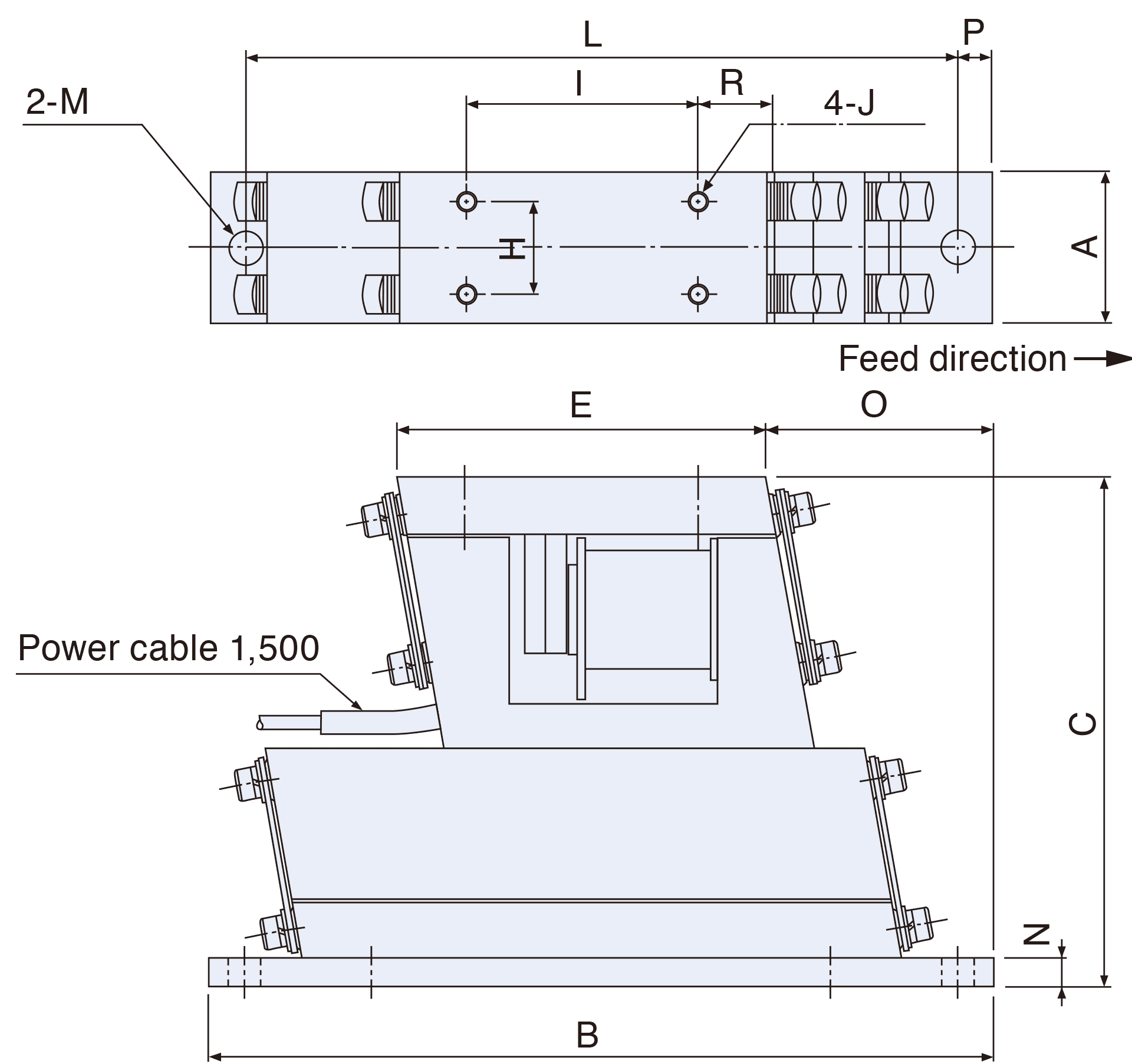

LFB-02/04・HLFB-02

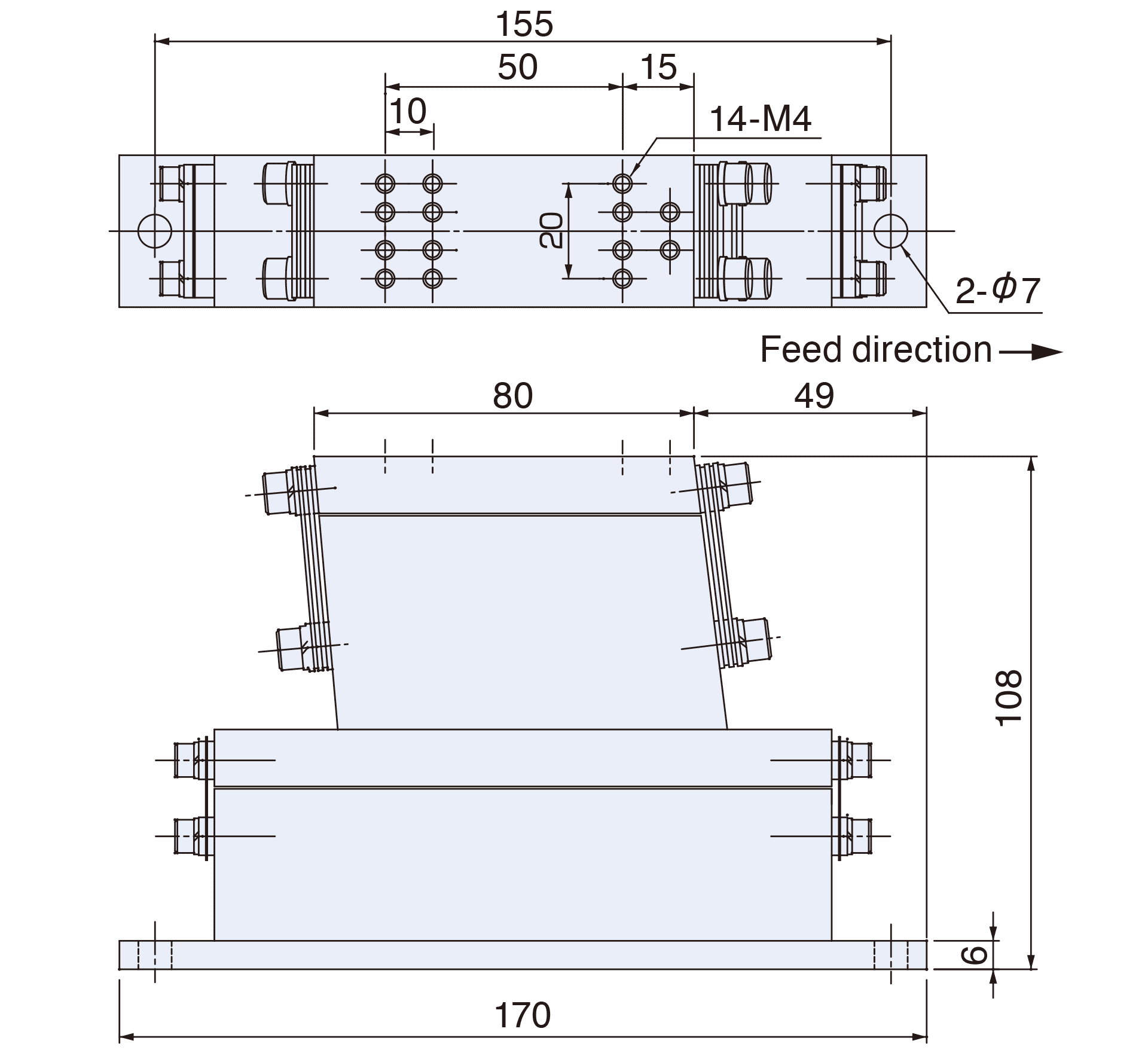

HLFB-04C
Specifications
| Model | Rated Voltage (V) |
Rated Current (A) |
Vibration Frequency (Hz) |
Weight (kg) | Standard compatible controllers |
|---|---|---|---|---|---|
| LFB-02 |
100/110 |
0.12 | 100~180 | 1.2 | C10-1VF C10-1VFEF C9-03VFTC |
| LFB-04 | 100/110 200/220 |
0.16 0.08 |
100~180 | 2.7 | |
| HLFB-02 |
100/110 |
0.25 | 220~360 | 1.2 | |
| HLFB-04C |
100/110 |
0.30 |
220~360 | 2.7 |
Dimensions Chart
| Model | A | B | C | E | H | I | J | L | M | N | O | P | R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LFB/HLFB-02 | 22 | 130 | 86 |
65 |
15 | 40 | M3 | 120 |
φ6 |
4.5 | 45 | 5 | 13 |
| LFB-04 | 32 |
170 |
108 | 80 | 20 | 50 | M4 | 155 | φ7 |
6 |
49 | 7.5 | 15 |
Unit: mm
Chute Specifications
| Compatible linear feeder | Max. length | Max. width | Max. weight (kg) |
|---|---|---|---|
| LFB/HLFB-02 | 180 | 20 | 0.2 |
| LFB-04 | 240 | 30 | 0.4 |
| HLFB-04C | 240 | 30 | 0.4 |
Unit: mm
Chute must straddle drive unit to distribute weight.
