LFG Series
-Rubber Mount Vibro-Isolating Type
Accommodates a wide range of chutes for ideal conveyance
The variable frequency controller installed as standard eliminates need for leaf-spring and core-gap adjustments. Easy installation and coordination make it much easier to use, and by adjusting position of the rear-end weight, conveyance irregularities can be quickly and easily eliminated. With minimal lateral movement, there is virtually no vibration interference, making it easy to combine with parts feeders for stabilized delivery. The three models in this series allow a full range of equipment combinations, and cover all shapes and sizes of workpiece. A leaf-spring vibro-isolating type linear feeder with reduced floor reaction.We enabled low-reaction force, high accuracy and smooth parts conveyance through our review of the drive unit mechanism in detail.

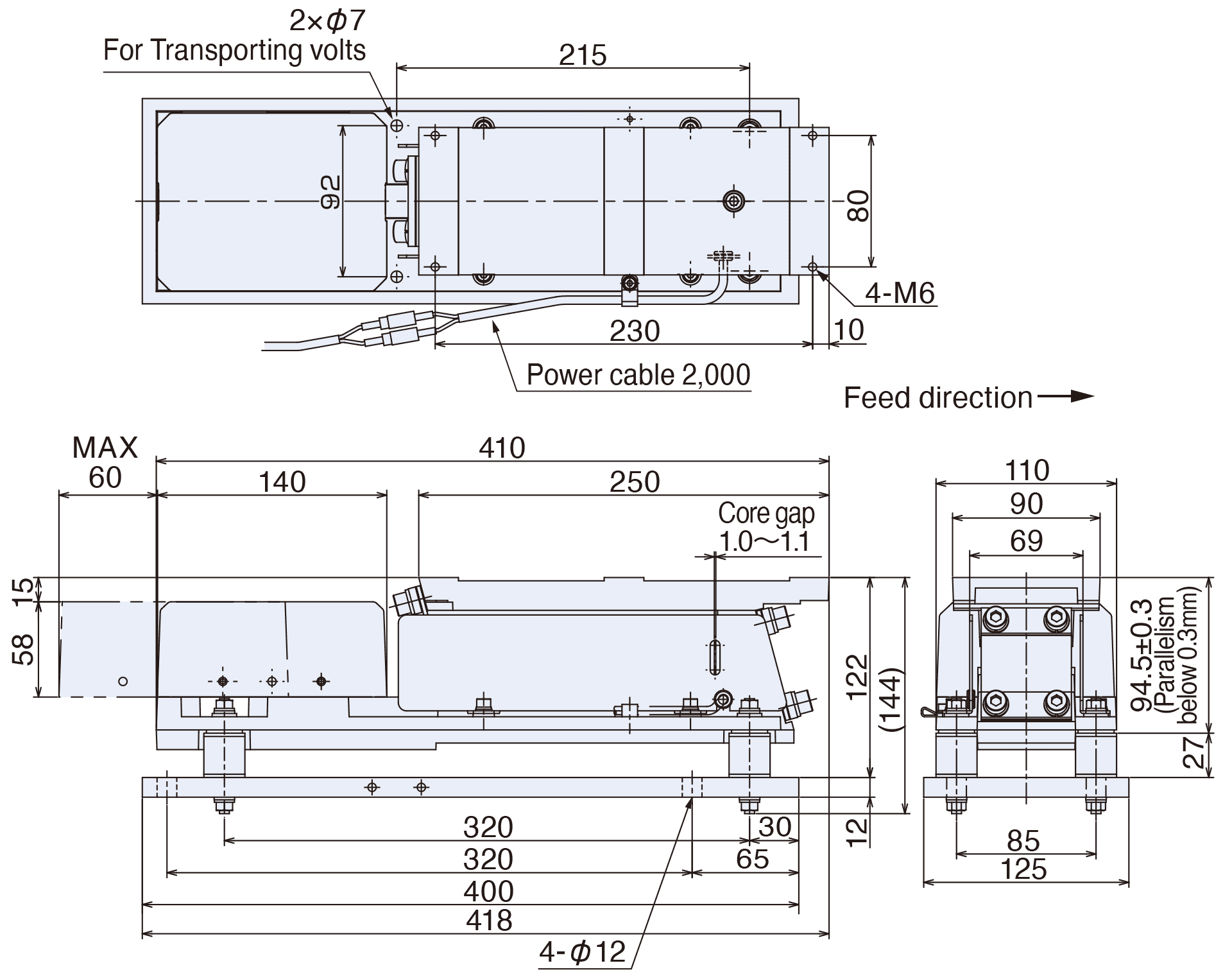

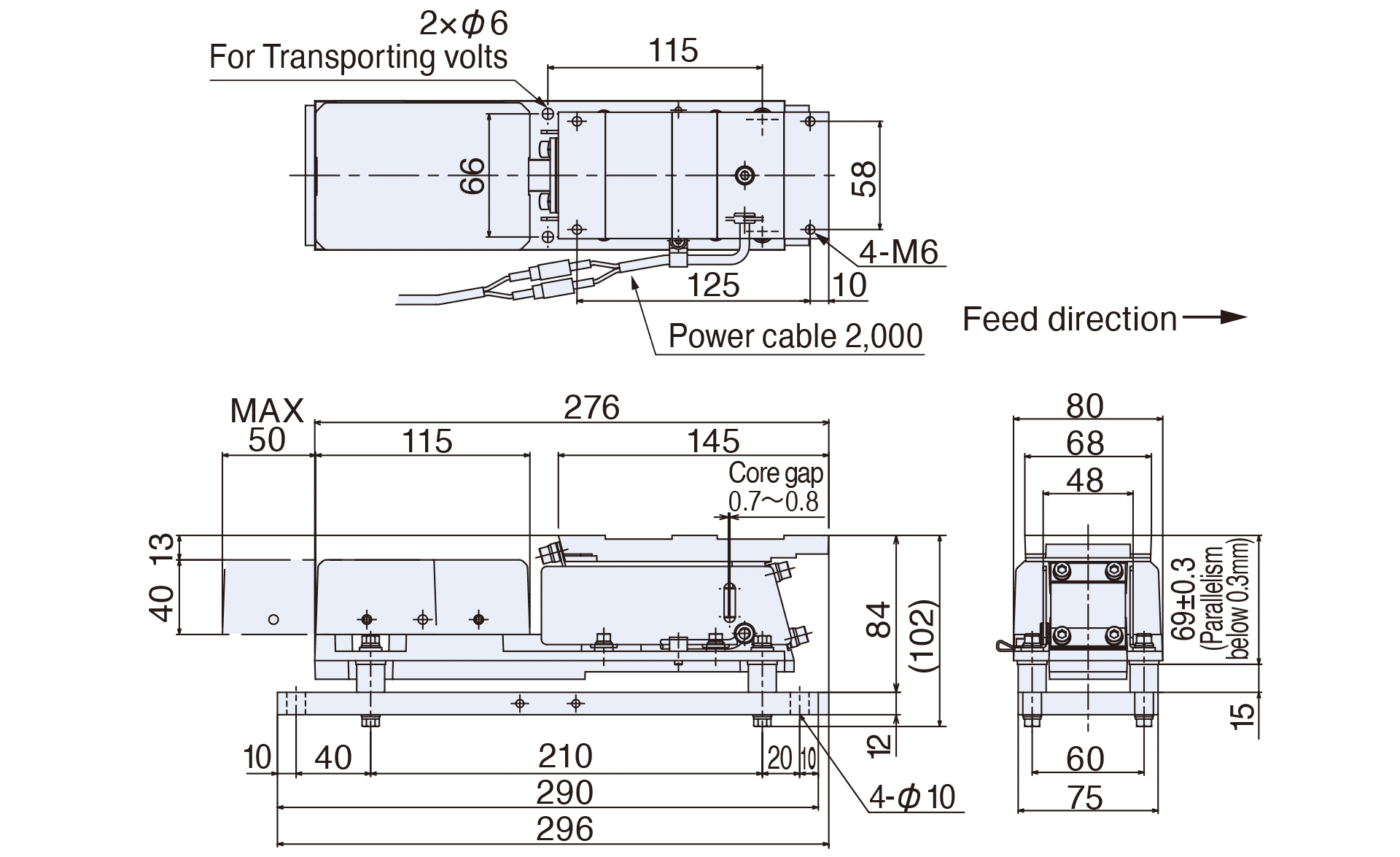

Dimensions
LFG-600B
LFG-750B
LFG-900B
Specifications
| Model | LFG-600B | LFG-750B | LFG-900B | |
|---|---|---|---|---|
| Rated Voltage (V) | 200 | |||
| Rated Current (A) | 0.2 | 0.37 | 0.41 | |
| Vibration Frequency (Hz) | 80~110 | 80~110 | 80~110 | |
| Drive unit weight (kg) | 7.4 | 13.2 | 19.6 | |
| Leaf-spring angle (degree) | 15 | |||
| Max. amplitude (mm) | 0.65 | 0.75 | 0.9 | |
| Cross section area of power cable (mm2) | 0.75 | |||
| Compatible controller | AC 200V | C10-1VF/C10-1VFEF | ||
| AC 100V | C10-1VF+C10-TR/C10-1VFEF+C10-TR | |||

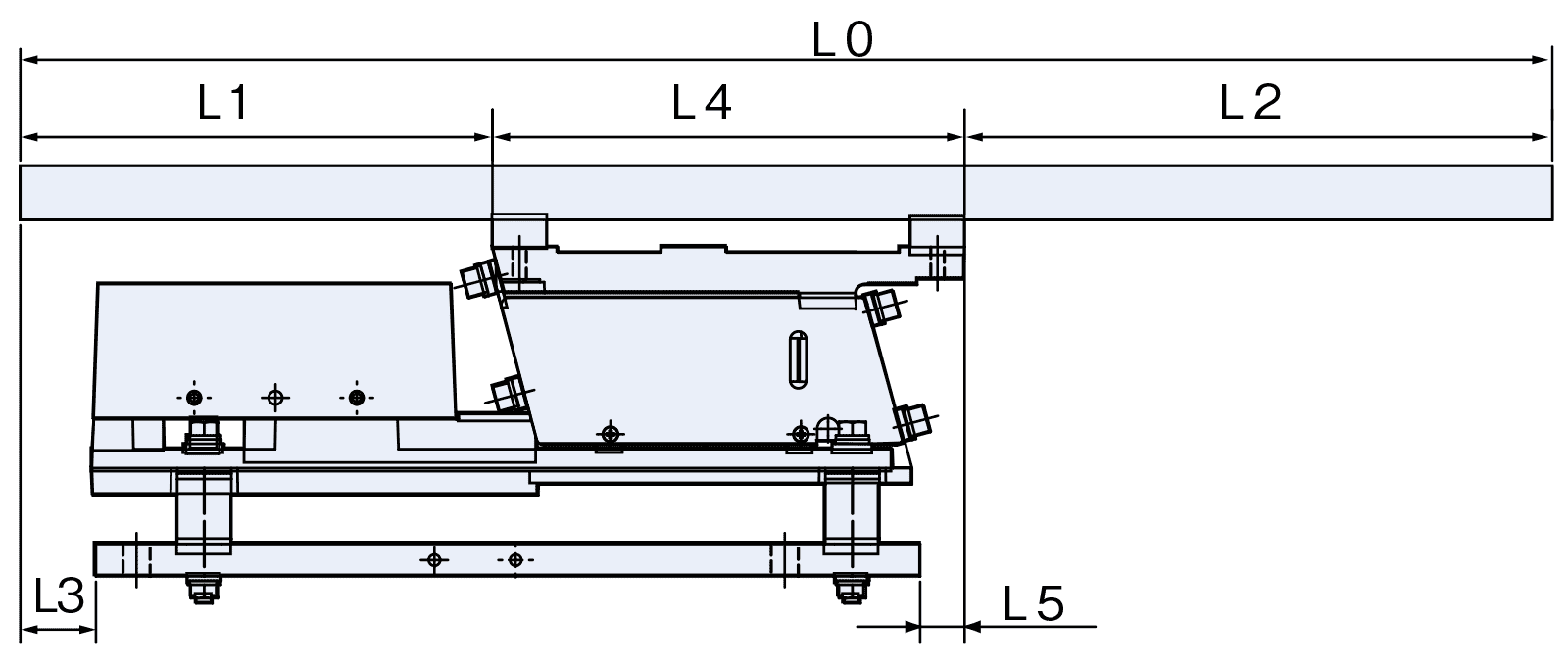

Chute Dimensions
Chute Specifications, Including Basic Position
| Model |
Max. length |
Max. width | Min. thickness | Weight range （kg） |
Basic position (at max. chute length) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| L0 | L1 | L2 | L3 | L4 | L5 | |||||
| LFG-600B | 600 | 50 | 10 | 1.4~3.6 | 600 | 180 | 275 | 29 | 145 | 6 |
| LFG-750B | 750 | 65 |
14 |
2.2~5.4 | 750 | 220 | 330 | 74 | 200 | 16 |
| LFG-900B | 900 | 75 | 18 | 4.0~9.8 | 900 | 260 | 390 | 92 | 250 | 18 |
Unit: mm
