ME Series
High-speed, high-precision handling of micro-sized parts and electronic chips.
Compact design and versatility to handle a wide range of small parts.
Designed for the automatic conveyance and stable delivery of delicate components that are easily scratched or damaged, these feeders provide high-speed, high-precision parts handling. With the fine vibration of full wave drive and a soft start function, all types of tiny parts for cameras, watches etc. can be handled. Compact design takes up minimal space.
Dimensions

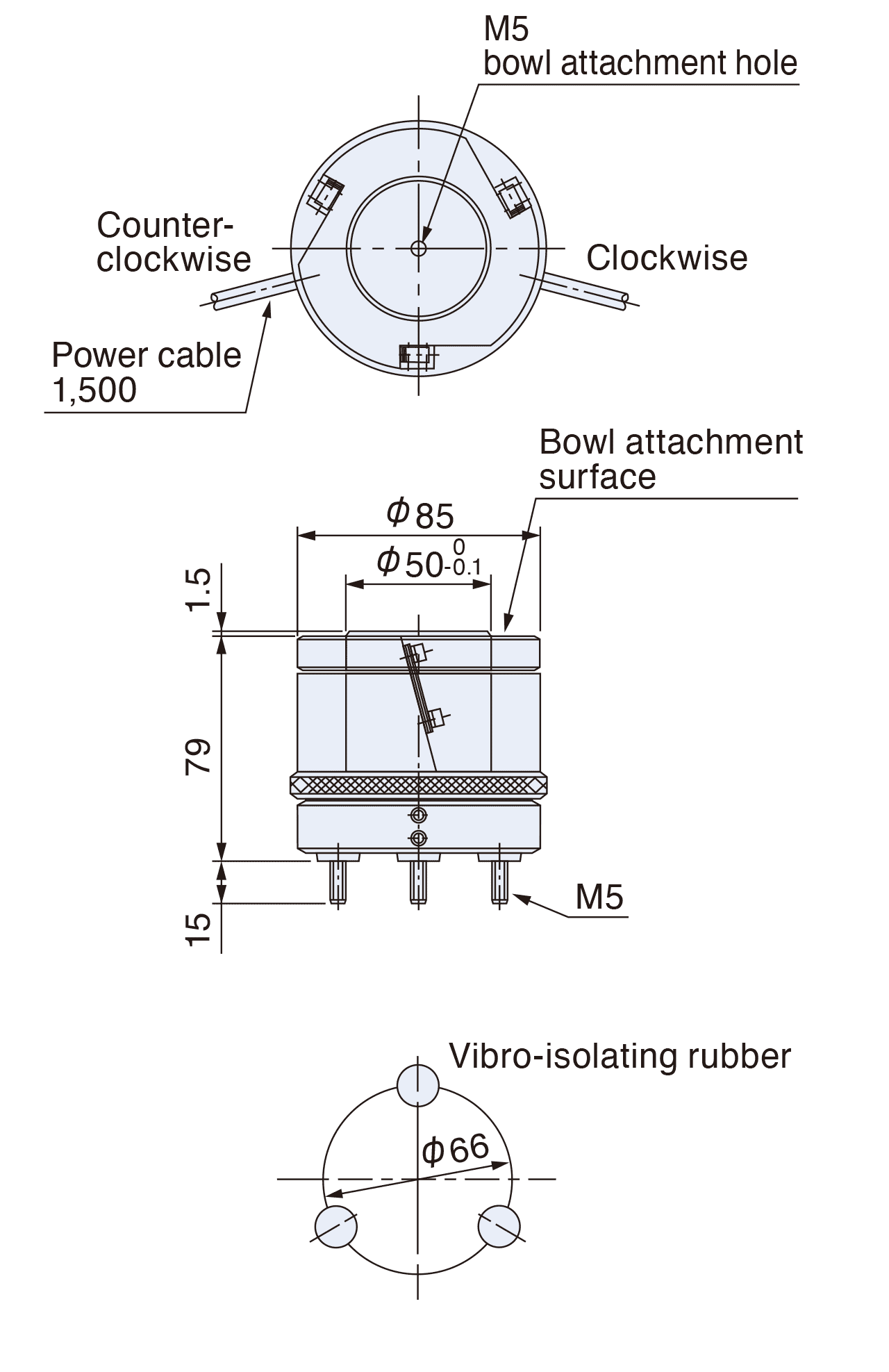

ME-08C
ME-14C
ME Structure
Specifications
| Model | Rated Voltage (V) |
Rated Current (A) |
Vibration Frequency (Hz) |
Weight (kg) |
Loaded Weight (kg) |
Max. bowl diameter (mm) |
Compatible standard controller |
|---|---|---|---|---|---|---|---|
| ME-08C | 100/110 | 0.3 | 100/180 | 2.5 | 0.6 | φ140 | C10-1VF C10-1VFEF C9-03VFTC |
| ME-14C | 0.55 | 7.8 | 2.0 | φ230 |
Loaded weight is permissible weight of bowl and work.
