HEV Onboard Motor Evaluation Testing System
Supporting the Future of Automobiles with High-Speed Rotation, Ultra-Low Inertia, and Control Technology
The HEV Onboard Motor Evaluation and Testing System is a state-of-the-art system that accurately and easily measures the performance of hybrid electric vehicle (HEV) motors.
Accurate measurements of power output, efficiency, and durability enable the development of superior HEV motors.
System Features
- High speed
Max. rotational speed~30,000 r/min, Max. torque~700 Nm - Ultra low inertia
Rotor moment of inertia equivalent to that of an engine
(J=0.012~kg-m2) - Zero speed control
0-speed operation by electric control is possible
- Wide range of control
Control is possible from 0 rpm to very low speed to maximum rpm - High-precision speed control
Speed accuracy: 0.02%FS
(J=0.012~kg-m2) - Angle control function
Can stop at any angular position with ±0.5° accuracy
High-speed dynamometer
Maximum torque: 150 to 700 Nm
Max. rotational speed: 16,000 to 30,000 r/min

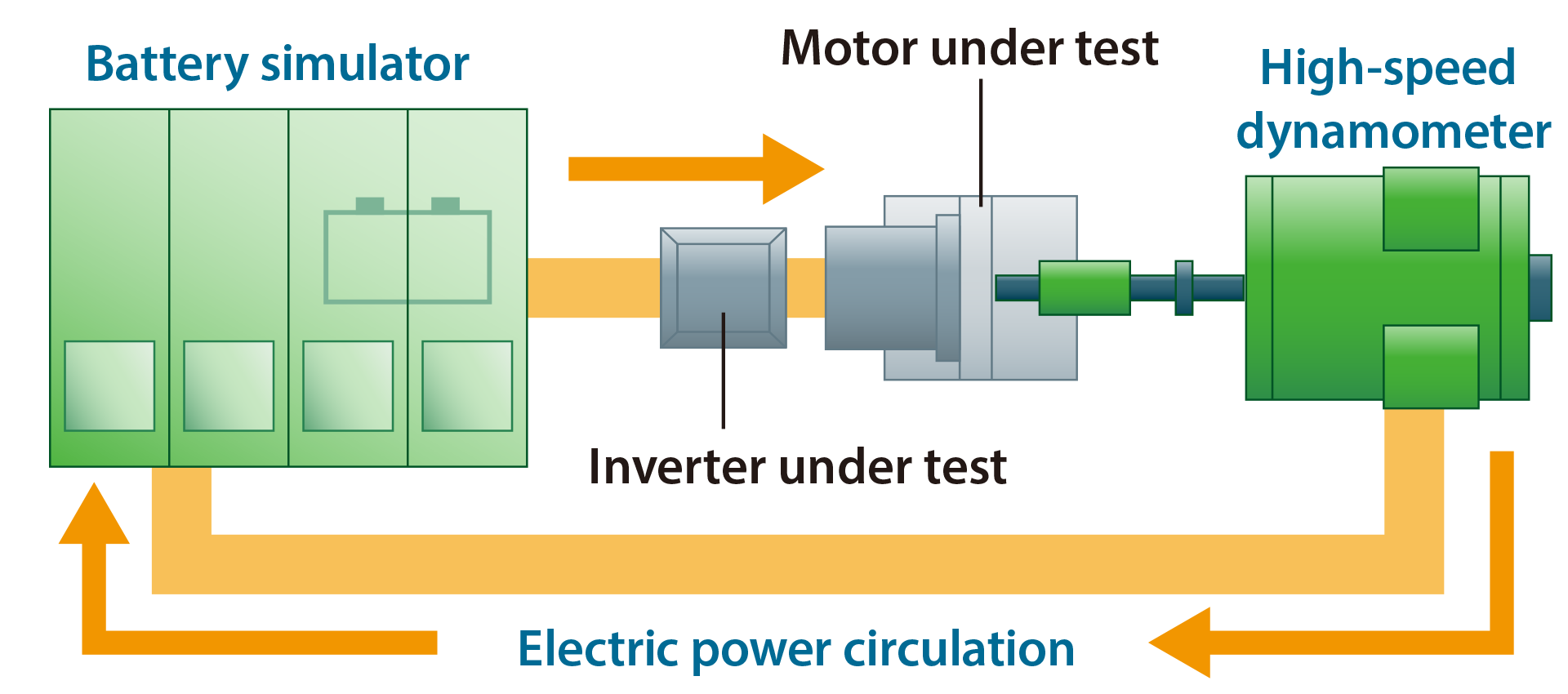

Battery simulator
- Integrated operating system
- Energy saving by power circulation
- High voltage (1500V) compatible
![システムの特徴](https://www.sinfo-t.com/application/files/8217/1021/9677/hev-motor-fig.png)
