Get the Best Type of Vibration for Specific Applications and Materials!

Our manufactures a wide range of controllers that help you get the most out of your vibrating feeders, linear feeders, vibrators, packers, and other electromagnetic equipment. In addition to our versatile C4-5B standard controller, we offer a fixed-amplitude controller that ensures a stable vibration amplitude (unaffected by changes in voltage or load), as well as the VF Series regulators that permit you to set optimum vibration conditions with the simple turn of a dial. Choose the one that best suits your needs -- they're all compact and easy to operate.

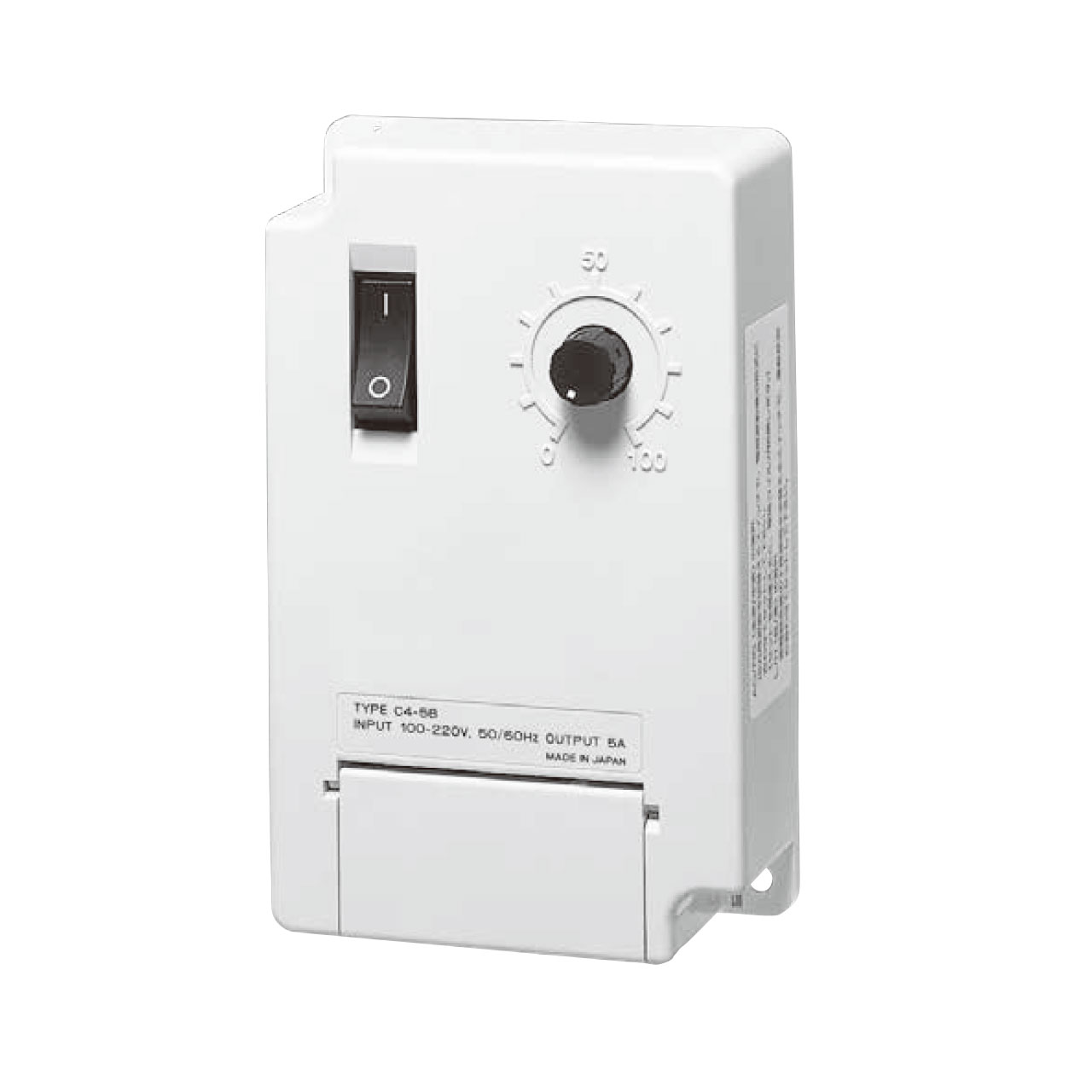

Standard Controller　C4-5B

This versatile controller can be used with a wide variety of equipment. The front dial permits free adjustment of vibrations to ensure optimum performance for the application at hand.

Standard Specifications

Standard Specifications and Application Table

Model	C4-5B
Power source	100/110V 200V/220V 50/60Hz (Shared）
Output	DC5A (full wave and half wave)
Weight	0.2kg
Applicable equipment	Vibrators	Packers	Previous controller models
	V-2B V-4C V-10A	-	C4-5B (full wave) AC side
	V-20B V-30C VG-60 VG-80	VP-30C VGP-60 VGP-80	C4-5B (half wave) RC side

Standard color: Munsell 5Y7/ 1.
Plastic case is not fully enclosed; avoid use in dusty areas.
Install the controller at a dust-free area to avoid functional disorder.
Install the controller at a vibration-free area.

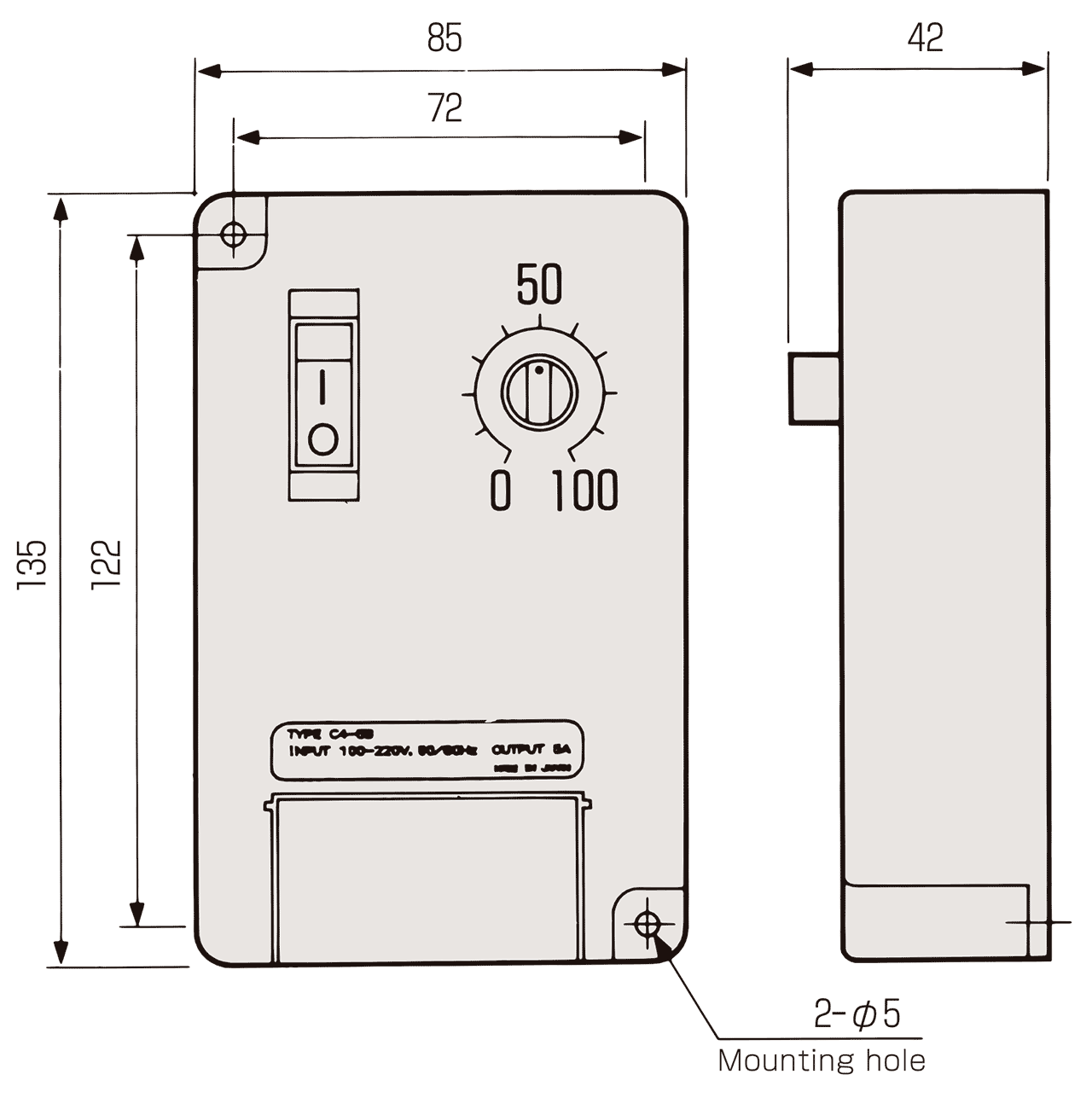

Outer Dimensions

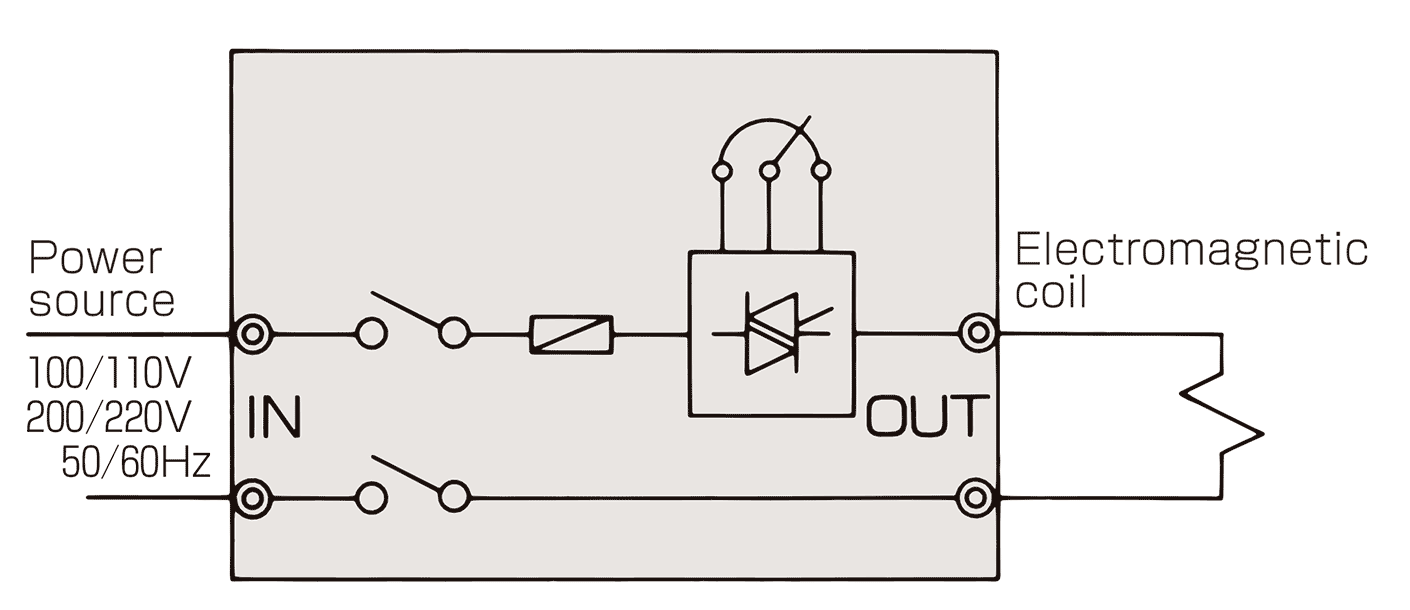

Connection Diagram

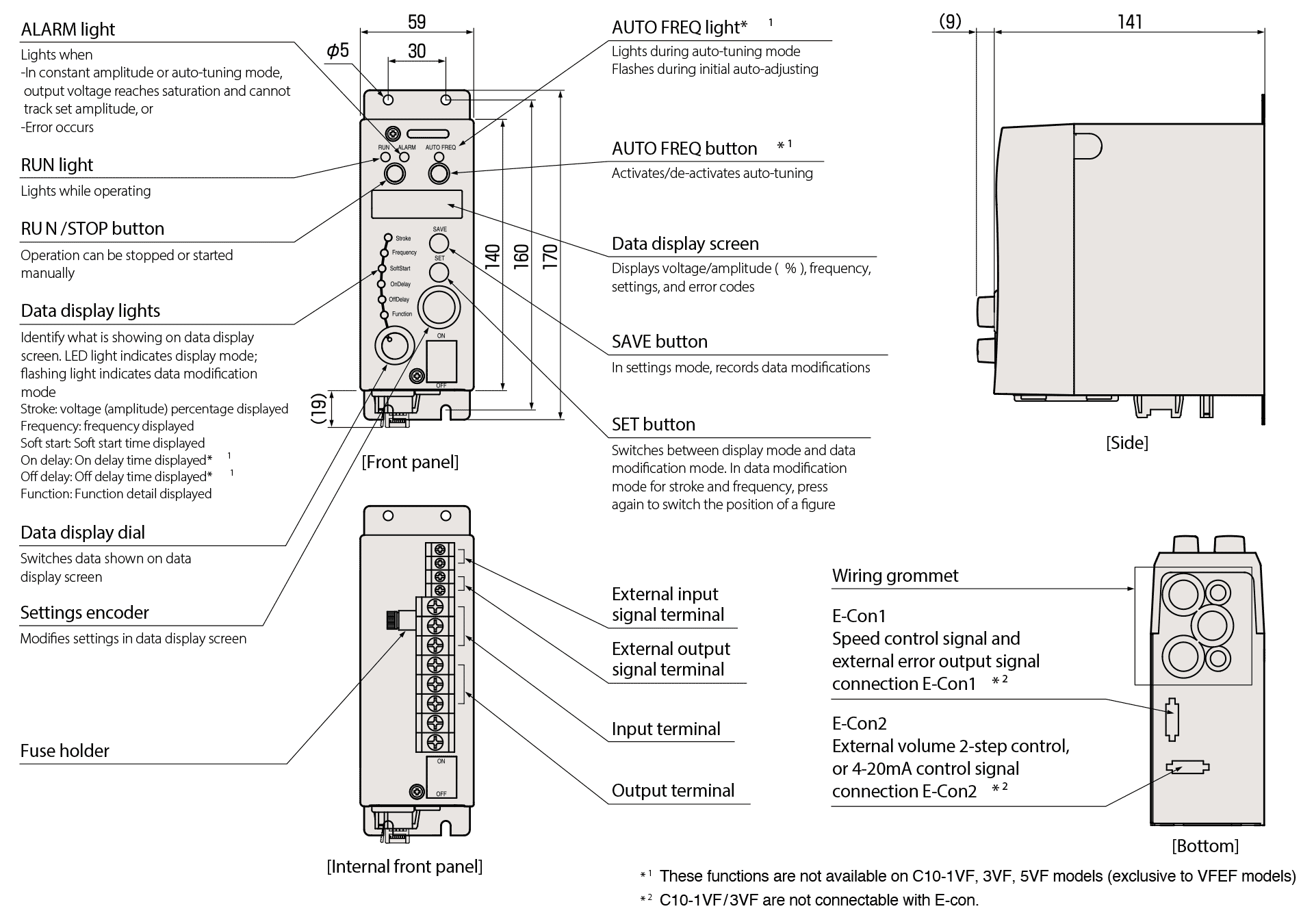

C10 series Variable-Frequency Digital Controller

Easy tuning without the need for plate spring adjustment. CE Marking conformed product
*Required to be installed inside the control box treated with Noise filter and IP4X to make product comply to CE Marking.

Specifications

Standard Specifications

Model		C10-1VCF	C10-3VF
Input Power Source		AC200~230V±10%, AC100~120V±10% 50/60Hz
Output	Control system	PWM system
	Voltage	0~190V（for AC 200V input） 0~95V（for AC 100V input） Optional unit C10-TR allows output voltage in 0-190V range
	Vibration frequency	Half wave: 45~90Hz
	Max. current	1A	3A
Operating Modes	Constant voltage mode	Frequency, output voltage set manually
Additional features	Speed selector	Selection of up to 4 amplitude settings by means of external signal *A connector is included for C10-1VCF
	Start/stop control	Start/Stop control by external signal
	Output signal	Output signal synchronized to parts feeder operation
	Soft start	Start-up time　0.2~4.0sec
Noise tolerant voltage		Above 1000V
Ambient temperature		0~40ﾟC
Ambient humidity		10~90％ (no condensation)
Gross weight (kg)		0.8
Loss		15W（for AC200/220V input）
Applicable feeder type		Small vibrating feeder CF series (CF-1,CF-2,CF-3) Water resistant electro magnetic feeder WCF series (WCF-2A,WCF-3)	LF-30, LF-40, CF-4, WCF-3
Option unit		Connectable to C10-TR
