Vibrator
Hopper clogging and arching can be cleared away in one shot.
Simply by attaching this highly efficient vibrator to hoppers, bins, chutes, etc., material blockages, arching, and other problems are solved, and the material flows out smoothly without clogging. Two types of vibrators are available depending on the structure, and the optimum type can be selected according to the applicable material and operating conditions. In addition, there is a vibratory packer that is ideal for can and bottle filling operations.
Example of Application
Guidelines for Vibrator Applications
| Sheet thickness of hopper/chute (mm) |
Hopper capacity(TON) | Vibrator model | ||||
|---|---|---|---|---|---|---|
| V Series | VG Serie | RV Serie | ||||
| Standard | Maximum | 2P | 4P | |||
| 0.6 | 0.8 | 0.02 | V-2B | - | - | - |
| 0.8 | 1.0 | 0.04 | V-4C | - | - | - |
| 1.0 | 1.6 | 0.1 | V-10A | - | RV-042 | - |
| 1.6 | 3.2 | 0.35 | V-20B | - | RV-072D | - |
| 3.2 | 4.5 | 1 | V-30C | - | RV-12E | RV-064 |
| 4.5 | 6 | 3 | - | VG-60 | RV-22D | RV-14D1 |
| 6 | 9 | 20 | - | VG-80 | RV-42E | RV-24D1 |
| 9 | 12 | 50 | - | - | RV-72E | RV-44D1 |
| 12 | 19 | 100 | - | - | - | RV-74D1 |
| 19 | 25 | 150 | - | - | - | RV-154B3 |
Please make you selection on the basis of sheet thickness.
Outer Dimensions of Attachment Base
Dimension Table
Unit: mm
| Model | Diagram number |
Sheet thickness of base |
A | B | C | R | d |
|---|---|---|---|---|---|---|---|
| V - 2B | (1) | 14 | 20 | 30 | - | 5 | M10 |
| V - 4C | (1) | 16 | 38 | 58 | - | 10 | M12 |
| V -10A | (1) | 16 | 65 | 80 | - | 10 | M12 |
| V -20B | (2) | 16 | 250 | 150 | 220 | 35 | M10 |
| V -30C | (2) | 16 | 350 | 200 | 310 | 45 | M14 |
| VG-60 | (3) | 16 | 300 | - | 160 | - | M12 |
| VG-80 | (3) | 22 | 350 | - | 195 | - | M16 |
Installation Examples

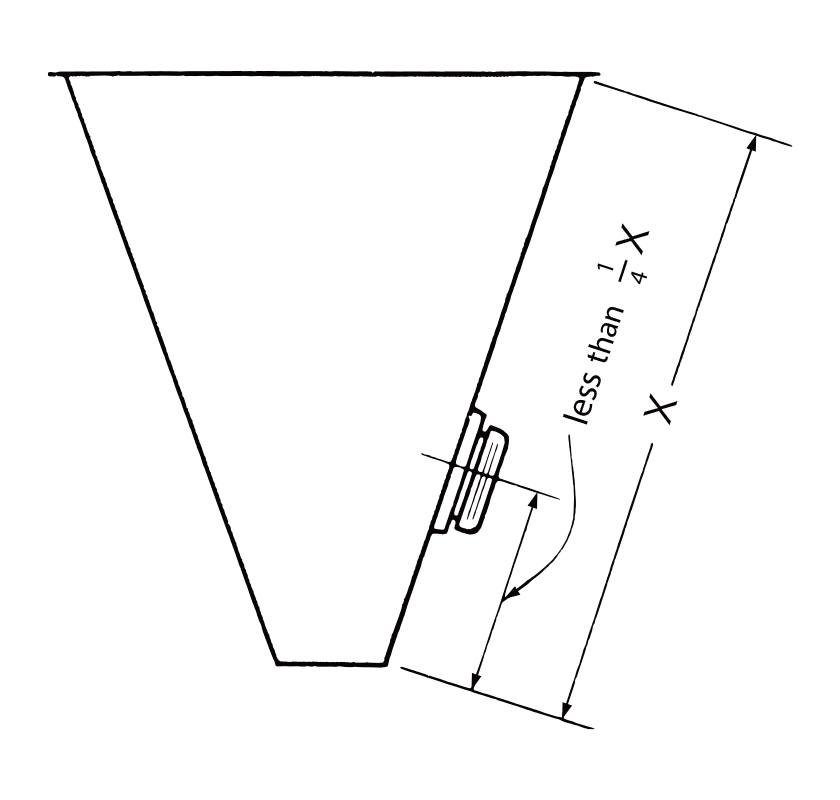

Angled hopper

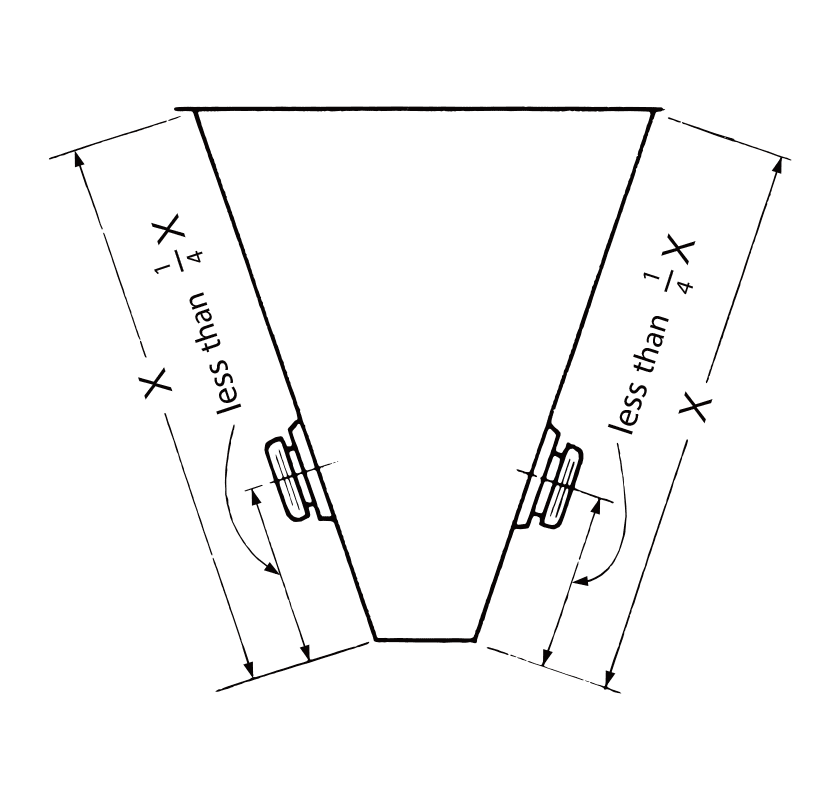

Angled hopper

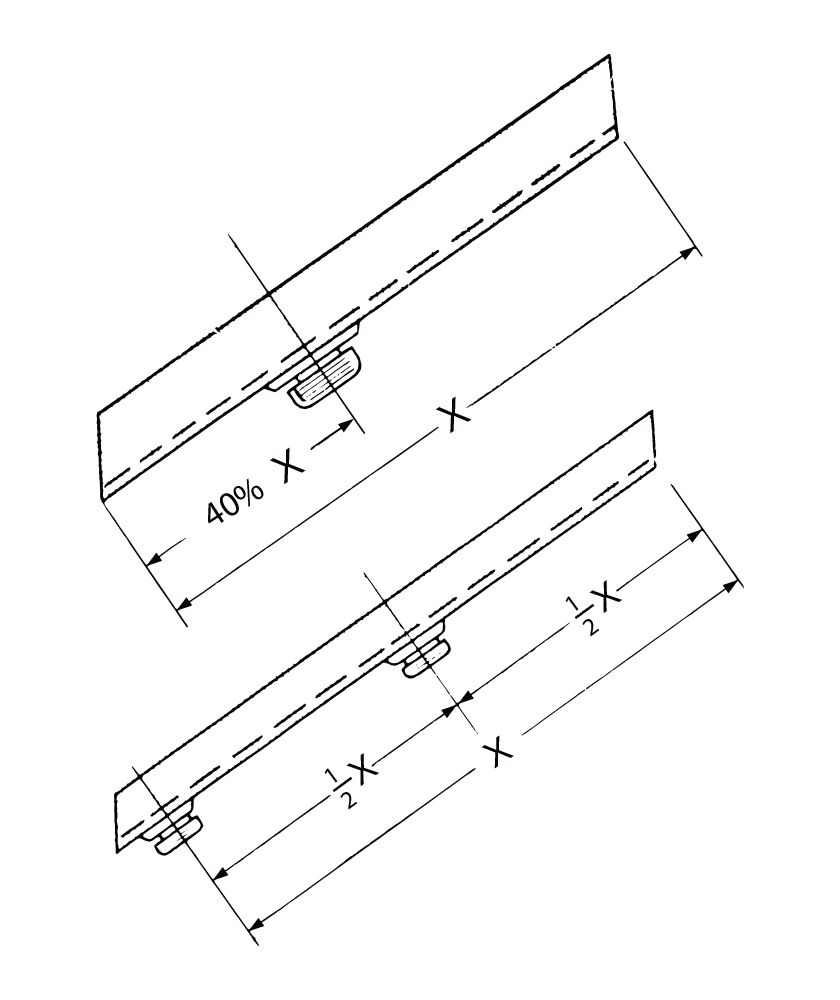

Chute

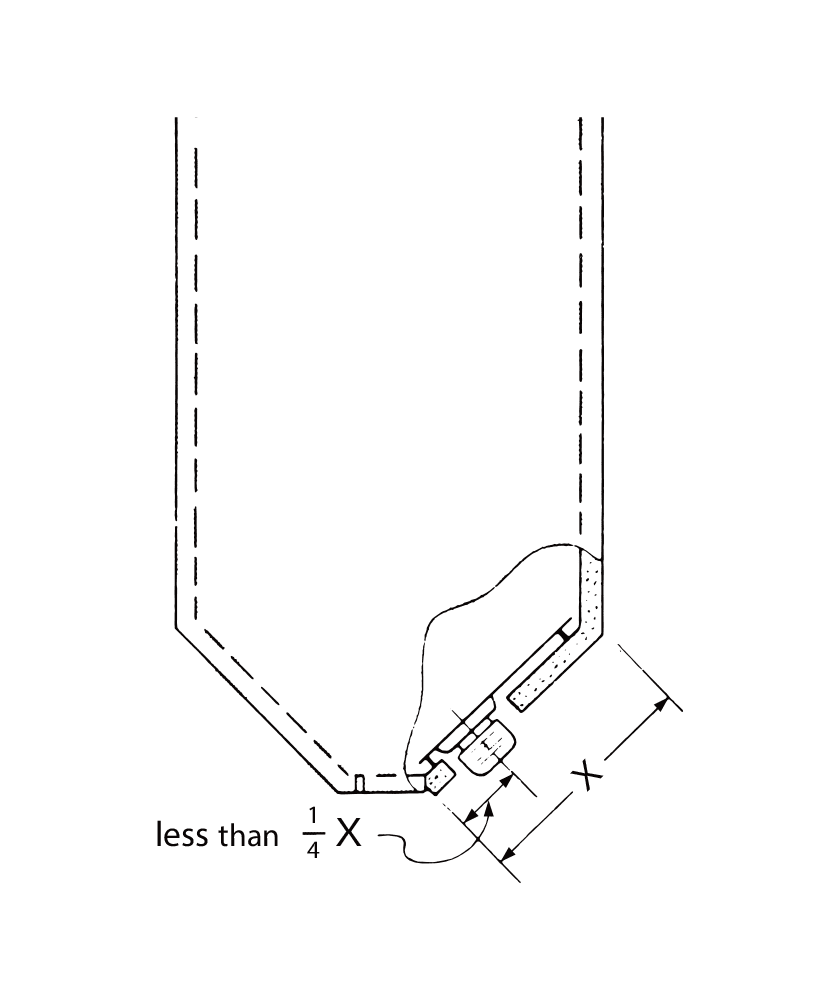

Hopper with vibrating board
X= the range within the best attachment position is found
Application Example
Unclogging
Easy to install with a vibrator. Just turn on the switch to unclog and restore smooth flow.

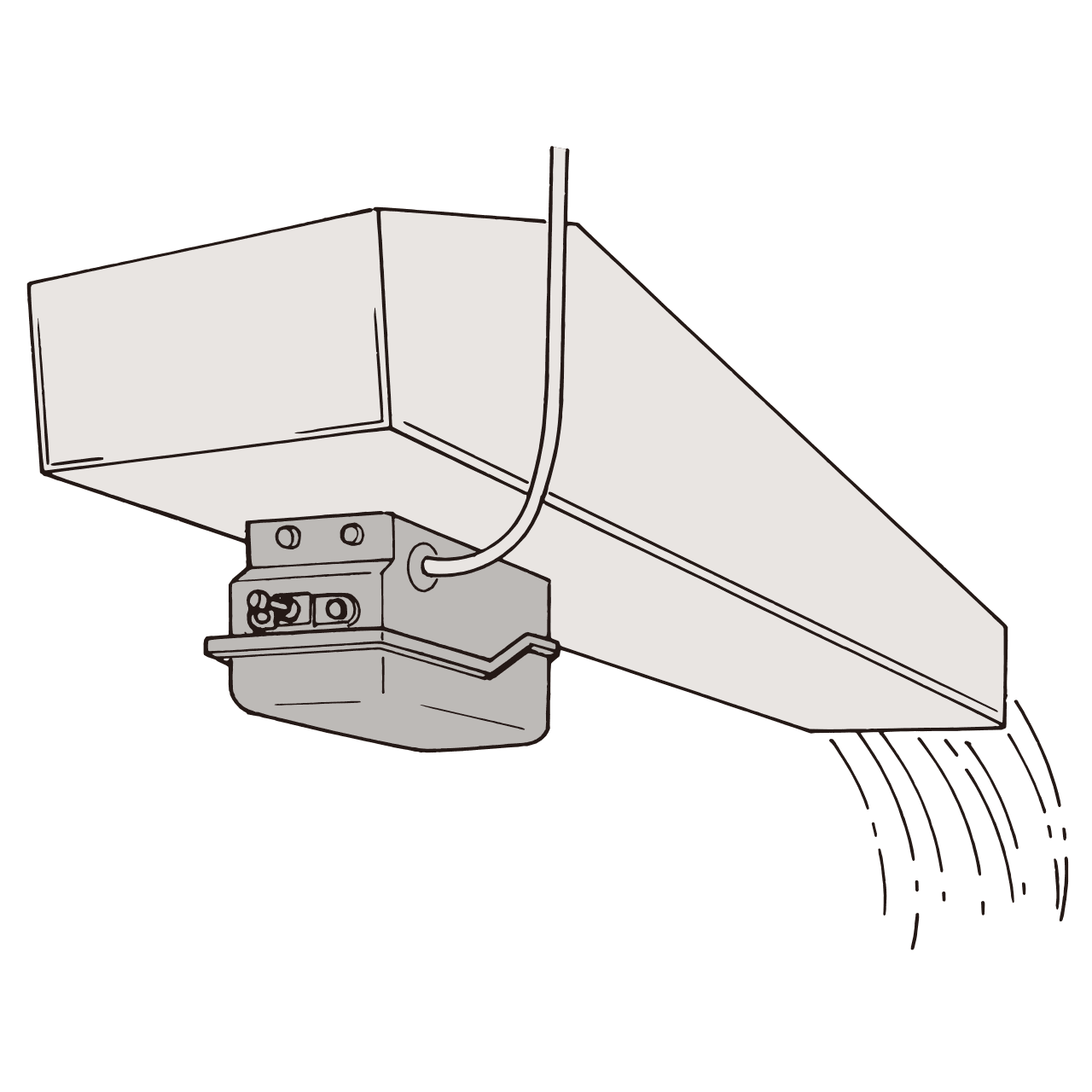

V type for Small capacity chute

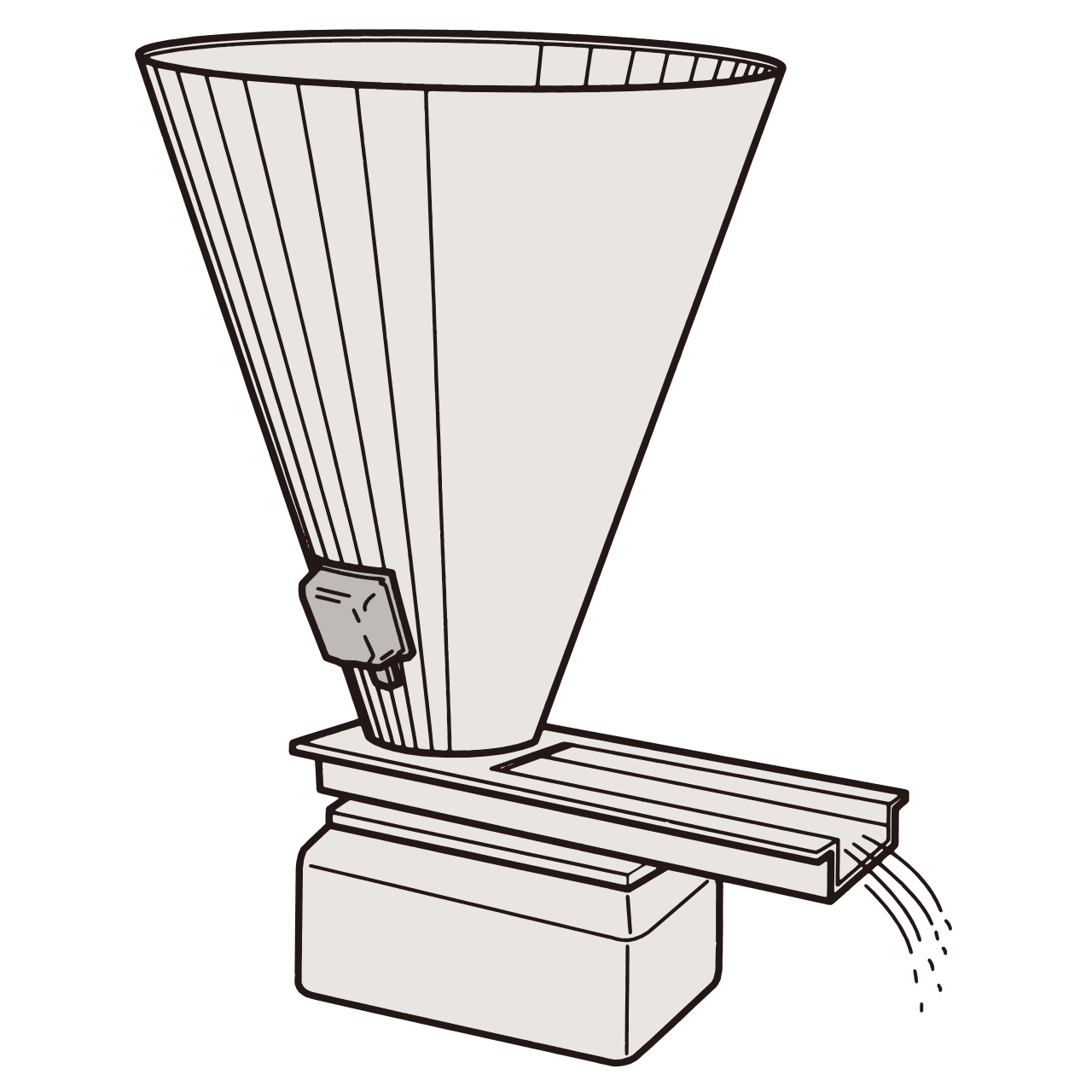

V type for Small capacity hopper
Filling the container
Instead of manual labor, the vibrator shakes the container. Powerful for filling bulky materials, molding, and de-shaping.

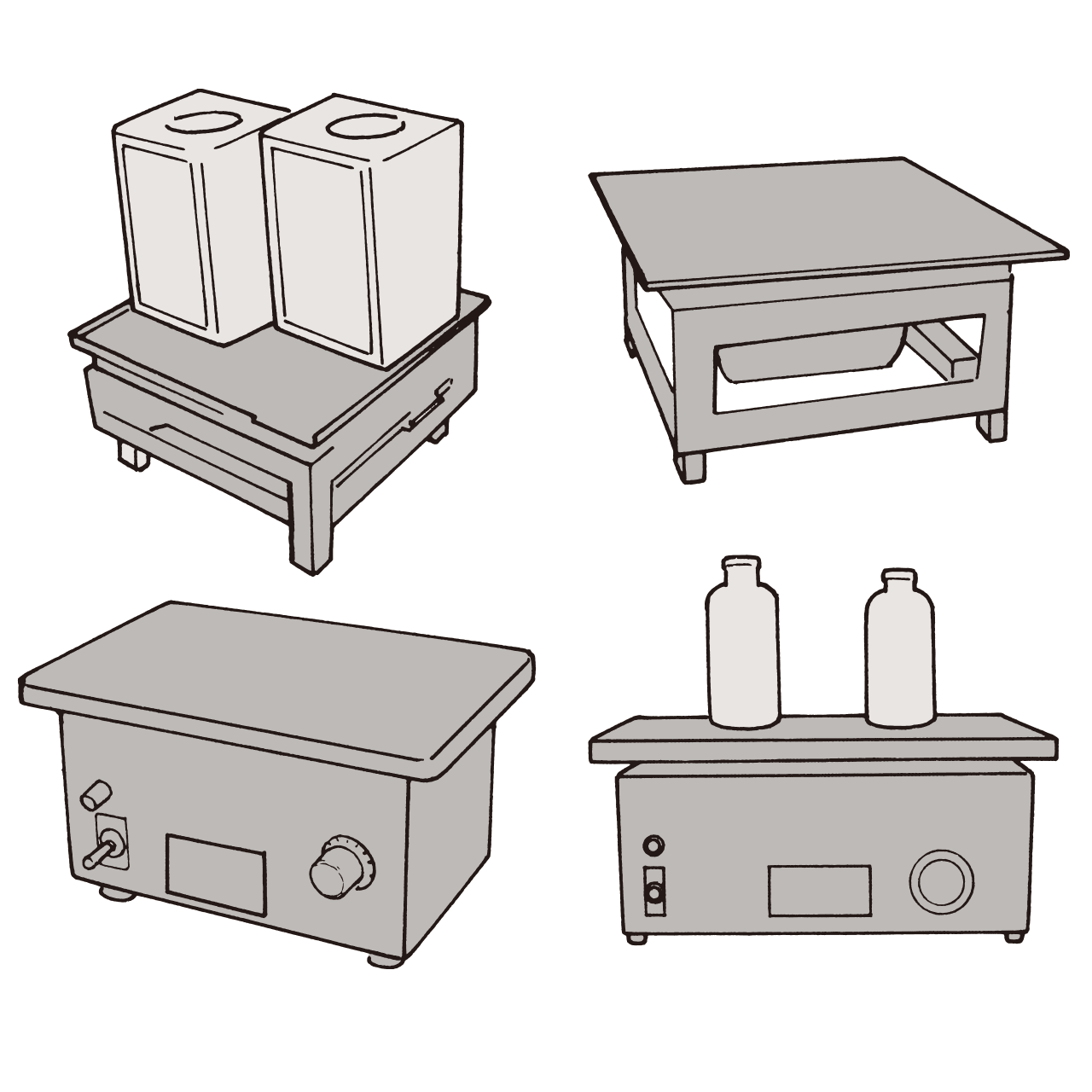

Various vibratory repackers for filling operations

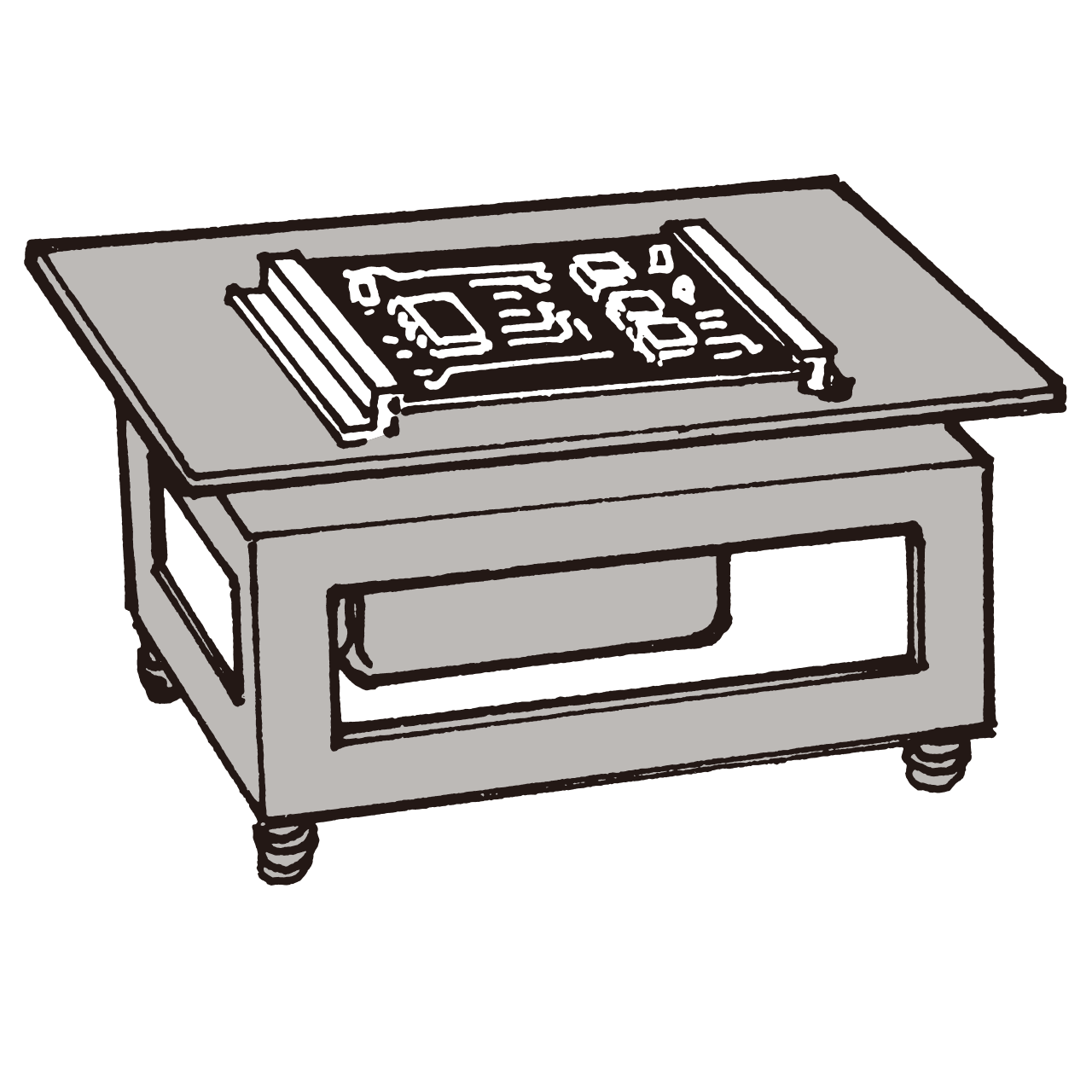

RV type for vibration resistance testing of products
