V series Vibrators
An alternating, half-wave, pulsating current generates collisional electromagnetic oscillations which, in combination with the resonance of a leaf spring, produce powerful and effective vibrations. Appropriate for small to medium-sized hoppers, the V Series vibrators offer outstanding reliability and durability because they have no parts that are subject to wear. The V-20B and V-30C feature exclusive E-type moving core and CFRP leaf spring that combine the advantages of a compact size with strong vibrations. The V Series vibrators can be used in temperatures ranging from 60℃ to -15℃.
Type
V-2B, V-4C, V-10A, V-20B, V-30C
Specifications
Standard Specifications
| Model | Voltage (V) |
Frequency (Hz) |
Frequency (Hz) |
衝撃力 (N) |
Current (A) |
Voltage × current (VA) |
Gross Weight (kg) |
Appropriate controller (model) |
|---|---|---|---|---|---|---|---|---|
| V-2B | 100 | 50 | 100 | 39 | 0.26 | 20 | 1.2 | C4-5B |
| 110 | 60 | 120 | ||||||
| V-4C | 100 | 50 | 100 | 98 | 0.8 | 80 | 1.9 | C4-5B |
| 110 | 60 | 120 | ||||||
| 200 | 50 | 100 | 0.4 | |||||
| 220 | 60 | 120 | ||||||
| V-10A | 100 | 50 | 100 | 255 | 1.5 | 150 | 3.7 | C4-5B |
| 110 | 60 | 120 | ||||||
| 200 | 50 | 100 | 0.75 | |||||
| 220 | 60 | 120 | ||||||
| V-20B |
100/110 （共用） |
50/60 （共用） |
50/60 | 588 | 2 | 200 | 6.5 | C4-5B |
| 200/220 （共用） |
50/60 （共用） |
50/60 | 1 | |||||
| V-30C | 200 | 50 | 50 | 1764 | 2.5 | 500 | 17 | C4-5B |
| 220 | 60 | 60 |
Standard color Munsell 2.5G7/2 (V-4C, V-10A, V-20B have synthetic resin covers painted Munsell N-6).
Insulation class Ａ
Cable
V-2B/VCT, 2-core, 0.75mm2(O.D. 9.8mm), length 0.5m. V-4C-V-20B/VCT, 2-core, 0.75mm2(O.D. 9.8mm), length 0.5m. V-30C/VCT, 2-core, 1.25mm2(O.D. 10.6mm), length 0.5m.
"V-2B, V-4C, and V-10A can be operated without a controller, but the intensity of vibration cannot be adjusted. Please use in combination with the applicable controller."
Outer Dimensions
V Series Vibrators V-2B
Unit: mm

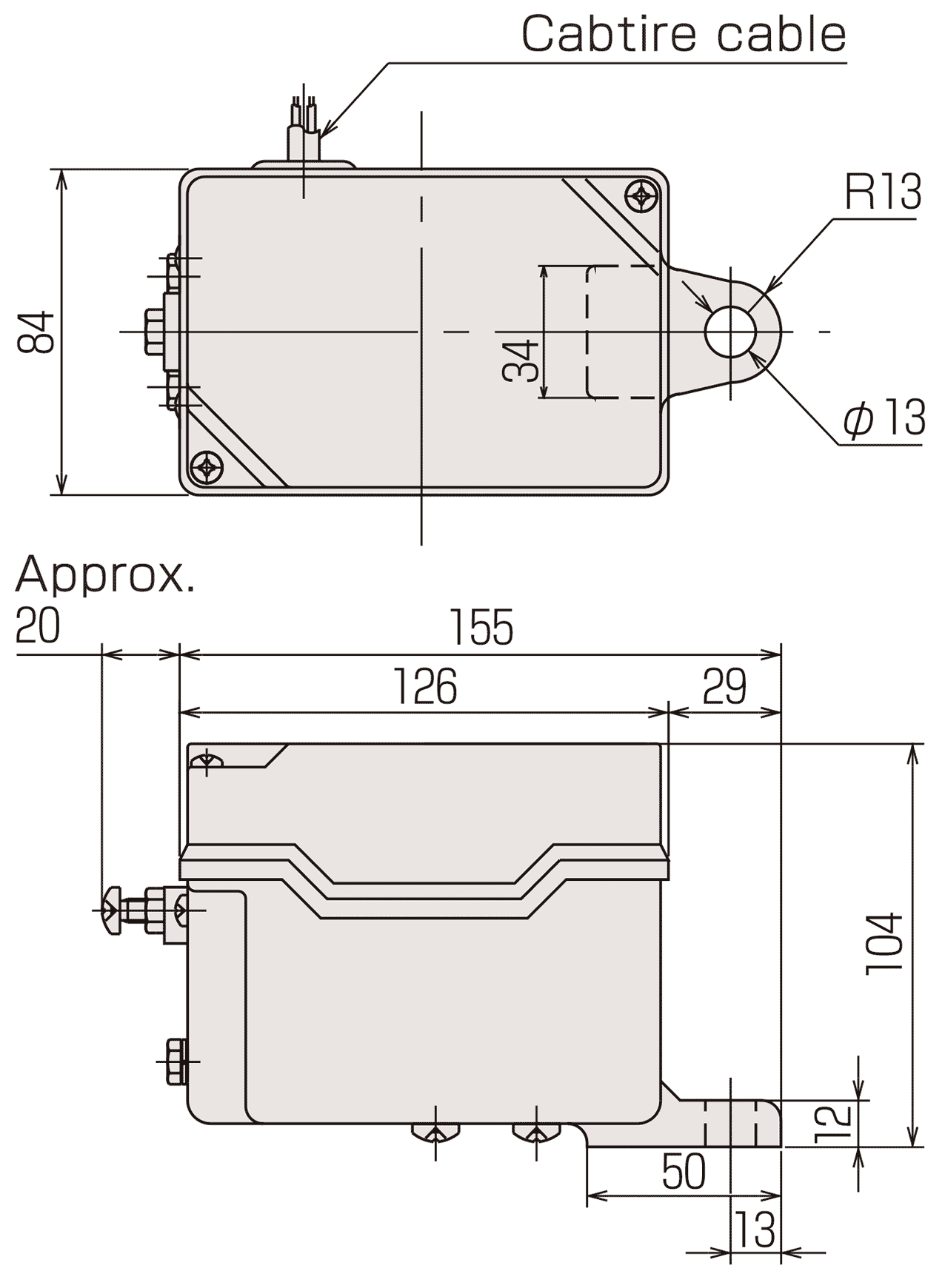

V Series Vibrators V-4C
Unit: mm
V Series Vibrators V-10A
Unit: mm
V Series Vibrators V-20B
Unit: mm

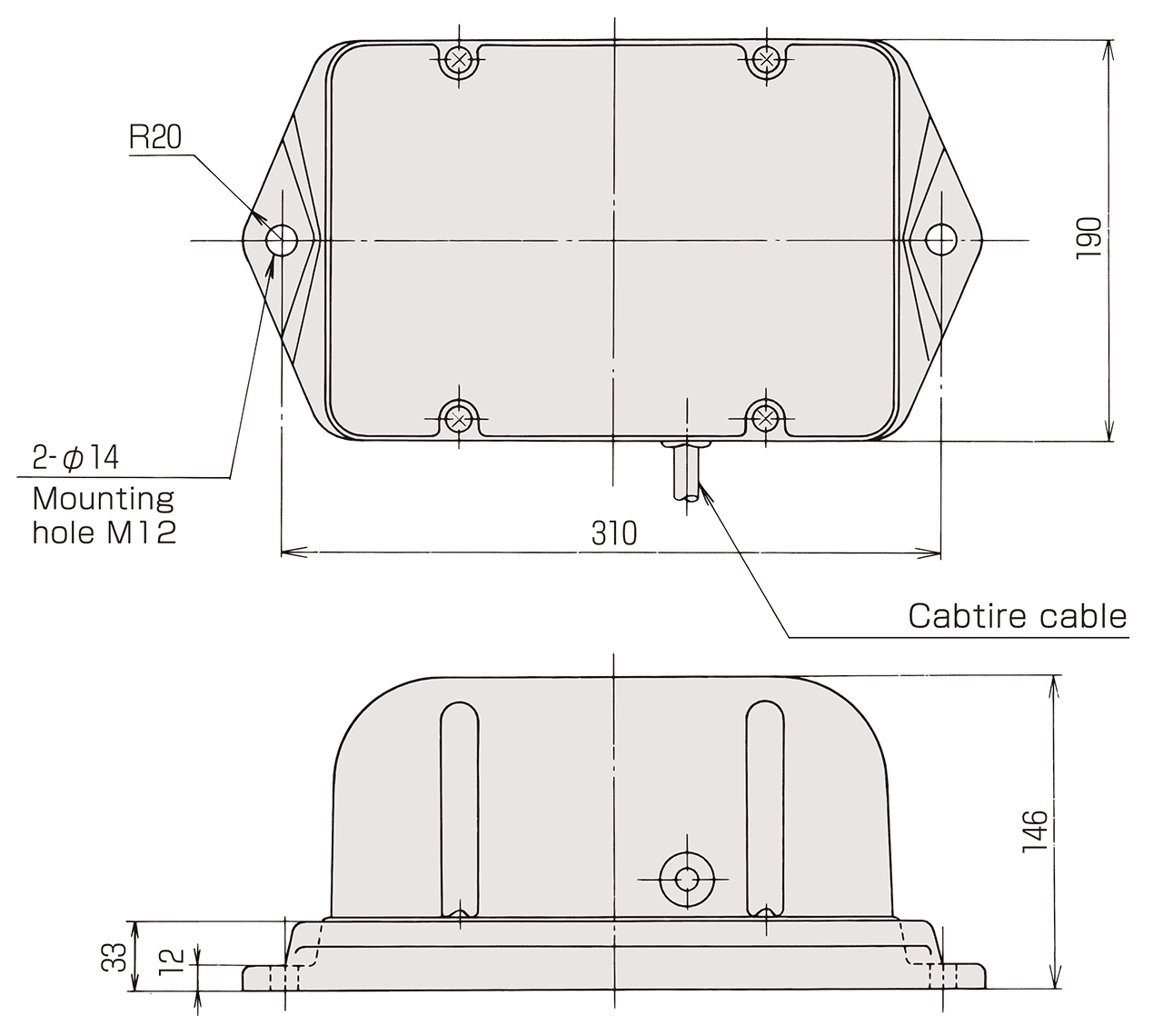

V Series Vibrators V-30C
Unit: mm
