VP Series Vibratory Packers
Cans and bottles on the table are vibrated to fill powder and granular materials such as chemicals and chemical materials at high speed. It demonstrates excellent capability for speeding up can and bottle filling operations and equalizing the content volume.
Type
VP-4D/15D, VP-30C, VGP-60/80
VP-40
Specification
Standard Specifications
| Models | Voltage (V) |
Frequency (Hz) |
Vibrations (VPM) |
Maximum load capacity (kg) |
Current (for200V) (A) |
Rating | Standard table material | Weight (kg) |
Controller |
|---|---|---|---|---|---|---|---|---|---|
| VP-4D | 100 | 50 | 3000 | 4 | 0.8 | Continuous | Wood | 8 | Onboard |
| 110 | 60 | 3600 | |||||||
| 200 | 50 | 3000 | 0.4 | ||||||
| 220 | 60 | 3600 | |||||||
| VP-15D | 100 | 50 | 3000 | 10 | 2.8 | Continuous | Wood | 50 | Onboard |
| 110 | 60 | 3600 | |||||||
| 200 | 50 | 3000 | 1.4 | ||||||
| 220 | 60 | 3600 | |||||||
| VP-30C* | 200 | 50 | 3000 | 40 | 2.5 | Continuous | Steel plate | 40 | C4-5B |
| 220 | 60 | 3600 | |||||||
| VGP-60* | 200 | 50 | 3000 | 80 | 1.8 | Continuous | Steel plate | 65 | C4-5B |
| 220 | 60 | 3600 | |||||||
| VGP-80* | 200 | 50 | 3000 | 160 | 3.0 | Continuous | Steel plate | 110 | C4-5B |
| 220 | 60 | 3600 |
Standard color: Munsell 2.5G7/2
Items marked with an asterisk(*) are manufactured to order.
Dimensions
Vibratory Packers VP-4D/15D
Dimensions Table
Unit: mm
| Models | Table size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| VP-4D | 254X178 | 147 | 19 | 180 | 220 | 90 | 133 |
| VP-15D | 508X356 | 225 | 16 | 420 | 460 | 276 | 310 |

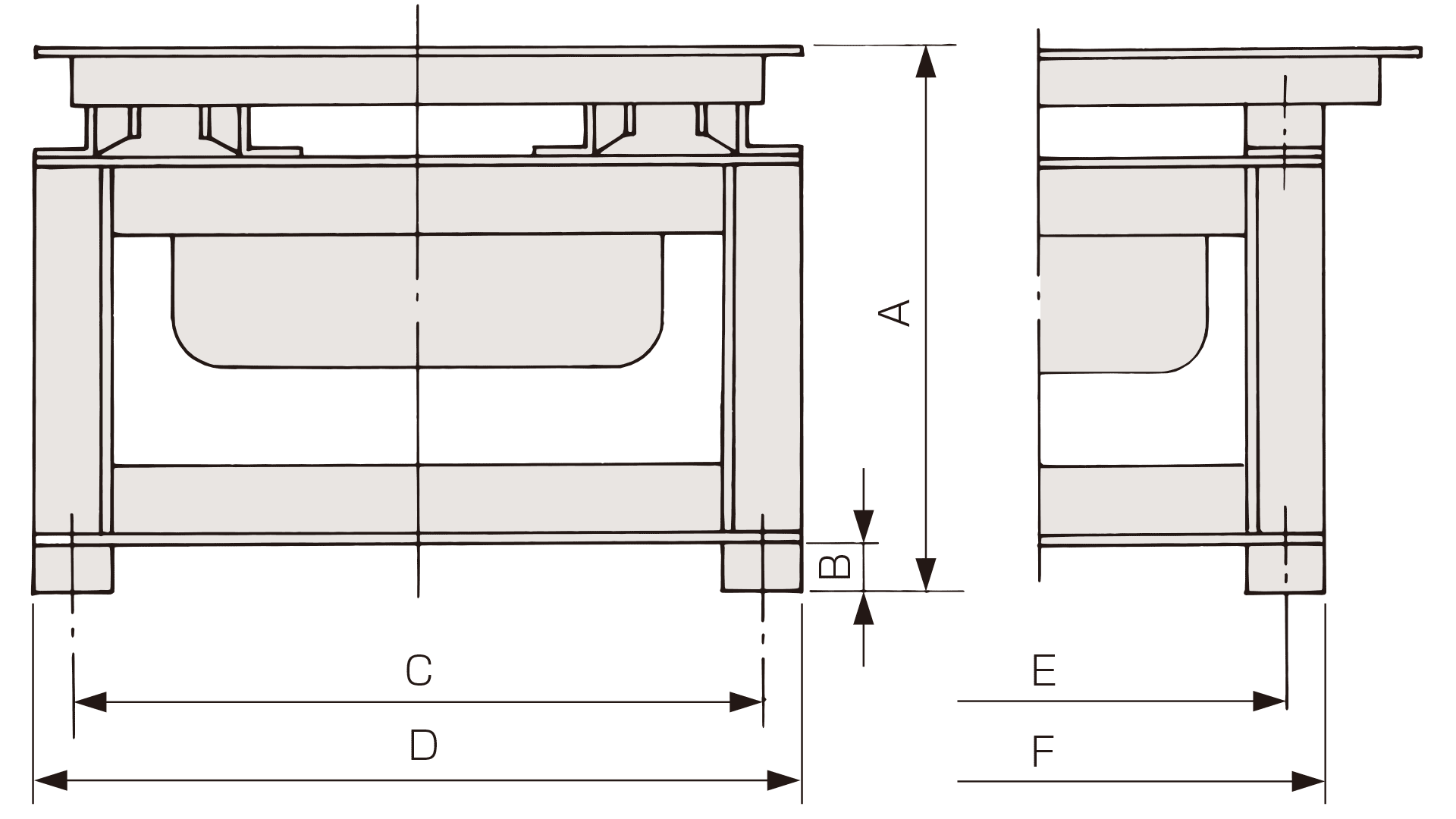

Vibratory Packers VP-30C
Dimensions
Unit: mm
| Models | Table size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| VP-30C | 400X400 | 280 | 25 | 360 | 400 | 260 | 300 |
Vibratory Packers VGP-60/80
Dimensions Table
Unit: mm
| Models | Table size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|---|
| VGP-60 | 500X500 | 320 | 25 | 370 | 450 | - | - |
| VGP-80 | 600X600 | 350 | 25 | 470 | 550 | - | - |
