Controller

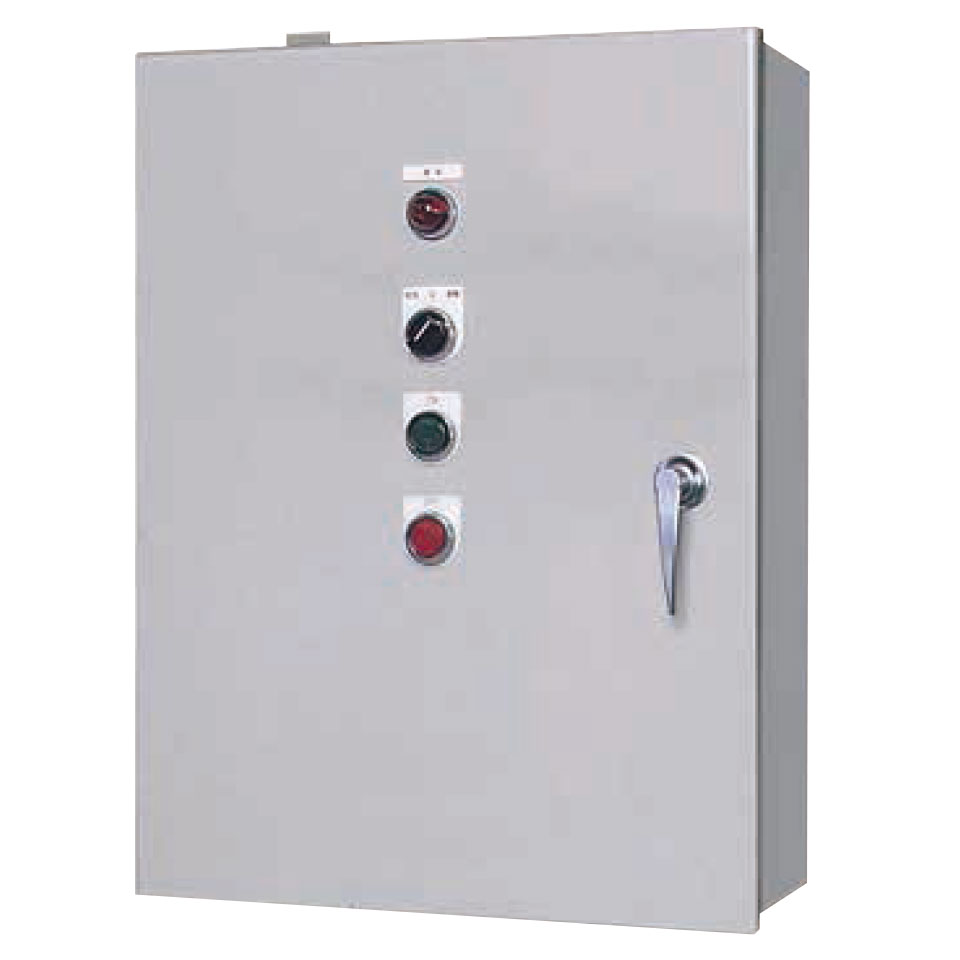

Controller for RV Conveyor and Spiral Elevator
Start up and shut down can be easily controlled with one button.
A reverse phase braking force occurs at the time of vibrating motor shut down, which makes a conveyor quick stop. This prevents free-shaking and material flow.
Furthermore, reversed phase braking time can be adjusted by a timer, which enables to stop vibration in a suitable time.
Specifications
Standard Specifications
|
Model |
Rating (50/60Hz) Current capacity (A) |
Gross weight (kg) |
Applicable load type | |
|---|---|---|---|---|
| 200/220V | 400/440V | |||
| ORV-14×2R | 3/2 | - | 20 | RV-14D |
| ORV-24×2R | 5/3 | - | 20 | RV-24D |
| ORV-44×2R | 6/4 | - | 20 | RV-44D |
| ORV-74×2R | 9/5 | - | 20 | RV-74D |
| ORV-154×2R | 15/8 | - | 30 | RV-154D |
| ORV-224×2R | 21/11 | - | 30 | RV-224D |
| ORV- 78×2R | 10/6 | - | 20 | RV-78D |
| ORV-158×2R | 19/10 | - | 30 | RV-158D |
| ORV-228×2R | 17/9 | - | 30 | RV-228D |
| ORV-378×2R | 27 | - | 60 | RV-378D |
| ORV-378×2R | - | 14 | 30 | RV-378D |
| ORV-558×2R | 31 | - | 60 | RV-558D |
| ORV-558×2R | - | 16 | 30 | RV-558D |
| ORV-758×2R | 41/21 | - | 60 | RV-758D |
１. All ratings are continuous.
２. All models are indoor wall type, and higher models are dustproof design.
３. The coating color of inner and outer surface is both Munsell 5Y7/1.

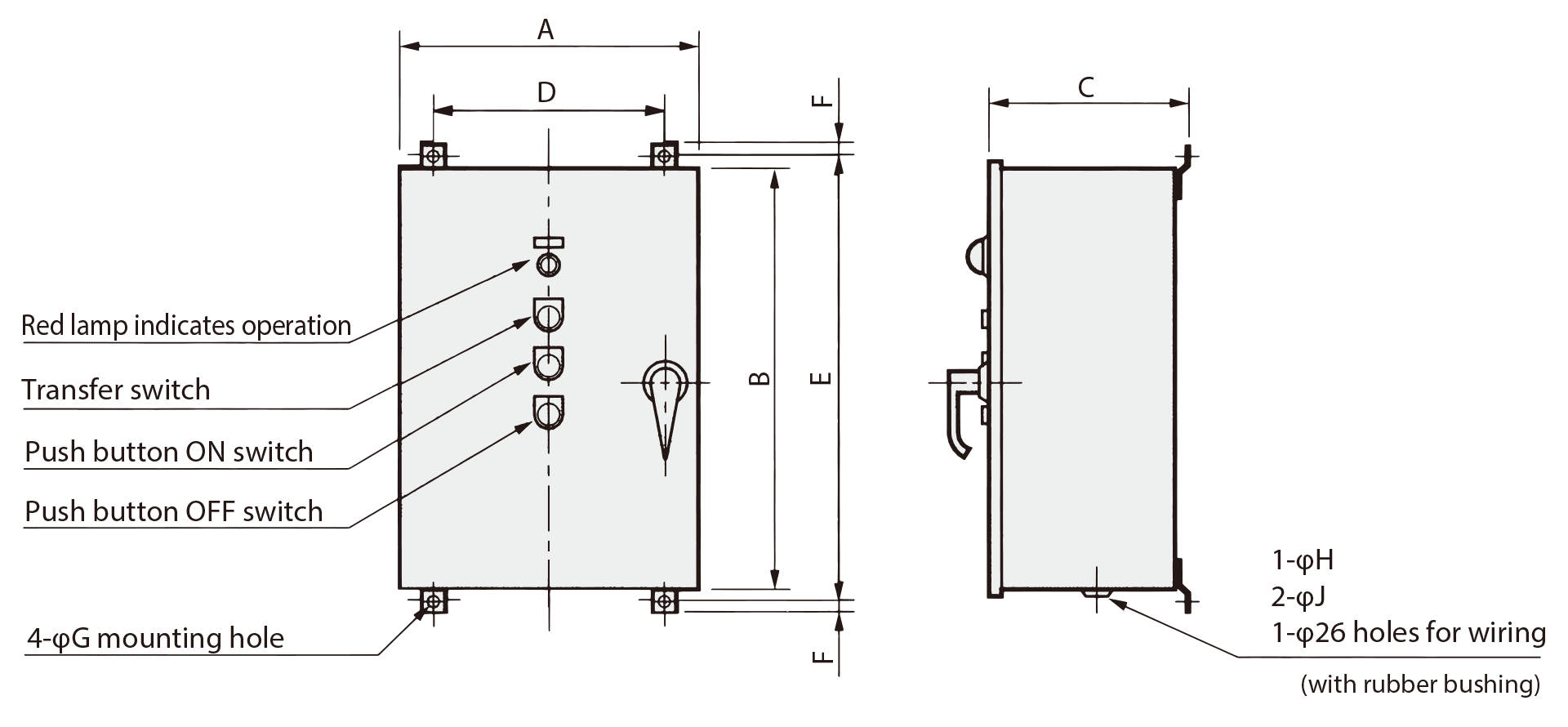

Dimensions/Connection Diagram
Dimensions/Connection Diagram
Unit: mm
| Model | A | B | C | D | E | F | G | H | J |
|---|---|---|---|---|---|---|---|---|---|
| ORV-14×2R | 400 | 500 | 220 | 300 | 540 | 15 | 11 | 26 | 26 |
| ORV-24×2R | 400 | 500 | 220 | 300 | 540 | 15 | 11 | 26 | 26 |
| ORV-44×2R | 400 | 500 | 220 | 300 | 540 | 15 | 11 | 26 | 26 |
| ORV-74×2R | 400 | 500 | 220 | 300 | 540 | 15 | 11 | 26 | 26 |
| ORV-154×2R | 450 | 600 | 220 | 350 | 640 | 20 | 14 | 26 | 26 |
| ORV-224×2R | 450 | 600 | 220 | 350 | 640 | 20 | 14 | 26 | 26 |
| ORV- 78×2R | 400 | 500 | 220 | 300 | 540 | 15 | 11 | 26 | 26 |
| ORV-158×2R | 450 | 600 | 220 | 350 | 640 | 20 | 14 | 26 | 26 |
| ORV-228×2R | 450 | 600 | 220 | 350 | 640 | 20 | 14 | 26 | 26 |
| ORV-378×2R (200/220V) | 500 | 800 | 270 | 400 | 840 | 20 | 14 | 42 | 26 |
| ORV-378×2R (400/440V) | 450 | 600 | 220 | 350 | 640 | 20 | 14 | 26 | 26 |
| ORV-558×2R (200/220V) | 500 | 800 | 270 | 400 | 840 | 20 | 14 | 42 | 26 |
| ORV-558×2R (400/440V) | 450 | 600 | 220 | 350 | 640 | 20 | 14 | 26 | 26 |
| ORV-758×2R | 500 | 800 | 270 | 400 | 840 | 20 | 14 | 42 | 42 |
