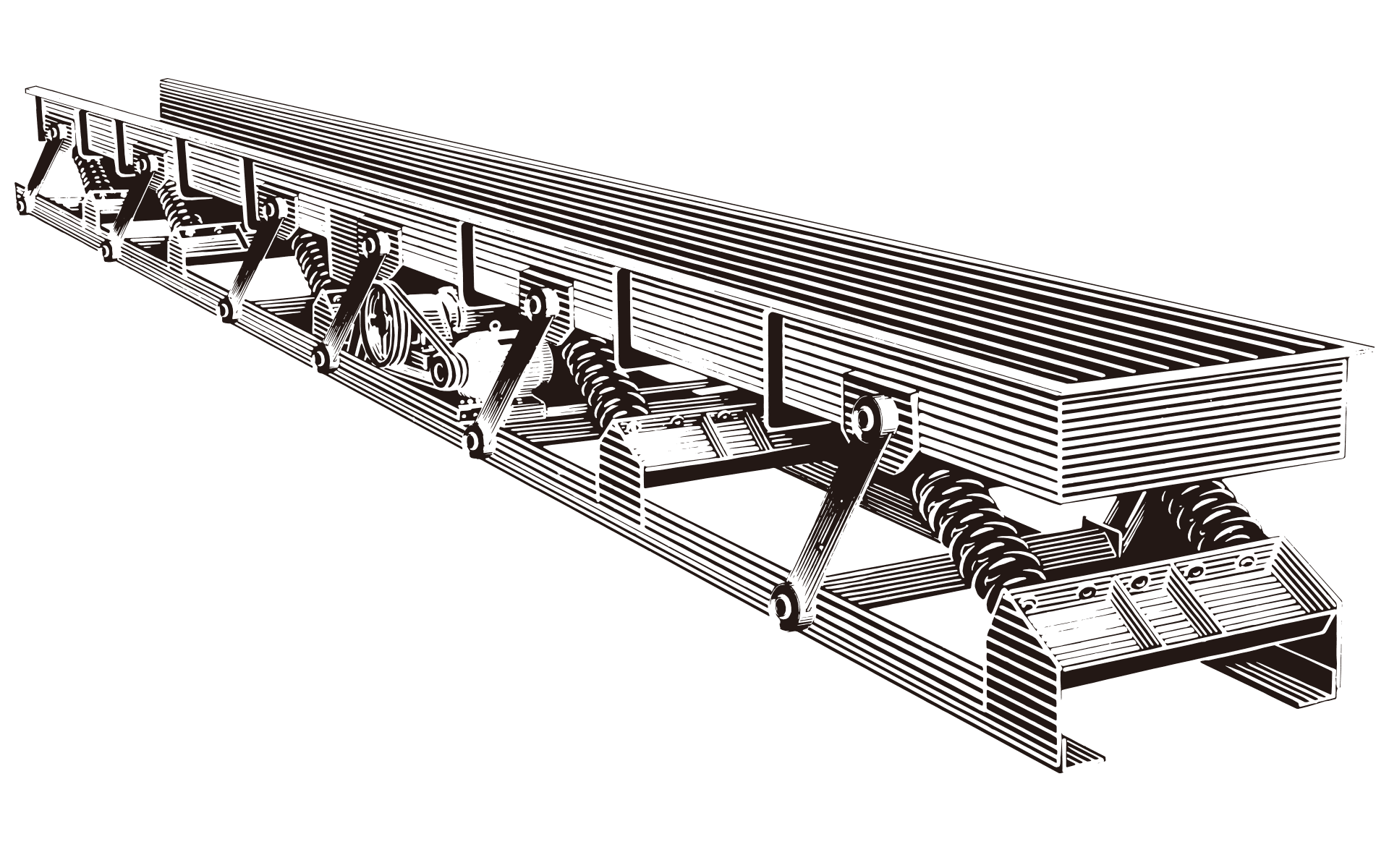

MV Conveyors MVC
Tough construction/Low cost
Simple, low cost version. Suited to long distance, narrow bed conveyance. Accommodates drying, cooling etc.
Features
- Ideal for specialized applications
Optimal for special applications where other operations such as drying, cooling, dewatering, or screening of materials are performed during conveying. - Simple structure
The extremely simple structure allows for easy installation, maintenance, and inspection. - Suitable for long distance conveyance
It can be divided into sections of approximately 5 to 8m for connection and assembly, and can be used as a long-distance conveyor. - Two versions to suit different
For a system that reduces the reaction force on the mounting base, there are two types of balanced type: series-balanced type and parallel-balanced type.
A strong foundation should be set up to prevent vibration from being transmitted to the mounting area and floor.

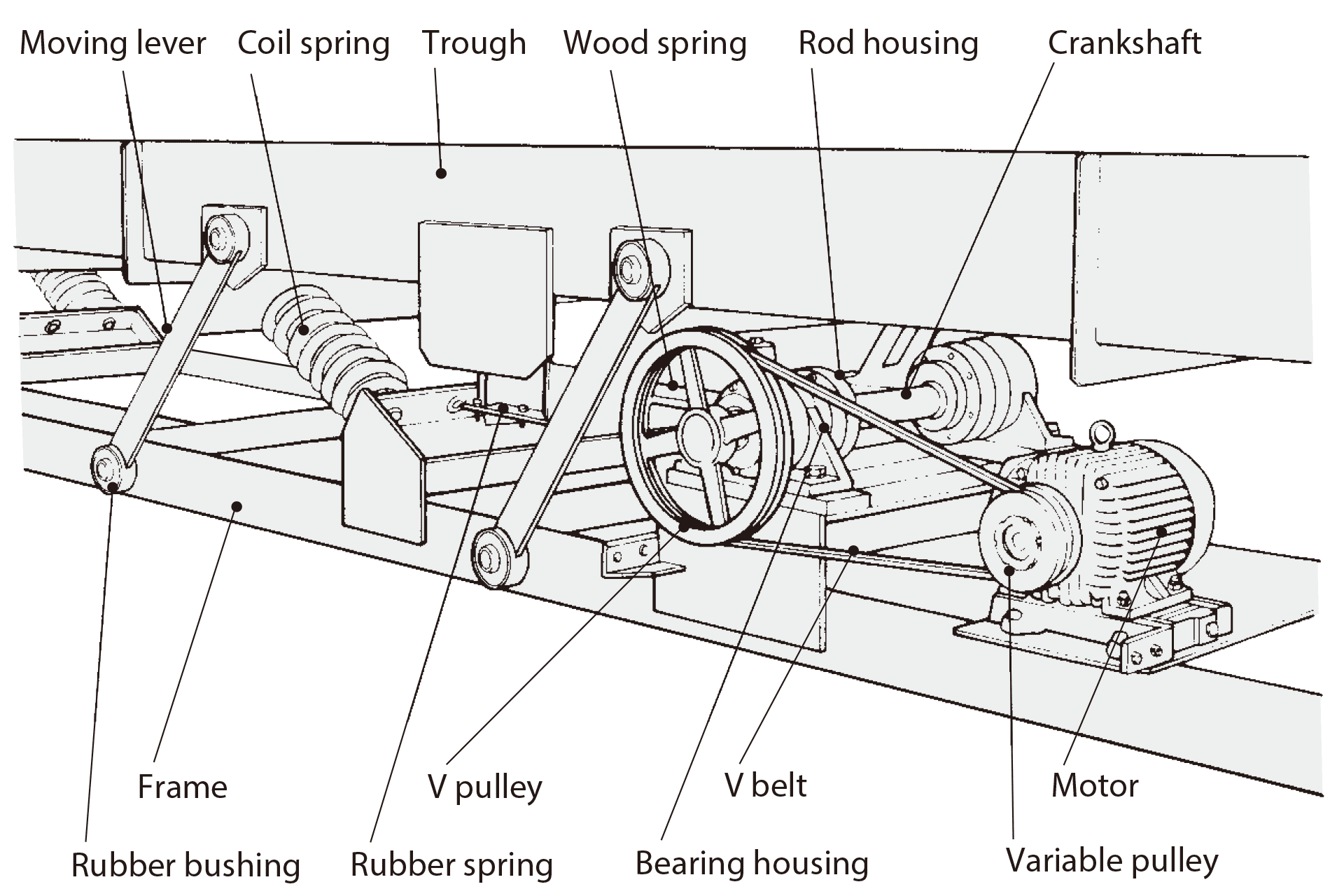

Structural diagram
Specifications
Standard Specifications
| Model | Capacity (T/Hr) |
Vibration per min (Hz) |
Trough length (m) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | ||||||
| MVC- 150 | 9 | 6.7~10.8 | Motor (kW) |
0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | ||
| Gross weight (kg) |
350 | 430 | 500 | 600 | 730 | 850 | 1000 | 1150 | 1350 | 1500 | |||||
| MVC- 300 | 20 |
6.7~10.8 |
Motor (kW) |
0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 3.7 | ||
| Gross weight (kg) |
450 | 550 | 650 | 800 | 950 | 1100 | 1300 | 1550 | 1800 | 2000 | |||||
| MVC- 450 | 35 | 6.7~10.8 | Motor (kW) |
0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 | ||
| Gross weight (kg) |
500 | 600 | 750 | 900 | 1050 | 1250 | 1500 | 1750 | 2100 | 2300 | |||||
| MVC- 600 | 50 | 6.7~10.8 | Motor (kW) |
0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | ||
| Gross weight (kg) |
600 | 700 | 850 | 1000 | 1250 | 1450 | 1700 | 2000 | 2400 | 2650 | |||||
| MVC- 750 | 65 | 6.7~10.8 | Motor (kW) |
- | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 | - | - | ||
| Gross weight (kg) |
- | 850 | 950 | 1100 | 1350 | 1600 | 1900 | 2300 | - | - | |||||
| MVC- 900 | 80 | 6.7~10.8 | Motor (kW) |
- | 1.5 | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | - | - | ||
| Gross weight (kg) |
- | 950 | 1100 | 1300 | 1500 | 1800 | 2150 | 2550 | - | - | |||||
| MVC-1050 | 95 | 6.7~10.8 | Motor (kW) |
- | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 | 3.7 | 3.7 | - | - | ||
| Gross weight (kg) |
- | 1100 | 1250 | 1450 | 1800 | 2200 | 2500 | 3000 | - | - | |||||
１. Capacity is for conveying sand (apparent specific gravity 1.5, moisture content 4-6%) in a horizontal trough.
２. Special configurations may require a different motor model.
３. Must be mounted on a firm base as vibration is transmitted through mountings to the floor.

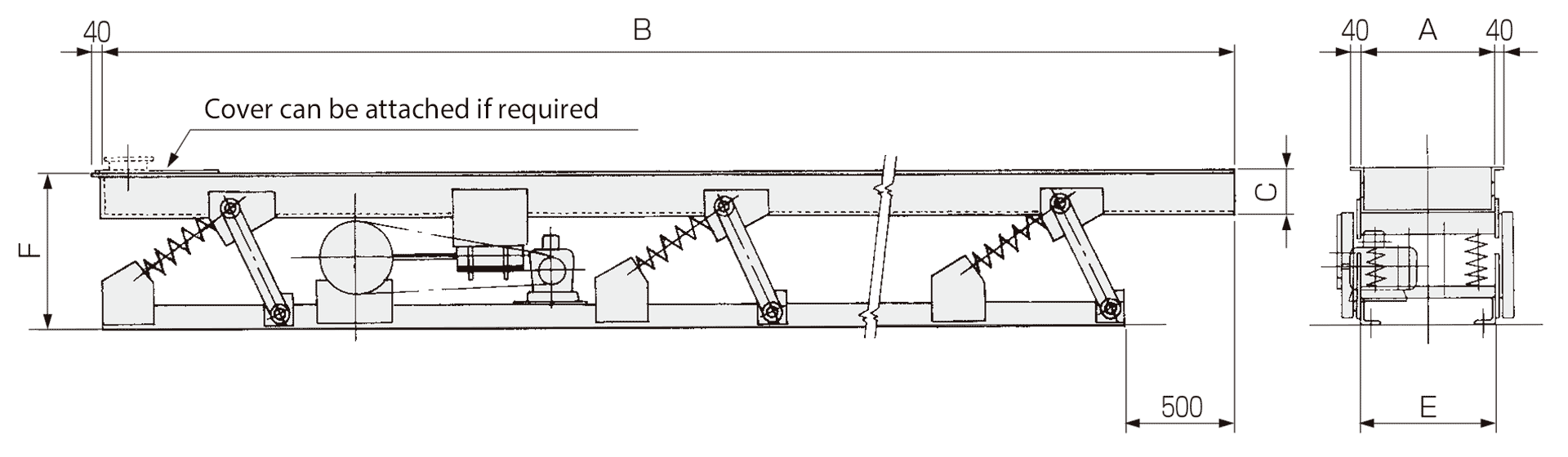

Outer Dimensions
Dimension Table
Unit: mm
| Model | A | B | C | D | F | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MVC- 150 | 150 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 18000 | 20000 | 120 | 330 | 610 |
| MVC- 300 | 300 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 18000 | 20000 | 140 | 300 | 630 |
| MVC- 450 | 450 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 18000 | 20000 | 180 | 450 | 670 |
| MVC- 600 | 600 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | 18000 | 20000 | 180 | 600 | 670 |
| MVC- 750 | 750 | - | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | - | - | 180 | 750 | 670 |
| MVC- 900 | 900 | - | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | - | - | 180 | 900 | 670 |
| MVC-1050 | 1050 | - | 4000 | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 | - | - | 180 | 1050 | 670 |
When installing inlet and outlet, consider B as standard dimension.
