MVCB Type Balanced Conveyor

Simple Structure to Prevent Environmental Vibration

Balanced conveyors are designed to prevent environmental vibration by the use of a simple structure to prevent vibration from being transmitted to the floor. An effective balance of trough and counterweight neutralizes vibration, and the equipment is also mounted on vibration-damping springs, minimizing the degree of vibration transmitted to the floor or base.

Features

1. No vibration is transmitted to base or floor
   A stable, vibration-neutralizing action prevents vibration from being transmitted to the base or floor, eliminating the need for a special base for installation.
2. Low consumption of electricity
   The vibration generated by the eccentric crank action is amplified by resonating springs, therefore the consumption of electricity is low.
3. Minimal downtime and straightforward servicing and maintenance
   The simple structure contains only a few rotating parts, or parts subject to wear. Therefore, servicing and maintenance are straightforward. Basically,
   however, it's hardly breakdowns anyway.
4. Easily adapted for fully sealed conveyance
   The trough can be easily adapted to a fully sealed type, to prevent finely powdered material from dispersal in the air, thus keeping the working environment clean and wholesome.
5. Numerous applications
   Processes such as screening, draining, drying and cooling, can be efficiently undertaken during conveyance, making the conveyor suitable for a wide range of applications.

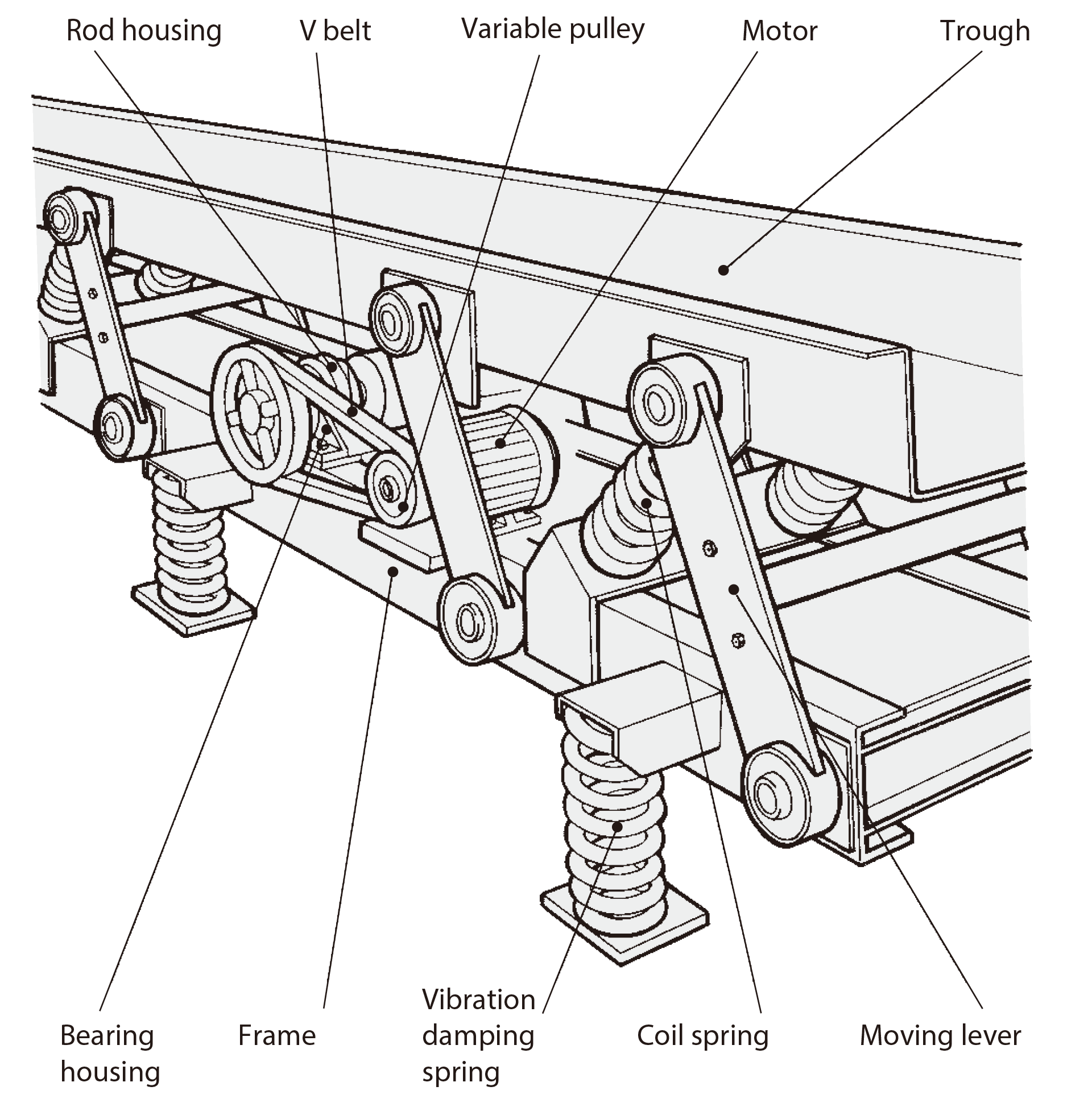

Structural diagram

Specifications

Standard Specifications

１. Max capacity is for conveying sand (apparent bulk density 1.5, moisture content 4-6%) in a horizontal trough.
２. Motor capacity and gross weight may vary according to the handling material type, and use of liner.
３. Motor capacity and gross weight assume use of liner without cover.

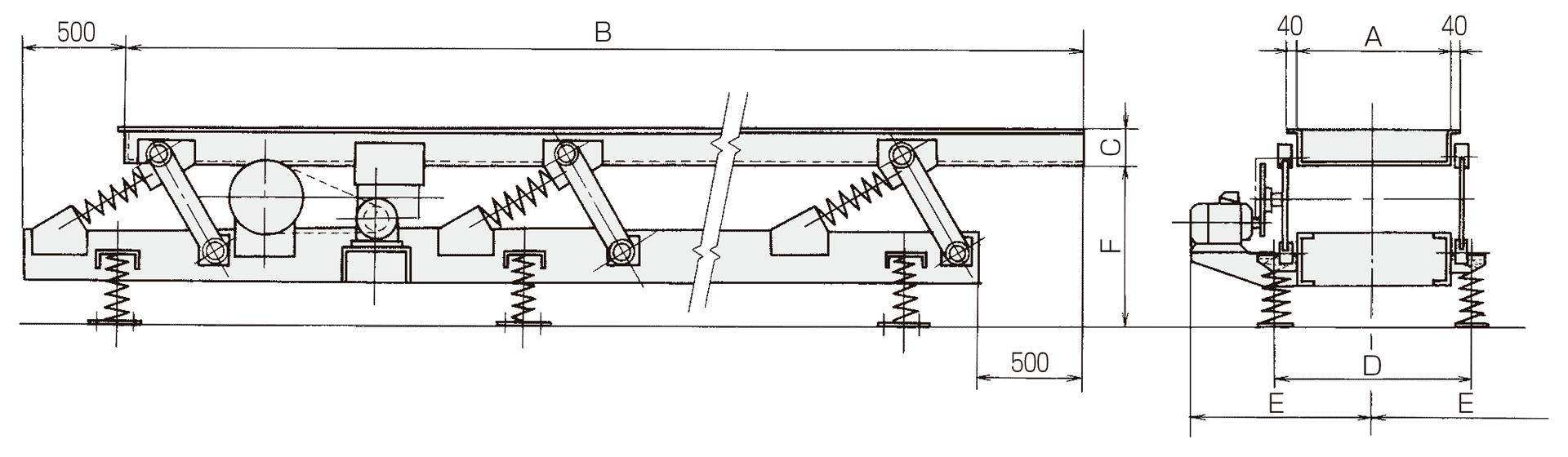

Outer Dimensions

Dimension Table

Unit: mm

Measure "F" for reference.
