RV Type Rotary Vibrating Conveyor

Forced-vibration type that can move sitcky materials smoothly.

RV conveyors have rotary RV rotary vibrator mounted directly on the side of the trough to generate a forced vibration. The vibration is generated by the motor-driven rotating action of unbalanced weights in the rotary vibrator, and is transmitted directly to the trough.

Features

Smooth conveyance of sticky materials
The forced vibration type prevents the amplitude of the trough from increasing, even with adhesive materials, and ensures stable operation.
Adjustable flow rate
Flow rate is easily adjusted by the angle of unbalanced weight at the vibration motor (Adjust the angle when the conveyor is stopped) .
Best suited for short distance carriage
The conveyor is suitable for short distance carriage up to five meters, such as between equipments.
Variety of installing options
The conveyor is commonly installable by suspension, but floor-mounting option and other various installation methods are possible.

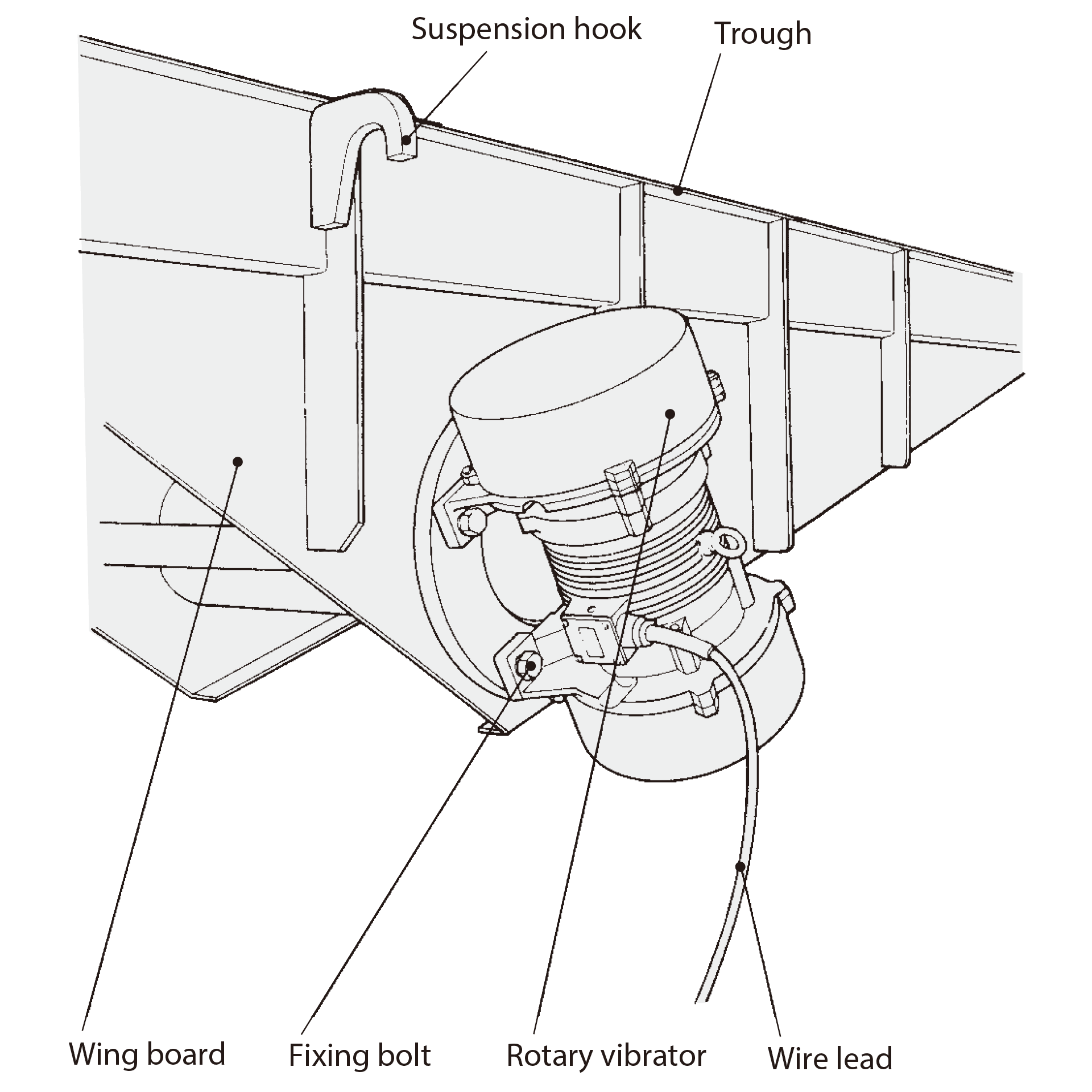

Structural diagram

Specifications

Standard Specifications

Model	Capacity (T/Hr)	Vibration per min. (Hz) 50Hz/60Hz	Gross weight (kg)	Rotary vibrating model (2 sets)	Applicable controller
RVF-150-1.2	8	24.2/29.2	85	RV-14D	ORV-14×2R
RVF-150-1.8	8	24.2/29.2	105	RV-14D	ORV-14×2R
RVF-150-2.4	8	24.2/29.2	155	RV-24D	ORV-24×2R
RVF-150-3.0	8	24.2/29.2	175	RV-24D	ORV-24×2R
RVF-300-1.2	15	24.2/29.2	100	RV-14D	ORV-14×2R
RVF-300-1.8	15	24.2/29.2	155	RV-24D	ORV-24×2R
RVF-300-2.4	15	24.2/29.2	185	RV-24D	ORV-24×2R
RVF-300-3.0	15	24.2/29.2	210	RV-24D	ORV-24×2R
RVF-300-4.0	15	24.2/29.2	285	RV-44D	ORV-44×2R
RVF-450-1.2	25	24.2/29.2	140	RV-24D	ORV-24×2R
RVF-450-1.8	25	24.2/29.2	175	RV-24D	ORV-24×2R
RVF-450-2.4	25	24.2/29.2	210	RV-24D	ORV-24×2R
RVF-450-3.0	25	24.2/29.2	270	RV-44D	ORV-44×2R
RVF-450-4.0	25	24.2/29.2	330	RV-44D	ORV-44×2R
RVF-600-1.8	40	24.2/29.2	195	RV-24D	ORV-24×2R
RVF-600-2.4	40	24.2/29.2	260	RV-44D	ORV-44×2R
RVF-600-3.0	40	24.2/29.2	305	RV-44D	ORV-44×2R
RVF-600-4.0	40	24.2/29.2	570	RV-74D	ORV-74×2R
RVF-600-5.0	40	24.2/29.2	1080	RV-154B	ORV-154×2R
RVF-750-1.8	60	24.2/29.2	245	RV-44D	ORV-44×2R
RVF-750-2.4	60	24.2/29.2	295	RV-44D	ORV-44×2R
RVF-750-3.0	60	24.2/29.2	525	RV-74D	ORV-74×2R
RVF-750-4.0	60	24.2/29.2	1025	RV-154B	ORV-154×2R
RVF-750-5.0	60	12.1/14.6	1350	RV-158B	ORV-158×2R

１. Max capacity is for conveying sand (apparent bulk density 1.5, moisture content 4-6%) in a horizontal trough.
２. Controller is required for eight poles rotary vibrating motors, to avoid fluctuation force at the time of shutdown.
３. Rotary vibrating motor type may be changed for specialized trough.
４. Floor mounted types are also available.
５. Trough weight is when using uncovered flat bottom liner.

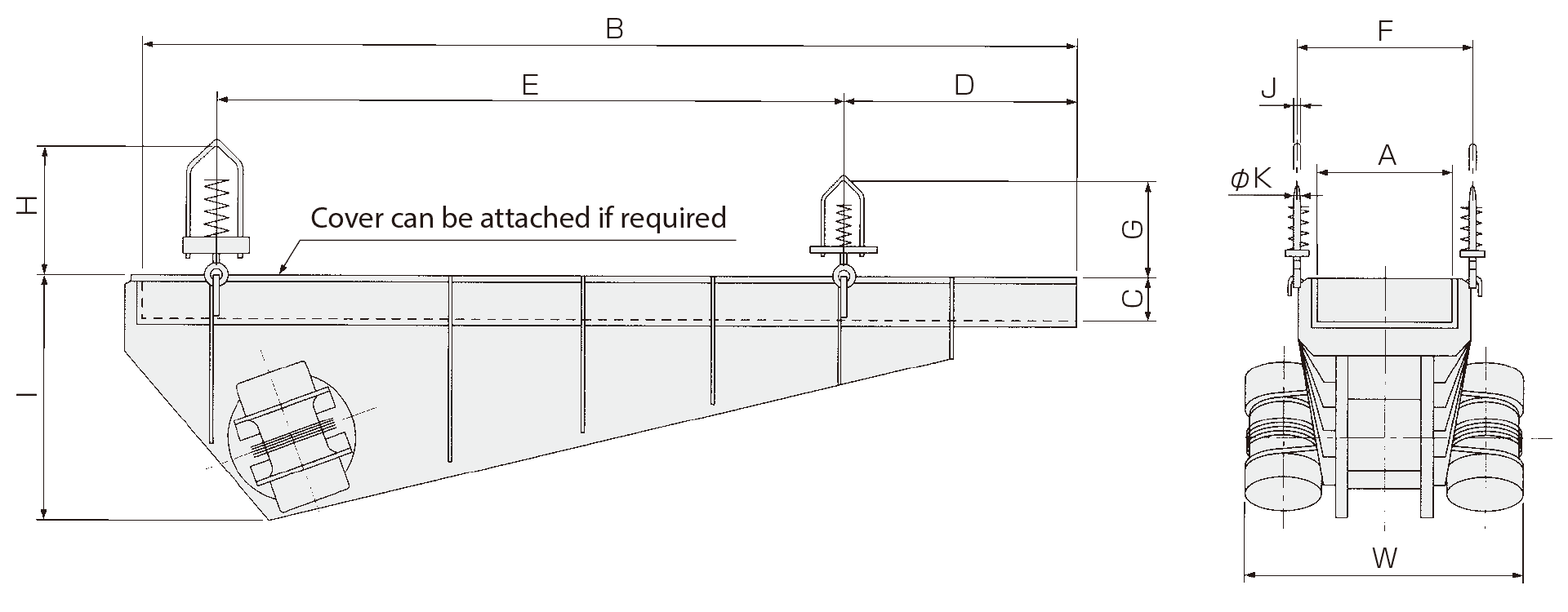

Outer Dimensions

Dimension Table

Unit: mm

Model	A	B	C	D	E	F	G	H	I	J	K	W
RVF-150-1.2	150	1200	100	300	850	248	approx 280	approx 280	approx 460	13	13	approx 550
RVF-150-1.8	150	1800	100	300	1400	248	approx 280	approx 280	approx 540	13	13	approx 550
RVF-150-2.4	150	2400	100	400	1900	248	approx 280	approx 290	approx 540	13	13	approx 580
RVF-150-3.0	150	3000	100	750	2000	248	approx 290	approx 290	approx 600	13	13	approx 580
RVF-300-1.2	300	1200	120	300	850	398	approx 280	approx 280	approx 480	13	13	approx 700
RVF-300-1.8	300	1800	120	300	1400	398	approx 280	approx 290	approx 550	13	13	approx 730
RVF-300-2.4	300	2400	120	400	1900	398	approx 280	approx 290	approx 620	13	13	approx 730
RVF-300-3.0	300	3000	120	750	2000	398	approx 290	approx 400	approx 640	20	13	approx 730
RVF-300-4.0	300	4000	120	850	2900	398	approx 290	approx 420	approx 740	20	13	approx 760
RVF-450-1.2	450	1200	150	300	850	550	approx 280	approx 300	approx 570	13	13	approx 740
RVF-450-1.8	450	1800	150	300	1400	550	approx 300	approx 300	approx 670	13	13	approx 740
RVF-450-2.4	450	2400	150	400	1900	550	approx 300	approx 420	approx 670	20	13	approx 740
RVF-450-3.0	450	3000	150	750	2000	550	approx 300	approx 420	approx 770	20	13	approx 780
RVF-450-4.0	450	4000	150	850	2900	550	approx 420	approx 550	approx 850	30	20	approx 780
RVF-600-1.8	600	1800	150	400	1300	770	approx 310	approx 310	approx 680	13	13	approx 830
RVF-600-2.4	600	2400	150	400	1900	770	approx 310	approx 430	approx 800	20	13	approx 880
RVF-600-3.0	600	3000	150	750	2000	770	approx 430	approx 560	approx 870	30	20	approx 880
RVF-600-4.0	600	4000	150	850	2900	770	approx 560	approx 560	approx 950	30	20	approx 940
RVF-600-5.0	600	5000	150	900	3700	770	approx 560	approx 560	approx 950	30	20	approx 1110
RVF-750-1.8	750	1800	180	400	1300	920	approx 300	approx 430	approx 750	20	13	approx 960
RVF-750-2.4	750	2400	180	400	1900	920	approx 420	approx 560	approx 870	30	20	approx 960
RVF-750-3.0	750	3000	180	750	2000	920	approx 560	v560	approx 950	30	30	approx 1040
RVF-750-4.0	750	4000	180	850	2900	920	approx 560	approx 560	approx 950	30	30	approx 1210
RVF-750-5.0	750	5000	180	900	3700	920	approx 580	approx 610	approx 1050	30	30	approx 1270

Tubular Trough

The Tubular Trough is ideally suited to materials which require airtight conveyance, or are inclined to generate dust.

Specifications

Standard Specifications

Model	Capacity (T/Hr)	Vibration per min. (Hz) 50Hz/60Hz	Gross weight (kg)	Rotary vibrating model (2 sets)	Applicable controlle
RVF-φ150-1.8	7	24.2/29.2	90	RV-14D	ORV-14×2R
RVF-φ150-2.4	7	24.2/29.2	150	RV-24D	ORV-24×2R
RVF-φ200-1.8	12	24.2/29.2	180	RV-24D	ORV-24×2R
RVF-φ200-2.4	12	24.2/29.2	240	RV-44D	ORV-44×2R
RVF-φ200-3.0	12	24.2/29.2	270	RV-44D	ORV-44×2R
RVF-φ300-2.4	25	24.2/29.2	270	RV-44D	ORV-44×2R
RVF-φ300-3.0	25	24.2/29.2	390	RV-74D	ORV-74×2R
RVF-φ300-4.0	25	12.1/14.6	450	RV-78B	ORV-78×2R
RVF-φ300-5.0	25	12.1/14.6	550	RV-78B	ORV-78×2R
RVF-φ400-2.4	40	24.2/29.2	410	RV-74D	ORV-74×2R
RVF-φ400-3.0	40	24.2/29.2	450	RV-74D	ORV-74×2R
RVF-φ400-4.0	40	12.1/14.6	550	RV-78B	ORV-78×2R
RVF-φ400-5.0	40	12.1/14.6	800	RV-158B	ORV-158×2R

1. Capacity is for conveying sand (apparent specific gravity 1.5, moisture content 4-6%) in a horizontal trough.
2. Controller is required for vibration motor 8P to avoid counter swing when stopping.
3. Vibration motor model may vary for special trough.

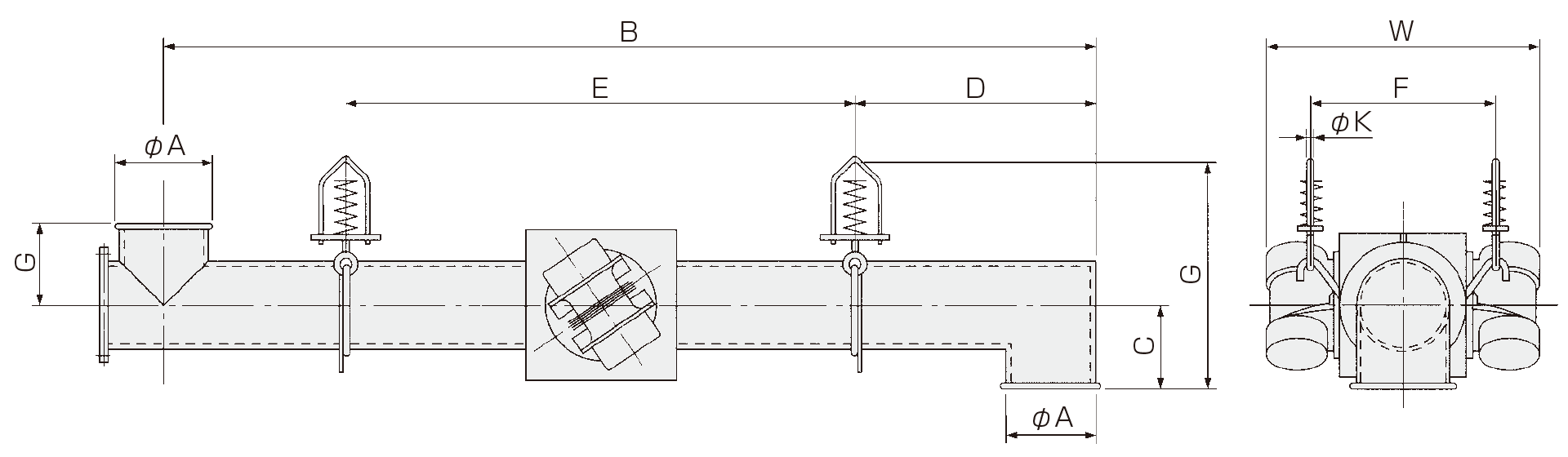

Outer Dimensions

Dimension Table

Unit: mm

Model	A	B	C	D	E	F	G	W	K
RVF-φ150-1.8	165	1600	150	250	1100	400	approx 560	approx 700	13
RVF-φ150-2.4	165	2200	150	250	1700	400	approx 560	approx 800	13
RVF-φ200-1.8	216	1500	200	250	1000	450	approx 610	approx 850	13
RVF-φ200-2.4	216	2100	200	250	1700	450	approx 620	approx 900	13
RVF-φ200-3.0	216	2700	200	300	2300	450	approx 620	approx 900	13
RVF-φ300-2.4	318	2000	250	300	1400	650	approx 720	approx 1000	13
RVF-φ300-3.0	318	2600	250	350	1900	650	approx 740	approx 1150	13
RVF-φ300-4.0	318	3600	250	650	2300	650	approx 740	approx 1150	13
RVF-φ300-5.0	318	4600	250	650	3300	650	approx 750	approx 1200	13
RVF-φ400-2.4	406	1900	300	300	1250	800	approx 840	approx 1250	13
RVF-φ400-3.0	406	2500	300	400	1700	800	approx 840	approx 1250	13
RVF-φ400-4.0	406	3500	300	500	2500	800	approx 850	approx 1300	13
RVF-φ400-5.0	406	4500	300	500	3500	800	approx 950	approx 1500	20
