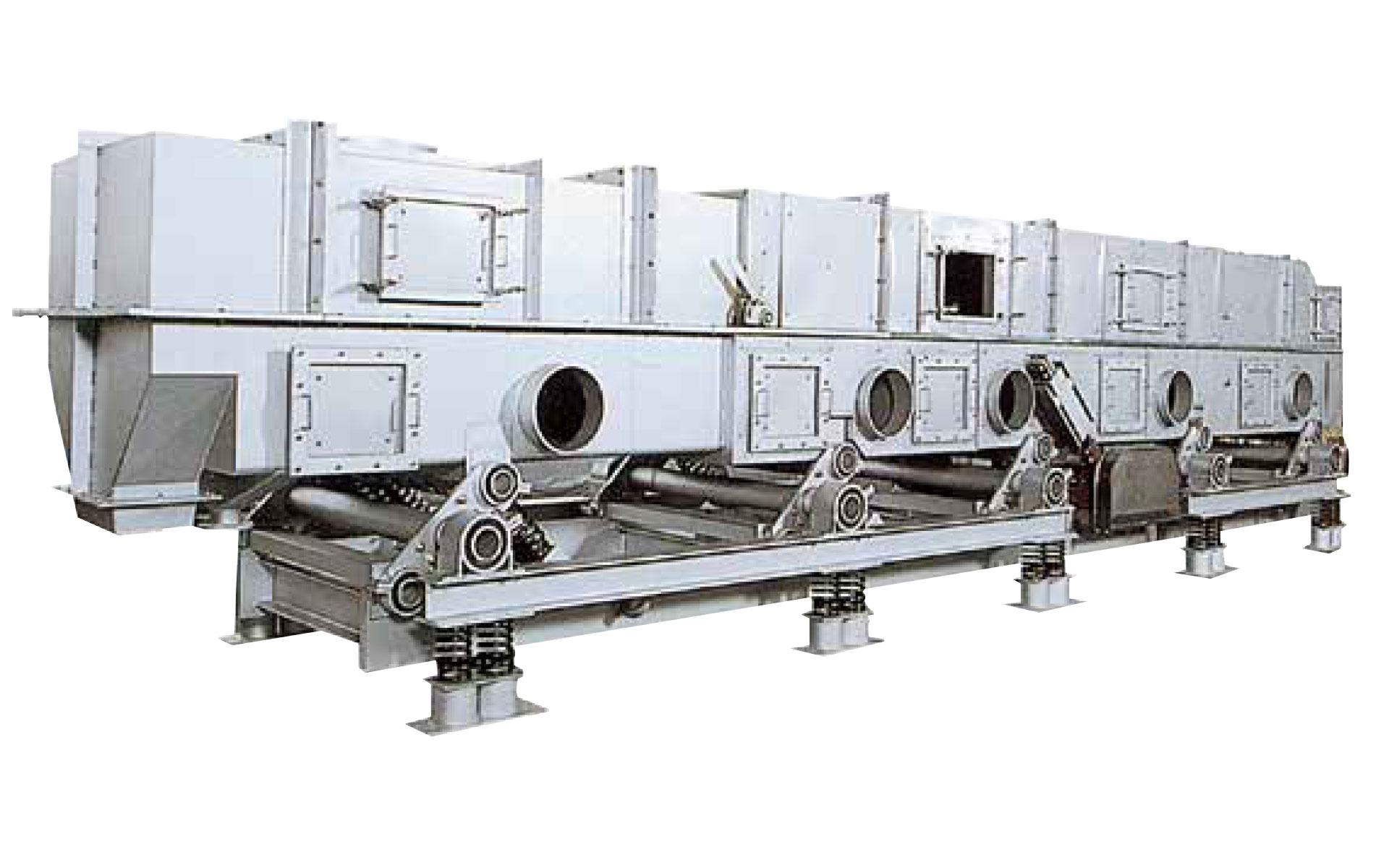

BM Type
Resonant Vibration Type

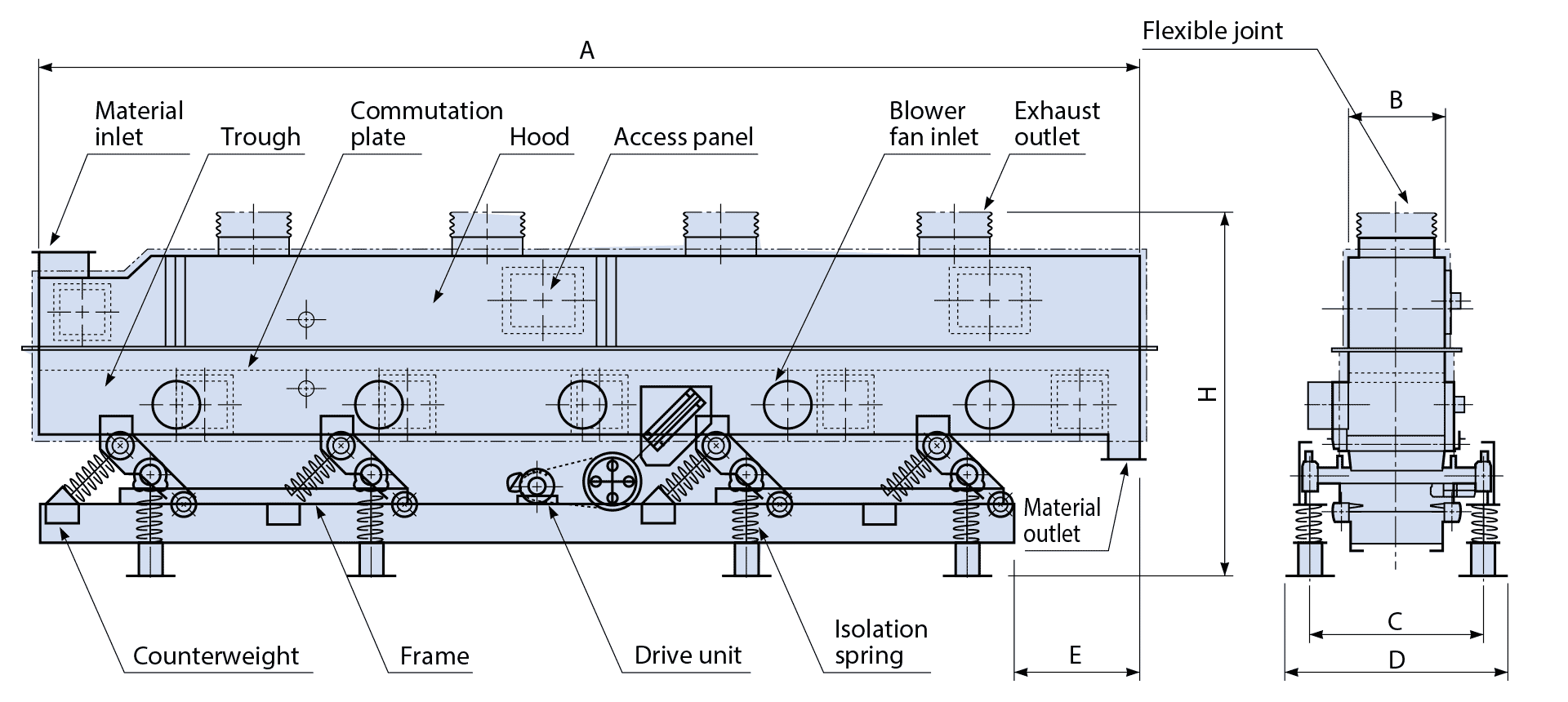

Outer Dimensions
Dimension Table
Unit: mm
| Model | A | B | C | D (MAX) |
E | H (Height） |
Gross weight (Kg) |
Motor output (kW) |
|---|---|---|---|---|---|---|---|---|
| BM-300-3.0 | 3000 | 300 | 800 | 1000 | 500 | 1775 |
1500 |
0.75×1 |
| BM-300-4.0 | 4000 | 300 | 800 | 1000 | 500 | 1775 | 1900 | 0.75×1 |
| BM-300-5.0 | 5000 | 300 | 800 | 1000 | 500 | 1775 | 2100 | 0.75×1 |
| BM-450-4.0 | 4000 | 450 | 950 | 1150 | 500 | 2075 | 2300 | 1.5×1 |
| BM-450-5.0 | 5000 | 450 | 950 | 1150 | 500 | 2075 | 3000 | 1.5×1 |
| BM-600-5.0 | 5000 | 600 | 1100 | 1300 |
800 |
2175 | 4000 | 2.2×1 |
| BM-600-6.0 | 6000 | 600 | 1100 | 1300 |
800 |
2175 | 4600 | 2.2×1 |
| BM-600-7.0 | 7000 | 600 | 1100 | 1300 |
800 |
2175 | 5000 | 2.2×1 |
| BM-600-8.0 | 8000 | 600 | 1100 | 1300 |
800 |
2175 | 5500 | 2.2×1 |
| BM-900-6.0 | 6000 | 900 | 1400 | 1600 |
800 |
2275 | 5900 | 3.7×1 |
| BM-900-7.0 | 7000 | 900 | 1400 | 1600 |
800 |
2275 | 6400 | 3.7×1 |
| BM-900-8.0 | 8000 | 900 | 1400 | 1600 |
800 |
2275 | 7500 | 3.7×1 |
| BM-1200-8.0 | 8000 | 1200 | 1700 | 1900 |
800 |
2375 | 8200 | 3.7×1 |
| BM-1500-8.0 | 8000 | 1500 | 2000 | 2200 |
800 |
2375 | 10000 | 5.5×1 |
| BM-2000-8.0 | 8000 | 2000 | 2500 | 2700 |
800 |
2475 | 13500 | 5.5×1 |
| BM-2000-10.0 | 10000 | 2000 | 2500 | 2700 |
800 |
2475 | 16000 | 5.5×1 |
| BM-2000-12.0 | 12000 | 2000 | 2500 | 2700 |
800 |
2475 | 17800 | 5.5×2 |
| BM-2000-14.0 | 14000 | 2000 | 2500 | 2700 |
800 |
2475 | 19500 | 5.5×2 |
| BM-2000-16.0 | 16000 | 2000 | 2500 | 2700 |
800 |
2475 | 21000 | 5.5×2 |
BM types are noted based on its functions as follows.
Having only drying function: DBM-xxx-x
Having only cooling function: CBM-xxx-x
Having both drying and cooling function: DCBM-xxx-x
