RV Type
Forced Vibration Type

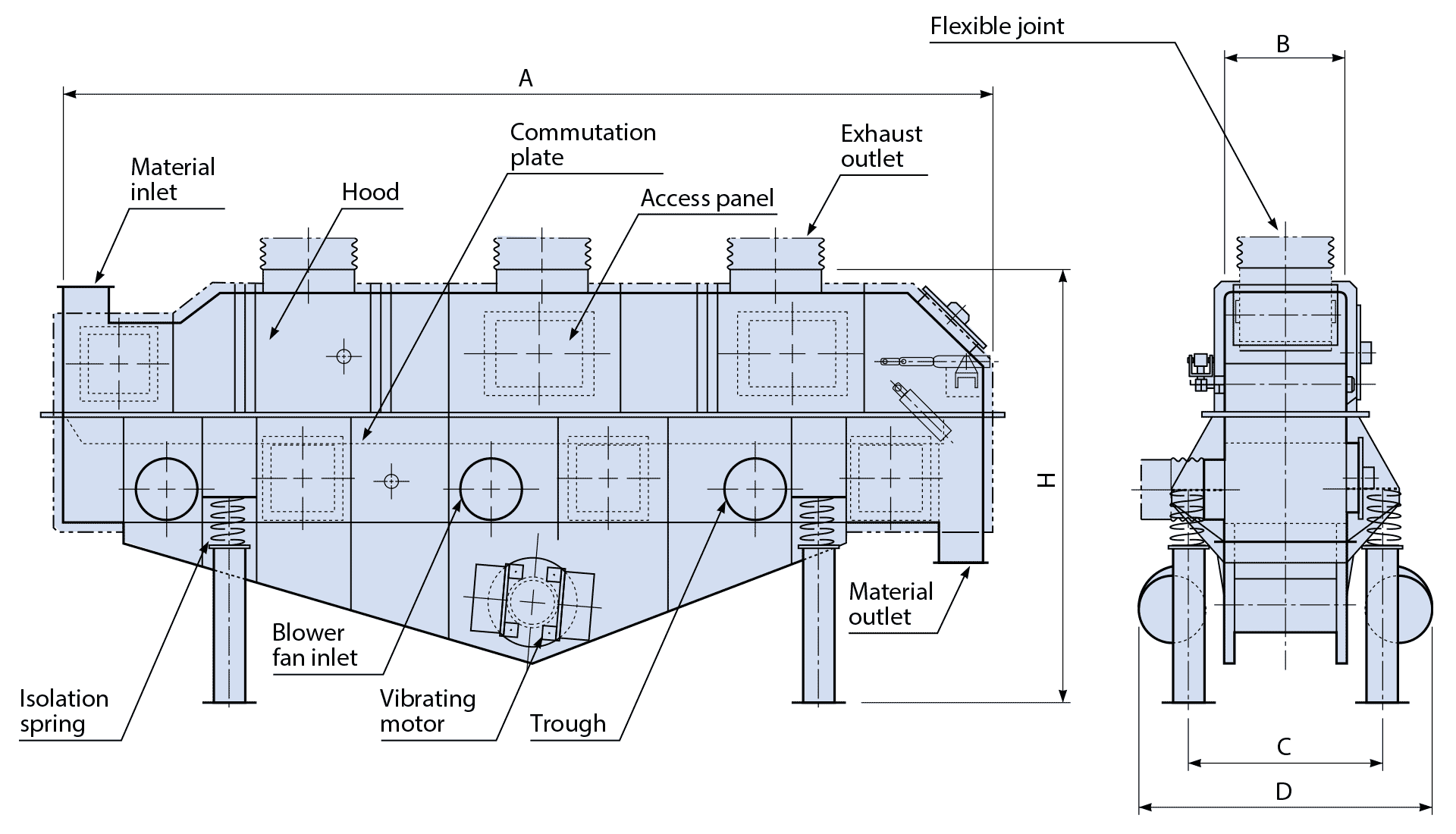

Outer Dimensions
Dimension Table
Unit: mm
| Model | A | B | C | D (MAX) |
H (Height） |
Gross weight (Kg) |
Motor output (kW) |
Motor type |
|---|---|---|---|---|---|---|---|---|
| RV-300-2.5 | 2500 | 300 | 600 | 740 | 1775 | 400 | 0.4×2 | RV-44D |
| RV-300-3.0 | 3000 | 300 | 600 | 740 | 1775 | 450 | 0.4×2 | RV-44D |
| RV-450-2.5 | 2500 | 450 | 800 | 950 | 2075 | 500 | 0.75×2 | RV-78B |
| RV-450-3.0 | 3000 | 450 | 800 | 950 | 2075 | 600 | 0.75×2 | RV-78B |
| RV-450-3.5 | 3500 | 450 | 800 | 950 | 2075 | 750 | 0.75×2 | RV-78B |
| RV-450-4.0 | 4000 | 450 | 800 | 950 | 2075 | 850 | 0.75×2 | RV-78B |
| RV-600-3.5 | 3500 | 600 | 950 | 1120 | 2175 | 1000 | 0.75×2 | RV-78B |
| RV-600-4.0 | 4000 | 600 | 950 | 1120 | 2175 | 1200 | 0.75×2 | RV-78B |
| RV-600-4.5 |
4500 |
600 | 950 | 1250 | 2175 | 1400 | 1.5×2 | RV-158B |
| RV-600-5.0 | 5000 | 600 | 950 | 1250 | 2175 | 1700 | 1.5×2 | RV-158B |
| RV-600-5.5 | 5500 | 600 | 950 | 1250 | 2175 | 2000 | 1.5×2 | RV-158B |
| RV-600-6.0 | 6000 | 600 | 950 | 1320 | 2175 | 2200 | 2.2×2 | RV-228B |
| RV-750-5.0 | 5000 | 750 | 1150 | 1320 | 2225 | 2500 | 2.2×2 | RV-228B |
| RV-750-5.5 | 5500 | 750 | 1150 | 1320 | 2225 | 3000 | 2.2×2 | RV-228B |
| RV-750-6.0 | 6000 | 750 | 1150 | 1320 | 2225 | 3300 | 2.2×2 | RV-228B |
| RV-900-5.5 | 5500 | 900 | 1300 | 1320 | 2275 | 3400 | 2.2×2 | RV-228B |
| RV-900-6.0 | 6000 | 900 | 1300 | 1320 | 2275 | 3700 | 2.2×2 | RV-228B |
RV types are noted based on its functions as follows.
Having only drying function: DRVF-xxx-x
Having only cooling function: CRVF-xxx-x
Having both drying and cooling function: DCRVF-xxx-x
