Vibrating Equipment

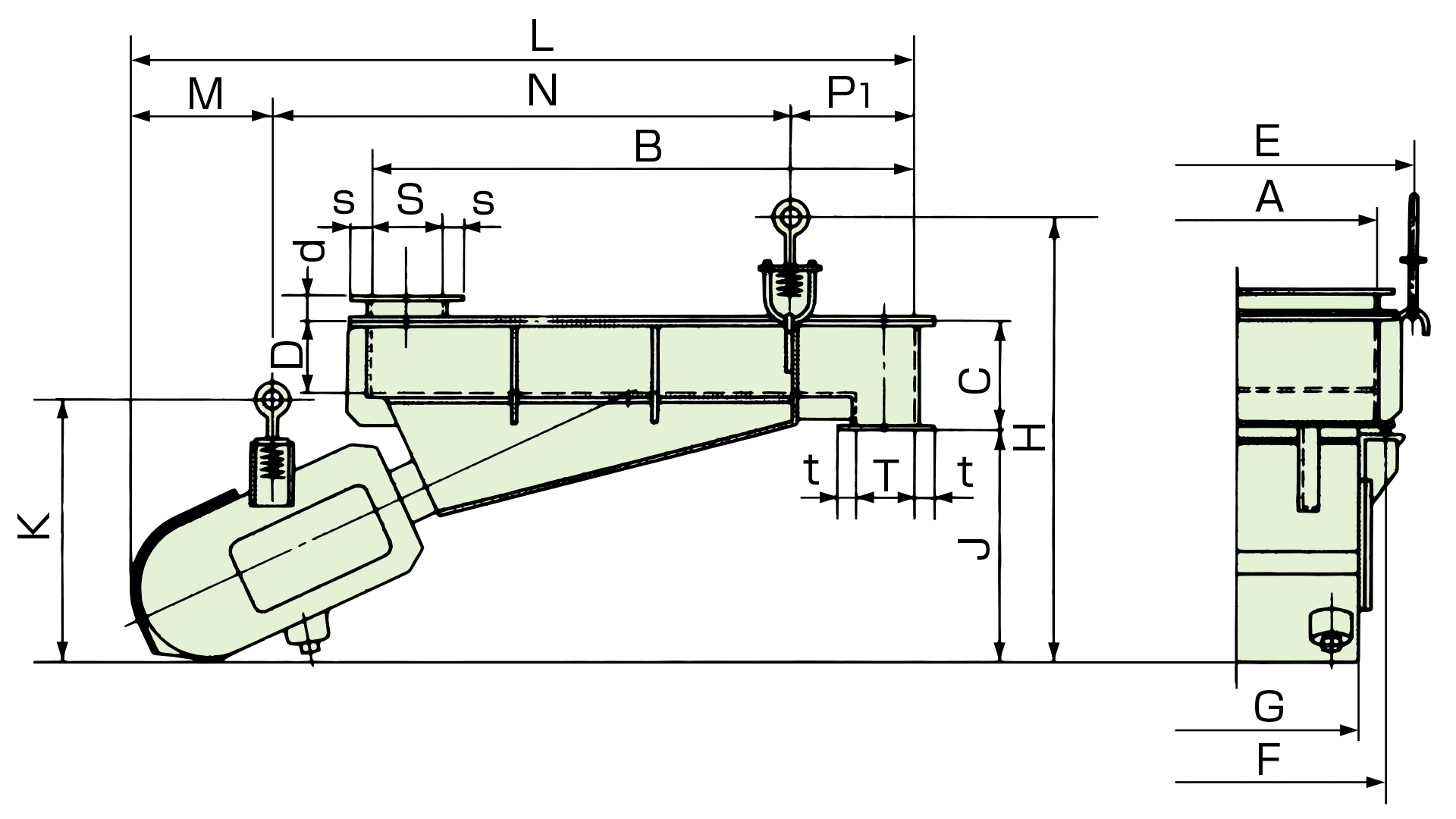

Covered Standard Trough with Inlet and Outlet (Suspension Type)

Dimension Table

Unit: mm

Model	A	B	C	D	d	E	F	G	H	J	K	L	M	N	P₁	S	s	T	t
F-152BDT	200	670	130	80	40	292	306	204	465	235	295	870	135	565	170	80	25	60	25
	200	655	130	80	40	292	306	204	465	235	295	870	135	565	170	°150	25	60	25
	150	570	130	80	40	242	306	204	465	235	295	820	135	565	120	80	25	60	25
	150	820	130	80	40	242	306	204	465	235	295	970	135	665	170	80	25	60	25
	120	870	130	80	40	212	306	204	465	235	295	970	135	665	170	80	25	60	25
F-212BDT	310	840	180	120	50	416	412	310	575	305	335	1125	180	765	180	100	30	80	30
	310	740	180	120	50	416	412	310	575	305	335	1025	180	665	180	°200	30	80	30
	310	840	180	120	50	416	412	310	575	305	335	1125	180	765	180	200	30	80	30
	200	1240	180	120	50	306	412	310	575	305	335	1350	180	870	300	200	30	80	30
	200	1400	220	120	60	306	412	310	575	265	335	1410	180	870	360	°200	-	°200	-
F-22BDT	350	1010	210	140	50	456	500	380	725	380	460	1380	190	940	250	120	30	100	30
	450	810	210	140	50	556	500	380	725	380	460	1330	190	940	200	°200	30	100	30
	310	1140	210	140	50	500	500	380	725	380	460	1475	190	1040	245	°200	30	80	30
	400	1000	190	120	50	496	500	380	700	380	460	1380	190	940	250	300	30	100	30
	280	1500	210	140	50	386	500	380	725	380	460	1630	190	1150	290	120	30	100	30
FH-22BDT	450	1010	210	140	50	556	500	380	725	380	460	1380	190	940	250	120	30	100	30
	450	1175	250	140	50	546	500	380	720	340	460	1505	190	1050	265	200	30	150	30
	300	1425	205	150	40	396	500	380	620	235	455	1670	200	1000	470	300	30	150	30
	310	1400	180	120	50	416	500	380	710	390	460	1580	190	1030	360	100	30	80	30
	280	1600	210	140	50	376	500	380	720	380	460	1680	190	1200	290	120	30	100	30
F-33BDT	550	1185	240	160	50	722	628	508	960	500	580	1730	315	1140	275	150	45	120	45
	700	835	240	160	50	872	628	508	920	460	570	1490	315	905	270	150	45	120	45
	450	1275	290	140	40	622	628	508	940	430	580	1605	315	990	300	150	45	°200	45
	380	1700	240	160	50	552	628	508	960	500	580	1995	315	1340	340	150	45	120	45
FH-33BDT	600	1185	240	160	50	772	666	546	980	520	600	1735	320	1140	275	150	45	120	45
	750	835	240	160	50	922	666	546	940	480	590	1495	320	905	270	150	45	120	45
	550	1485	240	160	50	722	666	546	980	520	600	1915	320	1270	325	350	70	120	45
	380	1800	240	160	50	552	666	546	980	520	600	2050	320	1340	390	150	45	120	45

Floor-mounted models are also available upon request.

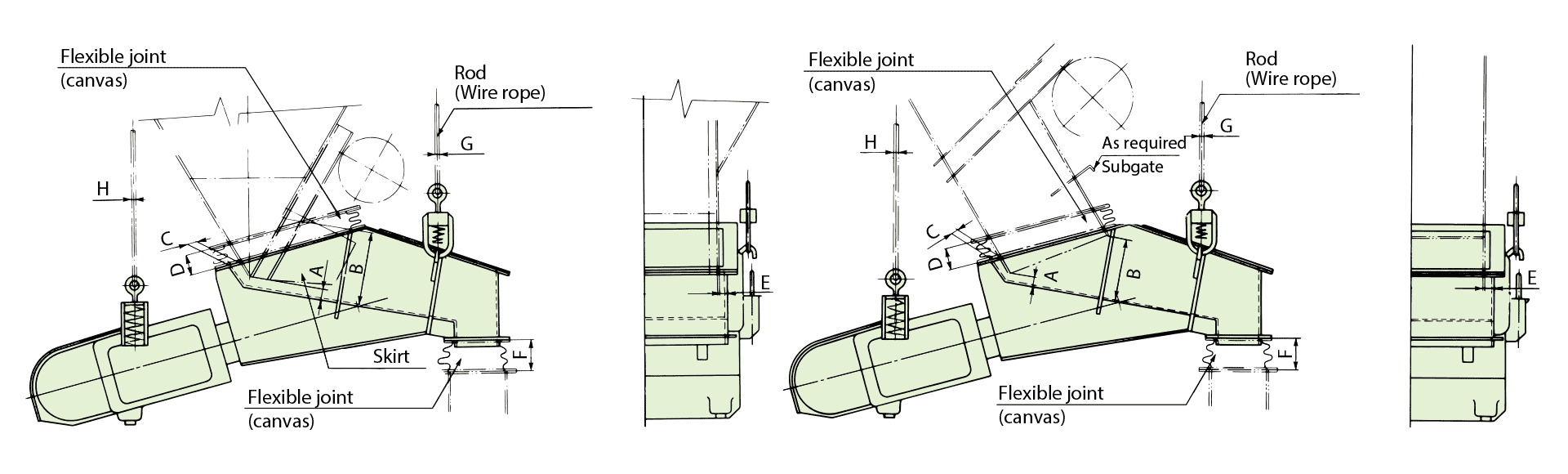

Hopper

Covered Standard Trough with Inlet and Outlet (Suspension Type)

Unit: mm

Model	A	B	C	D	E	F	G	H
F-212BDT	30	150	20	50	10	40	φ13 (φ10)	φ13 (φ10)
F-22BDT	30	180	20	50	10	40	φ13 (φ10)	φ16 (φ10)
FH-22BDT	30	200	20	50	10	40	φ13 (φ10)	φ16 (φ10)
F-33BDT	30	240	20	80	15	40	φ19 (φ12)	φ19 (φ12)
FH-33BDT	30	250	20	80	15	40	φ19 (φ12)	φ19 (φ12)
F-44BDT	50	300	30	80	20	60	φ25 (φ12)	φ25 (φ16)
F-45BDT	50	380	30	80	20	60	φ25 (φ12)	φ32 (φ16)
FH-45BDT	50	410	30	80	20	60	φ25 (φ12)	φ32 (φ16)

1. All the above dimensions are minimums (for the standard supply capacity).
2. Figures in parentheses are wire rope diameters.
3. Rod specifications apply to rods made of SS400 and wire rope specifications to wire ropes of JIS No.3 (19×6).
