Vibrating Equipment

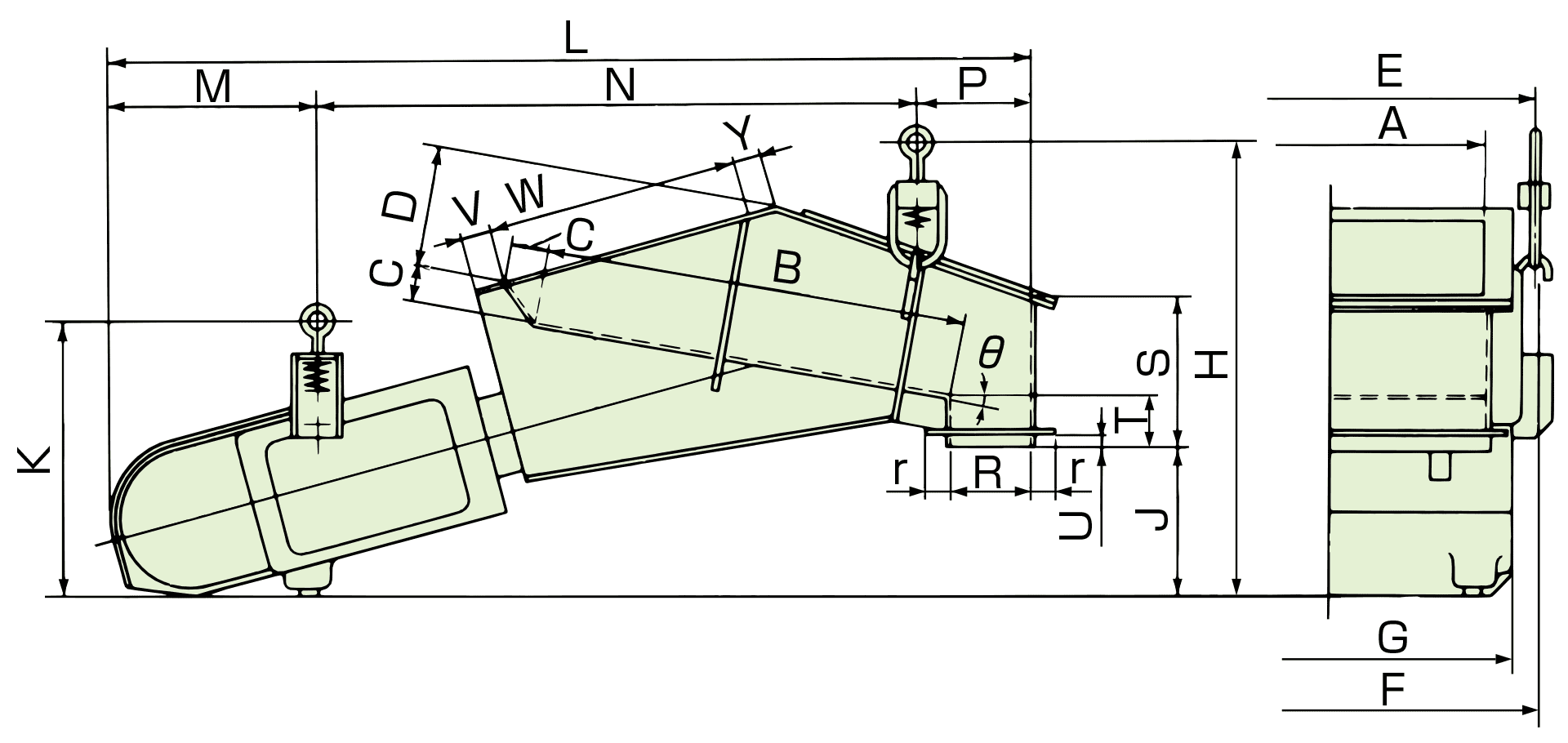

Covered Standard Trough with Outlet

Dimension Table

Unit: mm

Model	A	B	C	D	E	F	G	θ	H	J	K
F-212BDT	300	600	50	160	396	412	310	10°	490	140	320
	300	600	50	160	396	412	310	6°	545	200	330
	350	580	50	190	446	412	310	10°	500	140	320
F-22BDT	350	700	60	190	446	500	380	10°	600	190	450
F-22BDT	350	700	60	190	446	500	380	6°	680	260	460
FH-22BDT	400	700	60	190	496	500	380	10°	600	190	450
	400	700	60	190	496	500	380	6°	680	260	460
	450	700	60	190	546	500	380	10°	600	190	450
F-33BDT	500	850	80	240	672	628	508	10°	870	255	560
	500	850	80	240	672	628	508	6°	960	345	570
	500	850	80	240	672	628	508	10°	855	240	550
FH-33BDT	550	850	80	240	722	666	546	10°	890	275	580
	550	850	80	240	722	666	546	6°	980	365	590
	550	850	80	240	722	666	546	10°	900	265	575
F-44BDT	700	950	80	270	920	954	838	10°	1020	330	620
	700	950	80	270	920	954	838	6°	1130	450	640
	700	950	80	270	920	958	838	10°	1050	330	615
F-45BDT	850	1150	100	320	1072	1142	840	10°	1140	360	820
	850	1150	100	320	1072	1142	840	6°	1270	490	840
	850	1150	100	320	1072	1142	840	10°	1175	360	825
FH-45BDT	900	1250	120	350	1122	1143	840	10°	1160	340	810
	900	1250	120	350	1122	1143	840	6°	1300	480	840
	900	1250	120	350	1122	1143	840	10°	1240	375	825

Model	L	M	N	P	R	r	S	T	U	V	W	Y
F-212BDT	1095	210	705	180	120	30	150	70	15	30	350	35
	1080	205	685	190	120	30	160	70	15	30	350	35
	1120	210	730	180	140	30	160	70	15	30	380	35
F-22BDT	1340	220	940	180	140	35	175	80	15	30	400	50
F-22BDT	1320	210	920	190	140	35	185	80	15	30	400	50
FH-22BDT	1340	220	940	180	140	35	185	80	15	30	400	50
	1320	210	920	190	140	35	185	80	15	30	400	50
	1340	220	940	180	140	35	175	80	15	30	400	50
F-33BDT	1660	345	1100	215	140	44	280	100	20	45	510	50
	1655	340	1080	235	140	45	290	100	20	45	510	50
	1715	355	1105	255	180	45	280	100	20	45	510	50
FH-33BDT	1665	350	1100	215	140	44	280	100	20	45	510	50
	1660	340	1085	235	140	45	290	100	20	45	510	50
	1735	355	1110	270	200	45	310	100	20	45	510	50
F-44BDT	2075	465	1355	255	180	56	340	120	30	65	560	60
	2050	455	1315	280	180	56	350	120	30	65	560	60
	2120	470	1350	300	220	60	340	120	30	65	560	60
F-45BDT	2280	470	1540	270	200	60	440	140	30	65	690	60
	2265	450	1520	295	200	60	450	140	30	65	690	60
	2340	475	1540	325	280	60	440	140	30	65	690	60
FH-45BDT	2325	470	1550	305	200	60	470	140	30	65	760	60
	2300	460	1515	325	200	60	480	140	30	65	760	60
	2485	475	1645	365	300	60	470	140	30	65	760	60

Cover material is normally made of canvas. Other materials are also available upon request.

Hopper

Covered Trough with Inlet and Outlet

Unit: mm

Model	A	B	C	D	E	F	G	H
F-212BDT	30	150	20	50	10	40	φ13 (φ10)	φ13 (φ10)
F-22BDT	30	180	20	50	10	40	φ13 (φ10)	φ16 (φ10)
FH-22BDT	30	200	20	50	10	40	φ13 (φ10)	φ16 (φ10)
F-33BDT	30	240	20	80	15	40	φ19 (φ12)	φ19 (φ12)
FH-33BDT	30	250	20	80	15	40	φ19 (φ12)	φ19 (φ12)
F-44BDT	50	300	30	80	20	60	φ25 (φ12)	φ25 (φ16)
F-45BDT	50	380	30	80	20	60	φ25 (φ12)	φ32 (φ16)
FH-45BDT	50	410	30	80	20	60	φ25 (φ12)	φ32 (φ16)

1. All the above dimensions are minimums (for the standard supply capacity).
2. Figures in parentheses are wire rope diameters.
3. Rod specifications apply to rods made of SS400 and wire rope specifications to wire ropes of JIS No.3 (19×6).
