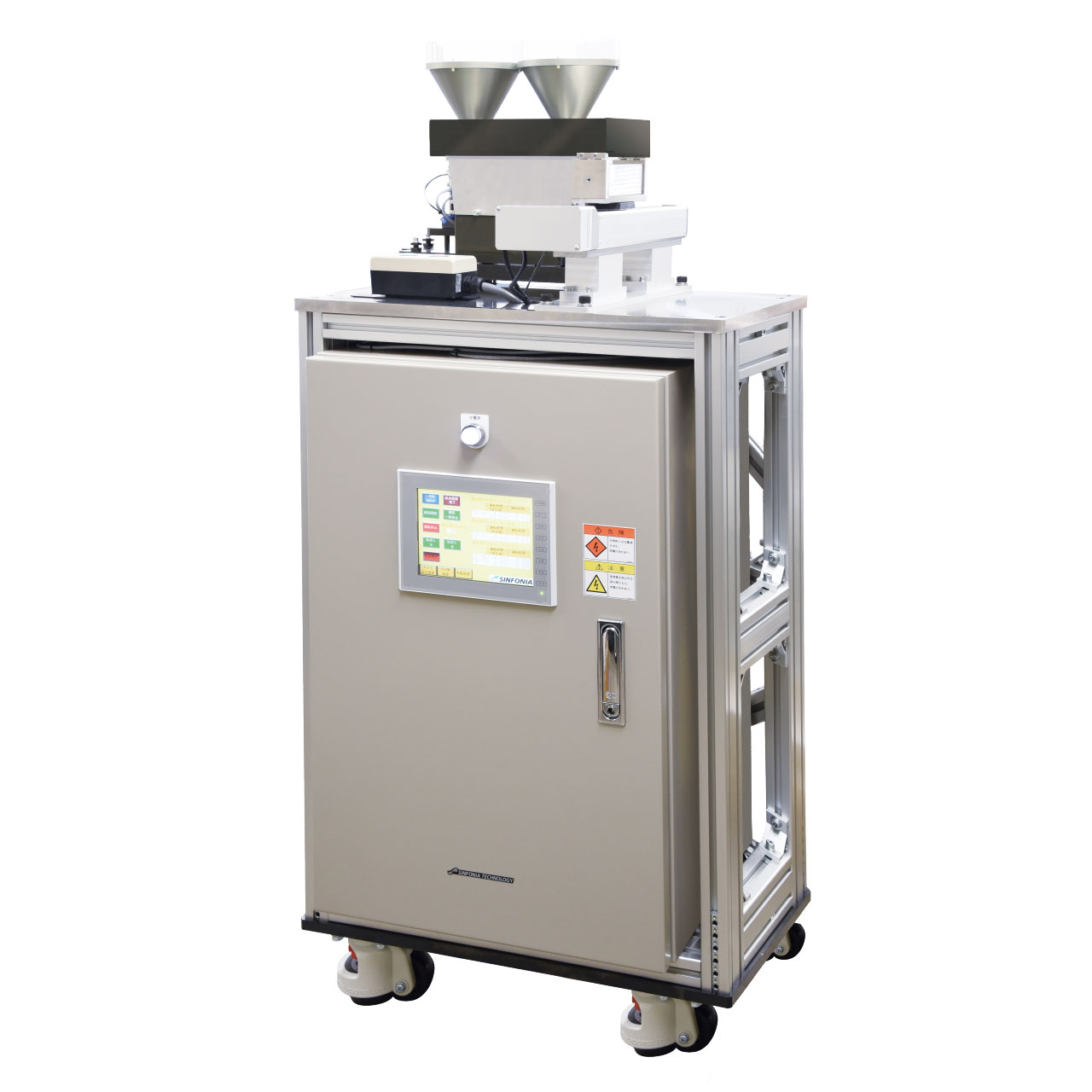

Micro Fixed-Quantity Feeder

Realizes continuous feeding and discharging with micro-quantitative feeding of high-functional materials!

Electromagnetic feeders utilize the transport phenomenon caused by electromagnetic vibration and are the most effective feeders for cutting and feeding all types of materials, from fine powders to large lumps. The F type electromagnetic feeder is available in two types: the standard type, in which the electromagnetic drive is mounted at the rear bottom of the trough, and the upper drive type, in which the drive is mounted at the front top of the trough.

supply volume

0.11g±0.01g

Features

• Achieves significant efficiency improvements
  Integrated control from the start of powder feeding to the transfer of parts after feeding reduces waiting time, etc.
• Capable of continuous fixed-quantity feeding

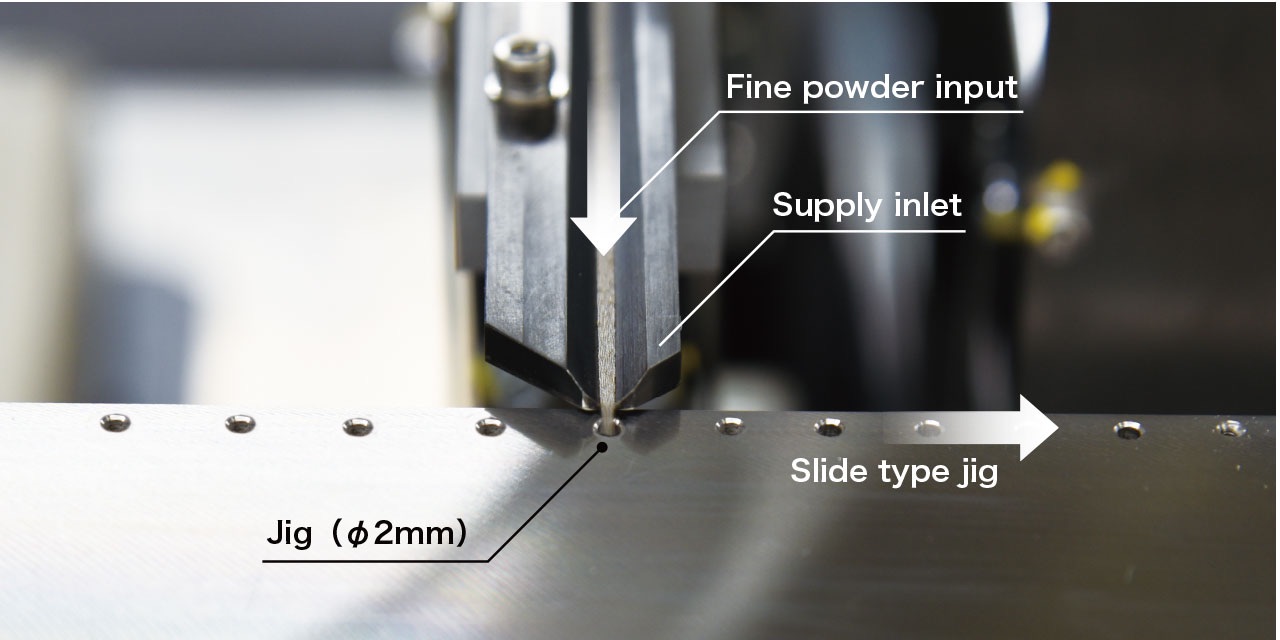

  Sliding the feeding jig enables continuous fixed-quantity feeding.
• High-precision batch control
  Feeding amount is measured in the feeding time to achieve a feeding amount of 0.11g ± 0.01g*.
  (In case of feeding to a φ2mm dia. jig)
